Front view — side by side at true scale

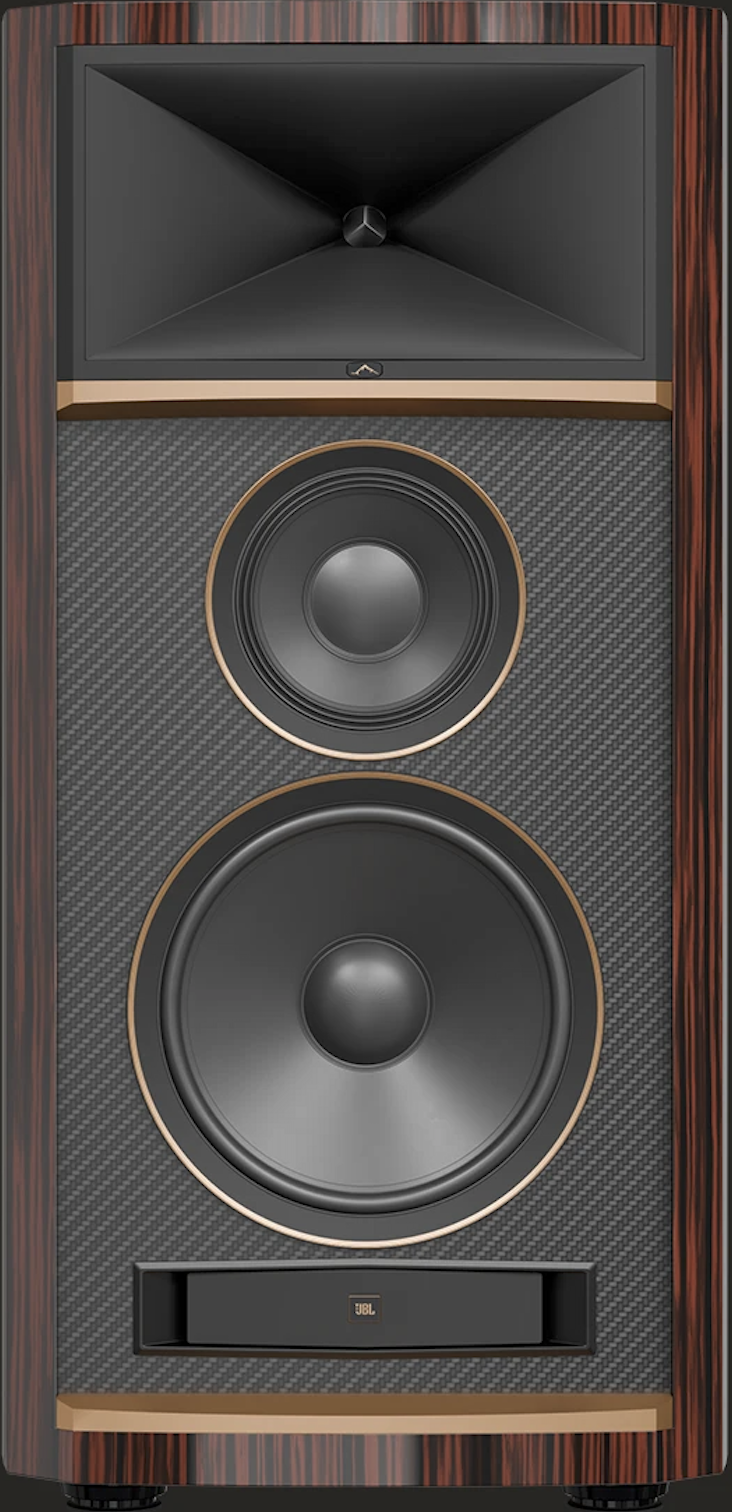

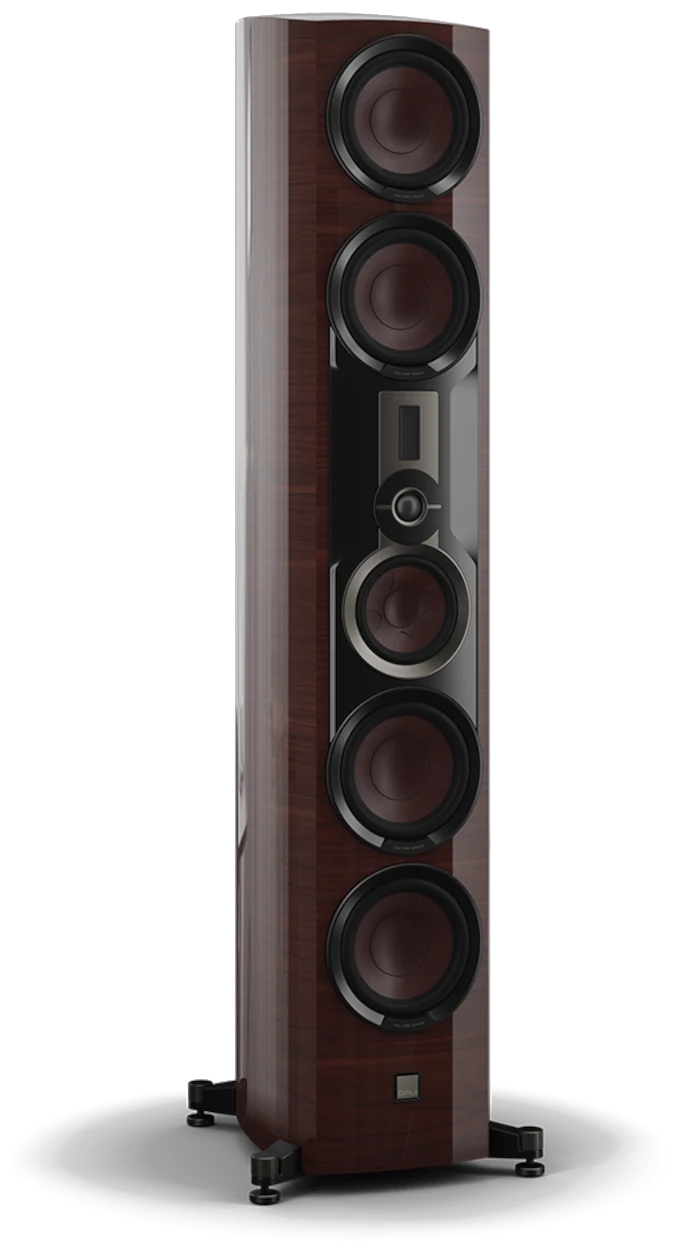

AJBL Summit K2BDali Epikore 11
Click either cabinet to swap A ↔ B · Reference height: 1602 mm (160.2 cm) · 1 mm = 0.35 px
| A | B | |
|---|---|---|
| Manufacturer | JBL | Dali |
| Model | JBL Summit K2 | Dali Epikore 11 |
| Height | 1280 mm | 1602 mm |
| Width | 620 mm | 433 mm |
| Depth | 459 mm | 554 mm |
| Weight | 108.4 kg | 72 kg |
| Enclosure | bass-reflex-rear | bass-reflex-rear |
| Drivers | 3× 38 mm tweeter (Teonex annular-ring diaphragm), 1× 250 mm midrange (Hybrid Carbon Cellulose Composite (HC4) cone), 1× 380 mm woofer (Hybrid Carbon Cellulose Composite (HC4) cone) | 1× 55 mm super-tweeter (planar magnetostatic), 1× 35 mm tweeter (soft woven-fabric dome), 1× 165 mm midrange (Clarity Cone paper and wood-fibre, SMC Gen-2 motor), 4× 200 mm woofer (Clarity Cone paper and wood-fibre, SMC Gen-2 motor) |
| Frequency — low | 24.6 Hz | 29 Hz |
| Frequency — high | 23500 Hz | 34000 Hz |
| Sensitivity | 92 dB | 89 dB |
| Impedance | 4 Ω | 4 Ω |
| Recommended amp | 25–600 W | 40–1000 W |
| MAP (USD) | — | $60,000 / pair |
| Brand website | jbl.com ↗ | dali-speakers.com ↗ |
| Product page | Open product page ↗ | Open product page ↗ |
Larger value highlighted in green. For low-frequency extension, lower Hz = greater bass reach, so the deeper side is highlighted.
