TrueScaleAudio
Compare speakers at true scale
Pick two speakers and see them side by side at their real-world size.

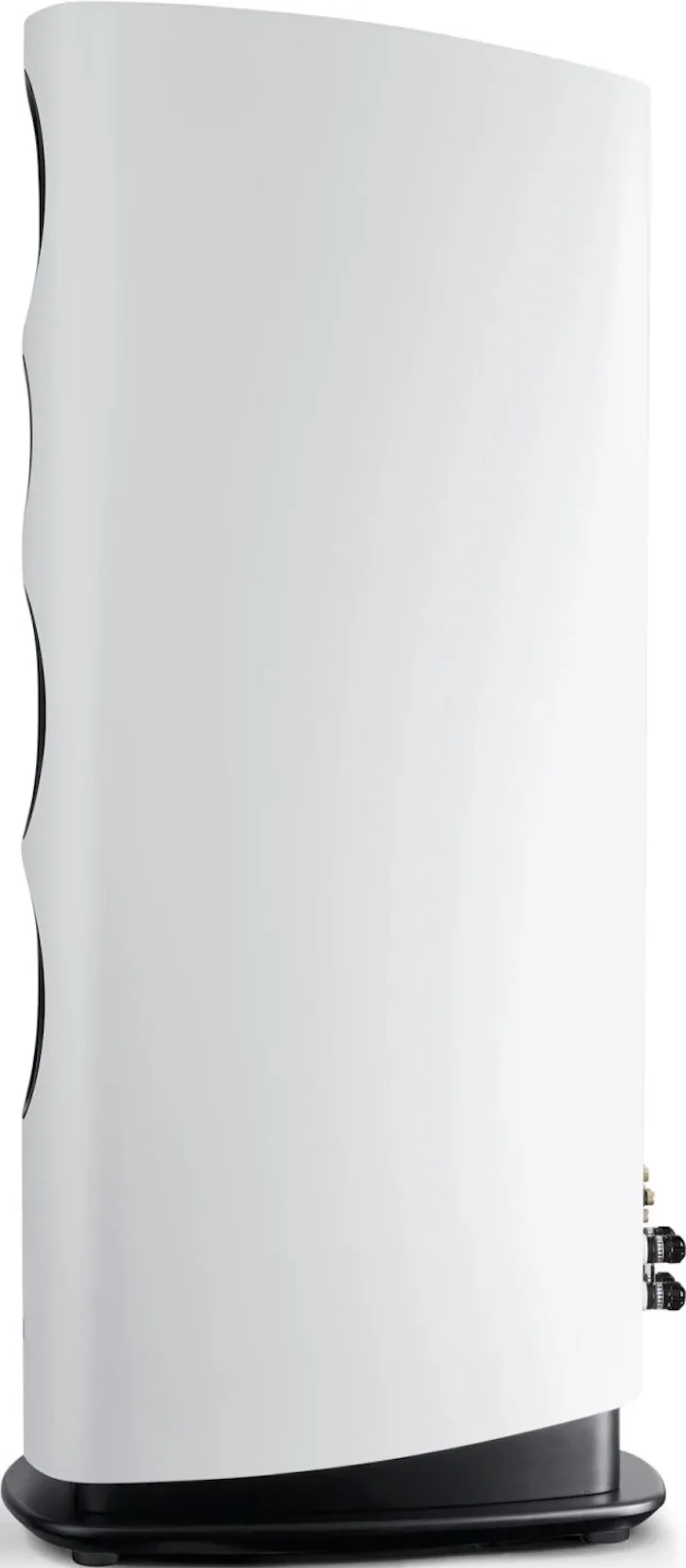

Profile view — at true scale
Click either cabinet to swap A ↔ B · Reference height: 1050 mm (105.0 cm) · 1 mm = 0.53 px
T+A Criterion S 230vsCanton Reference 5
The T+A Criterion S 230 stands 105.0 cm tall — about 3.0 cm more than the Canton Reference 5 at 102.0 cm. On footprint the T+A Criterion S 230 is the wider cabinet (31.0 cm versus 28.7 cm). At 88 dB against 87 dB, the Canton Reference 5 is the easier load to drive and plays louder from the same amplifier. The Canton Reference 5 reaches deeper in the bass, down to 21 Hz versus 29 Hz. The T+A Criterion S 230 is a transmission line and the Canton Reference 5 is down-firing ported. Both land in a similar price bracket, around $11,495 a pair.
| A | B | |
|---|---|---|
| Manufacturer | T+A | Canton |
| Model | Criterion S 230 | Reference 5 |
| HiFi ladder position | #95 of 276 floorstander | #72 of 276 floorstander |
| Height | 1050 mm | 1020 mm |
| Width | 310 mm | 287 mm |
| Depth | 430 mm | 460 mm |
| Weight | 37.5 kg | 36 kg |
| Enclosure | transmission-line | bass-reflex-down |
| Drivers | 2× 170 mm woofer (aluminium), 2× 120 mm midrange (aluminium), 1× 25 mm tweeter (magnesium dome) | 1× 25 mm tweeter (aluminium-oxide ceramic dome), 1× 174 mm midrange (Black Ceramic Tungsten cone), 2× 174 mm woofer (Black Ceramic Tungsten cone) |
| Frequency — low | 29 Hz | 21 Hz |
| Frequency — high | 45000 Hz | 40000 Hz |
| Sensitivity | 87 dB | 88 dB |
| Impedance | 4 Ω | 4 Ω |
| Recommended amp | — | — |
| MAP (USD) | $11,990 / pair | $11,000 / pair |
| Where to buy | Check availability ↗ | Check availability ↗ |
| Brand website | ta-hifi.de ↗ | canton.de ↗ |
| Product page | Open product page ↗ | Open product page ↗ |
Larger value highlighted in green. For low-frequency extension, lower Hz = greater bass reach, so the deeper side is highlighted.
