Front view — side by side at true scale

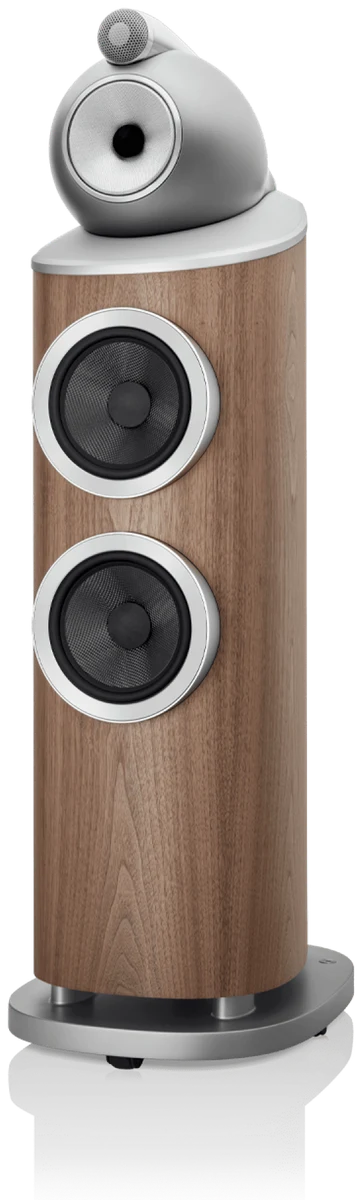

ABowers & Wilkins 803 D5BBowers & Wilkins 803 D4
Click either cabinet to swap A ↔ B · Reference height: 1165 mm (116.5 cm) · 1 mm = 0.48 px
| A | B | |
|---|---|---|
| Manufacturer | Bowers & Wilkins | Bowers & Wilkins |
| Model | Bowers & Wilkins 803 D5 D5 | Bowers & Wilkins 803 D4 D4 |
| Height | 1165 mm | 1165 mm |
| Width | 344 mm | 338 mm |
| Depth | 499 mm | 511 mm |
| Weight | 63.7 kg | 62.15 kg |
| Enclosure | bass-reflex-front | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (diamond dome), 1× 130 mm midrange (Continuum cone with FST surround), 2× 180 mm woofer (Aerofoil cone) | 1× 25 mm tweeter (diamond dome), 1× 130 mm midrange (Continuum cone with FST surround), 2× 180 mm woofer (Aerofoil cone) |
| Frequency — low | 19 Hz | 19 Hz |
| Frequency — high | 28000 Hz | 28000 Hz |
| Sensitivity | 90 dB | 90 dB |
| Impedance | 8 Ω | 8 Ω |
| Recommended amp | 50–1000 W | 50–500 W |
| MAP (USD) | — | $27,000 / pair |
| Brand website | bowerswilkins.com ↗ | bowerswilkins.com ↗ |
| Product page | Open product page ↗ | Open product page ↗ |
Larger value highlighted in green. For low-frequency extension, lower Hz = greater bass reach, so the deeper side is highlighted.
