Product description

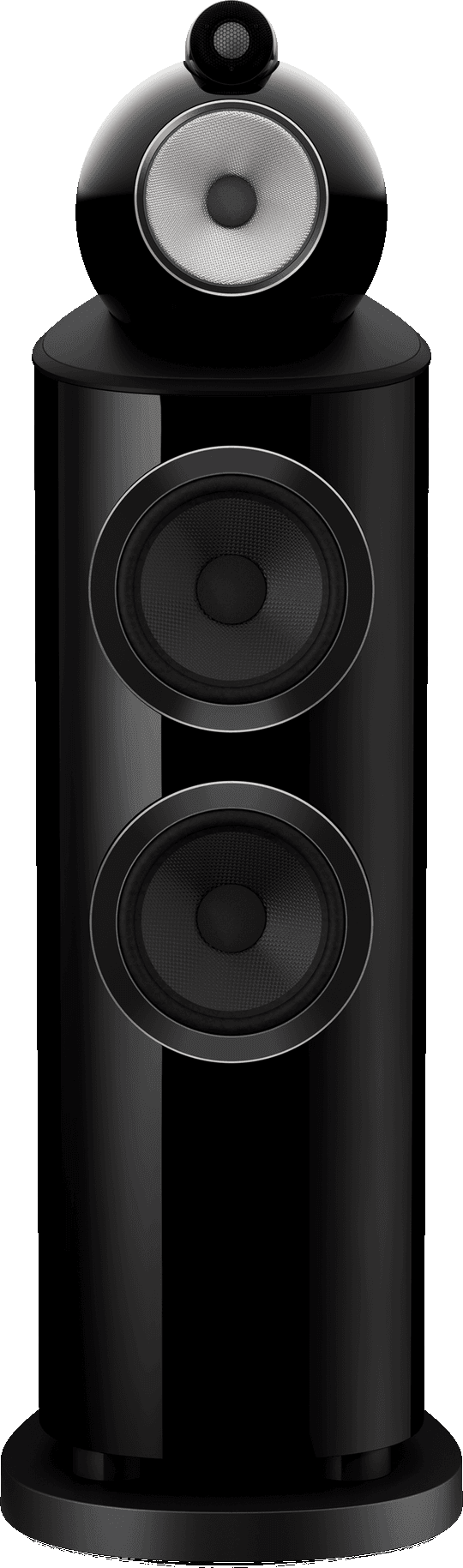

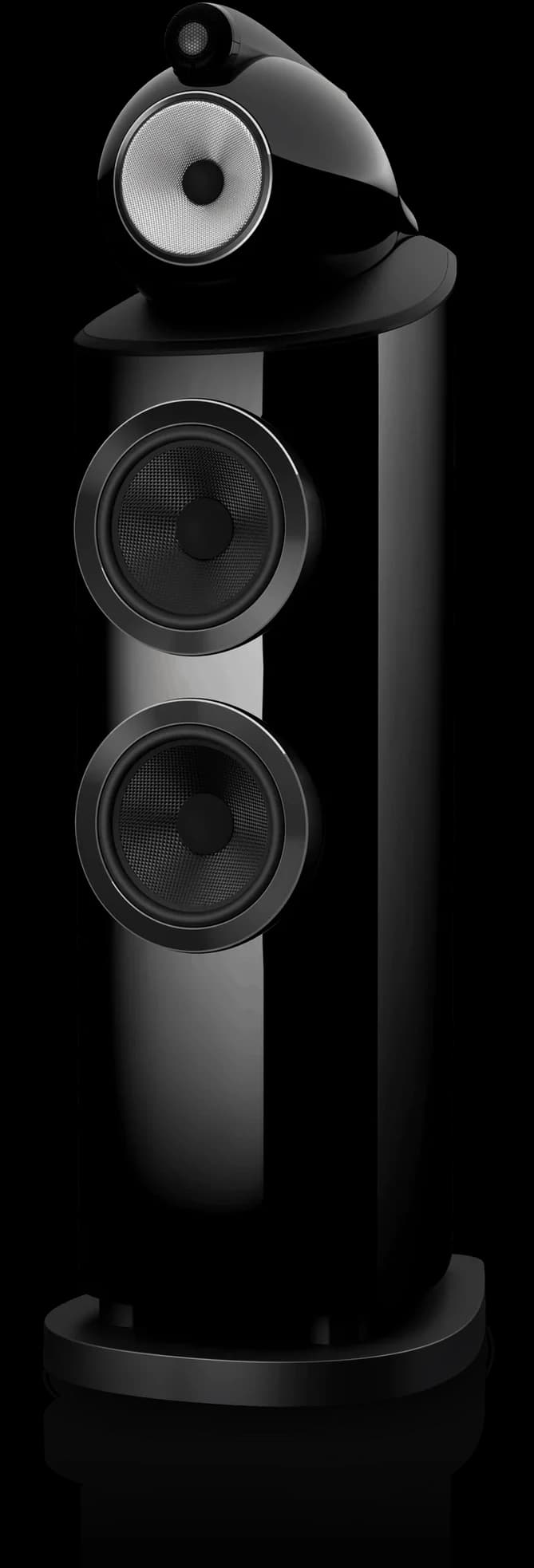

Most compact 800 Series Diamond model to retain the iconic Turbine Head. Three-way floorstander with a 25 mm diamond dome tweeter, 5" Continuum FST midrange and twin 7" Aerofoil woofers in a Matrix-braced cabinet with Space Frame Bracing.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #110 of 175 floorstander |
| Power | Passive |
| Height | 1165 mm |
| Width | 344 mm |
| Depth | 499 mm |
| Weight | 63.7 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (diamond dome), 1× 130 mm midrange (Continuum cone with FST surround), 2× 180 mm woofer (Aerofoil cone) |
| Frequency response | 19–28000 Hz (±3 dB) |
| Sensitivity | 90 dB |
| Impedance | 8 Ω (min 3 Ω) |
| Recommended amp | 50–1000 W |
| Manufacturer | bowerswilkins.com ↗ |
| Product page | Open product page ↗ |
