Bowers & Wilkins · 800 · Floorstander

803 D4

Product description

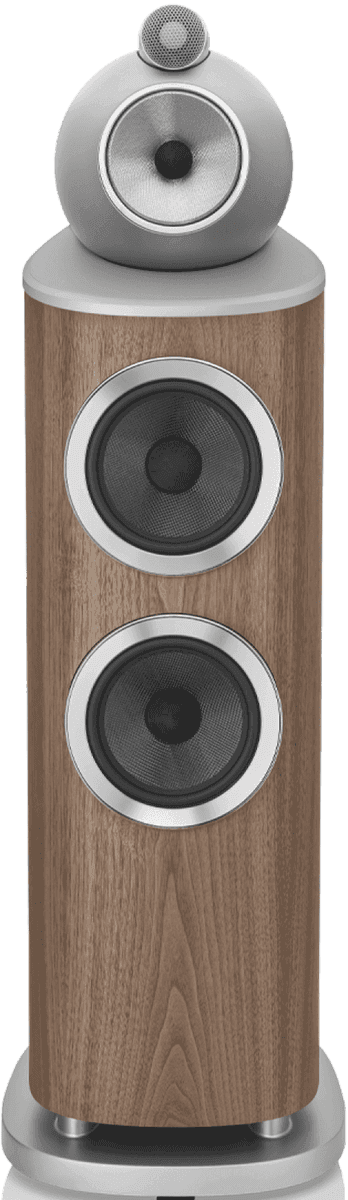

The mid-size three-way of the 800 Diamond range and the smallest to keep the stand-alone Turbine head: a diamond-dome Tweeter-on-Top with a 5-inch Continuum-cone FST midrange over twin 7-inch Aerofoil woofers in the curved Matrix cabinet. Reaches 19 Hz — full 800-series scale sized for medium-to-large rooms.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
803 D419 Hz28 kHz90 dB8 Ω647 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#412 of 648 floorstander
PowerPassive
Height1165 mm
Width338 mm
Depth511 mm
Footprint1727 cm²
Space taken201.2 L
Weight62.15 kg
EnclosureBass reflex, down-firing port
Drivers1× 25 mm tweeter (diamond dome), 1× 130 mm midrange (Continuum cone with FST surround), 2× 180 mm woofer (Aerofoil cone)
Frequency response19–28000 Hz (±3 dB)
Sensitivity90 dB
Impedance8 Ω (min 3 Ω)
Recommended amp50–500 W
MAP (USD)$27,000 / pair
Where to buyCheck availability ↗
Manufacturerbowerswilkins.com ↗
Product pageOpen product page ↗
