AudioSolutions · Vantage · Floorstander

Vantage B 5th Anniversary

Product description

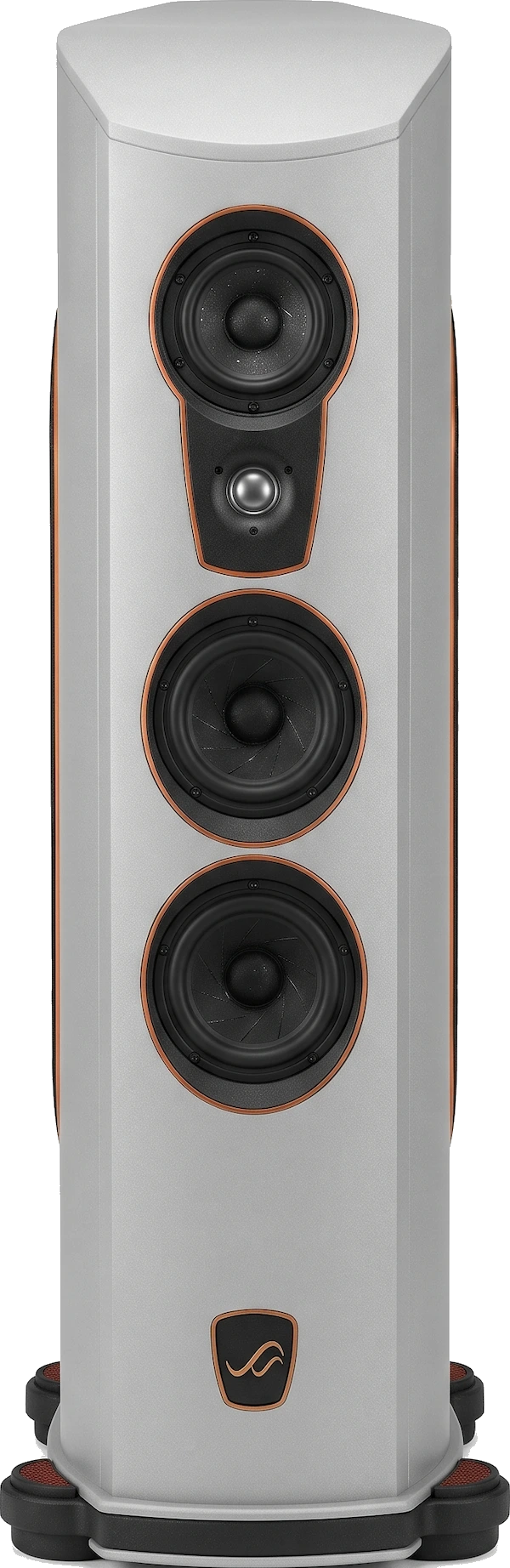

The Vantage that is a standmount and a floorstander at once: a three-way head with a 220 mm woofer firing down out of its base, permanently mounted on a sculpted column that takes the whole thing to 1,281 mm. Beryllium dome and an Egyptian Papyrus midrange above, crossing at 150 Hz and 8 kHz. AudioSolutions publishes one set of dimensions because it is sold as one object.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Vantage B 5th Anniversary30 Hz30 kHz90 dB4 Ω612 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 640 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 592 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#513 of 640 floorstander
PowerPassive
Height1281 mm
Width392 mm
Depth553 mm
Footprint2168 cm²
Space taken277.7 L
Weight50 kg
EnclosureBass reflex, rear port
Drivers1× 25 mm tweeter (beryllium dome), 1× 170 mm midrange (Egyptian Papyrus cone), 1× 220 mm woofer (paper cone)
Crossover frequency150 / 8000 Hz
Frequency response30–30000 Hz
Sensitivity90 dB
Impedance4 Ω
Recommended amp30–400 W
Where to buyCheck availability ↗
Manufactureraudiosolutions.lt ↗
Product pageOpen product page ↗
