ATC · Special Edition · Floorstander

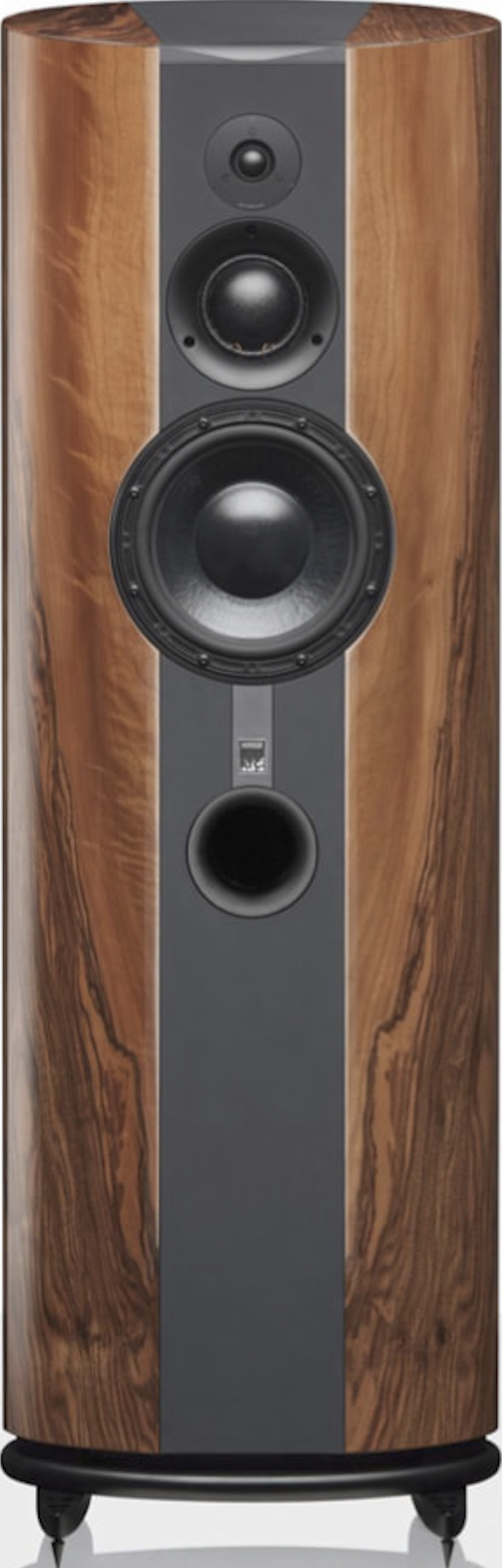

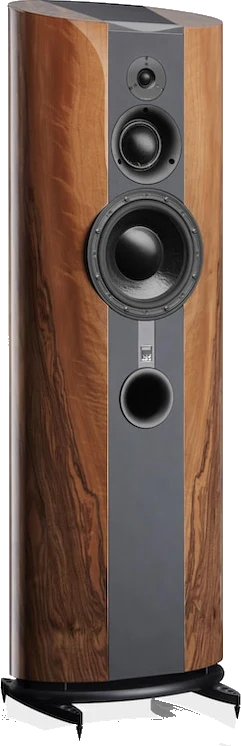

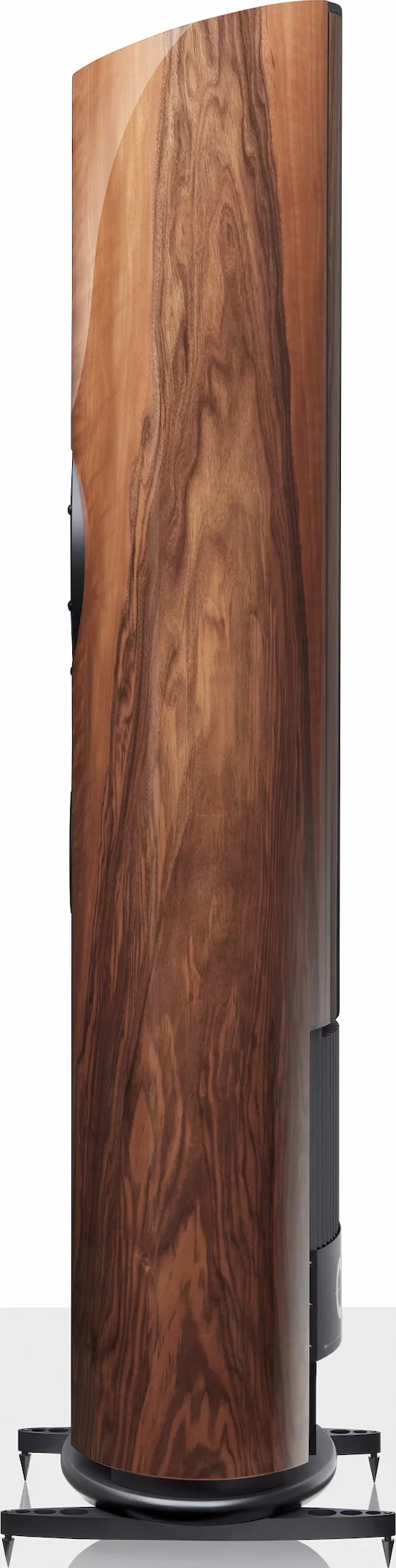

EL50
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
A flagship special-edition active tower built around ATC's legendary trio: the SM75-150S Superdome midrange, a 25 mm S-Spec tweeter and a 234 mm Super Linear bass driver, in a curved laminated cabinet. On-board grounded-source Class A/B tri-amplification (200 W bass, 100 W mid, 50 W treble) with active 4th-order crossovers, fed from a single balanced XLR.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #333 of 364 floorstander |
| Power | Active |
| Height | 1421 mm |
| Width | 455 mm |
| Depth | 352 mm |
| Weight | 63 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 75 mm midrange (soft dome), 1× 234 mm woofer (cone) |
| Crossover frequency | 380 / 3500 Hz |
| Frequency response | 32–25000 Hz |
| Amplification (per driver) | tweeter 50 W (class AB) · midrange 100 W (class AB) · woofer 200 W (class AB) |
| Total amp power | 350 W |
| Max SPL @ 1 m | 112 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
