ATC · Classic · Floorstander

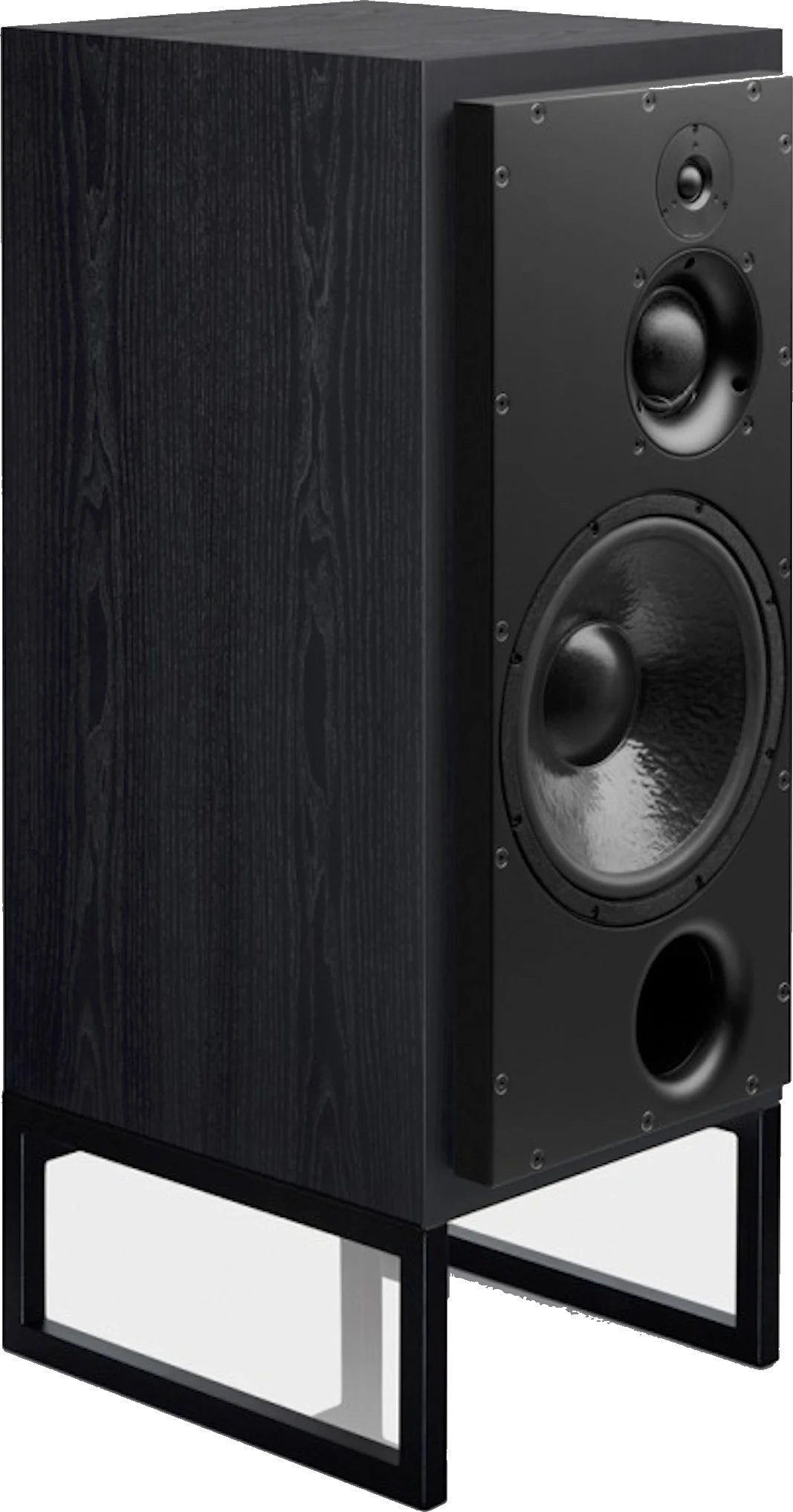

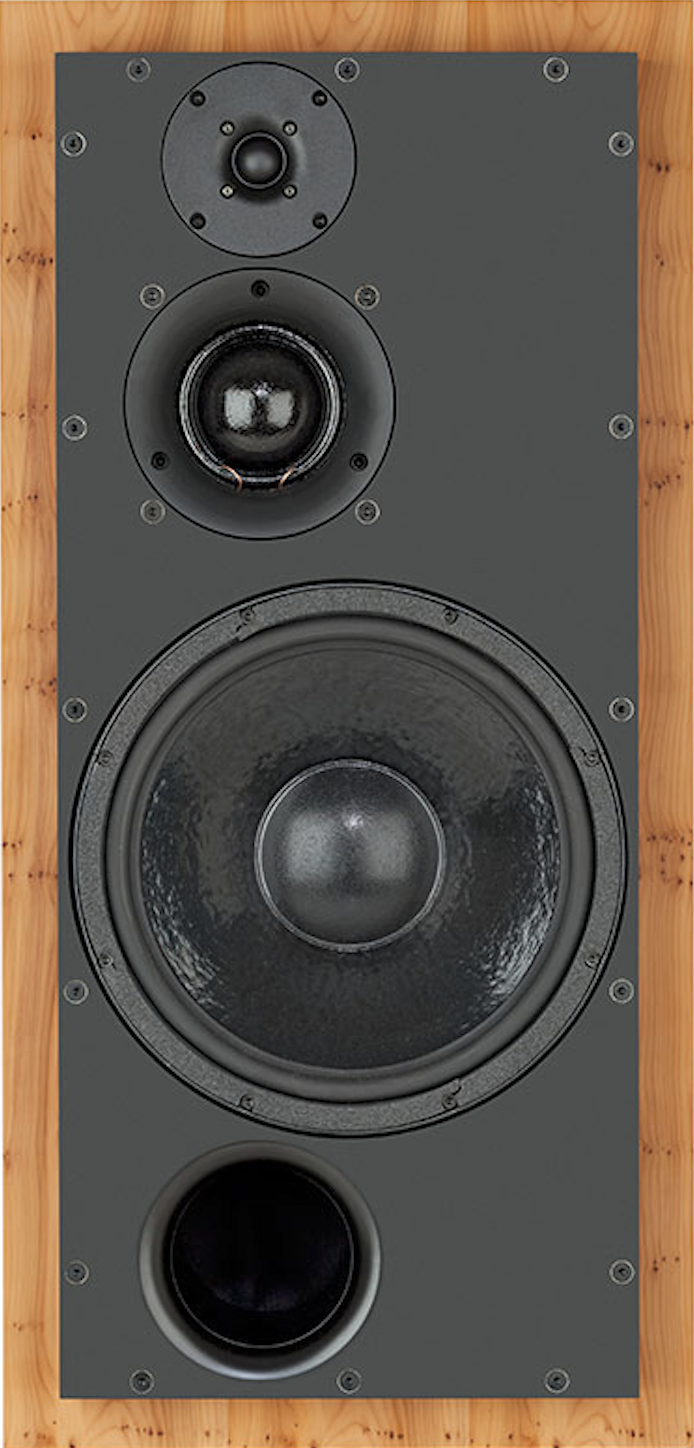

SCM100ASL
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
The active SCM100: a three-way floor-standing monitor pairing the 75 mm Superdome midrange and 25 mm S-Spec tweeter with a 314 mm Super Linear bass driver. On-board tri-amplification (200/100/50 W Class A/B) and active crossovers reach 115 dB SPL from a balanced XLR feed.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #9 of 364 floorstander |
| Power | Active |
| Height | 834 mm |
| Width | 400 mm |
| Depth | 585 mm |
| Weight | 58.5 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 75 mm midrange (soft dome), 1× 314 mm woofer (cone) |
| Crossover frequency | 380 / 3500 Hz |
| Frequency response | 32–22000 Hz |
| Amplification (per driver) | tweeter 50 W (class AB) · midrange 100 W (class AB) · woofer 200 W (class AB) |
| Total amp power | 350 W |
| Max SPL @ 1 m | 115 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
