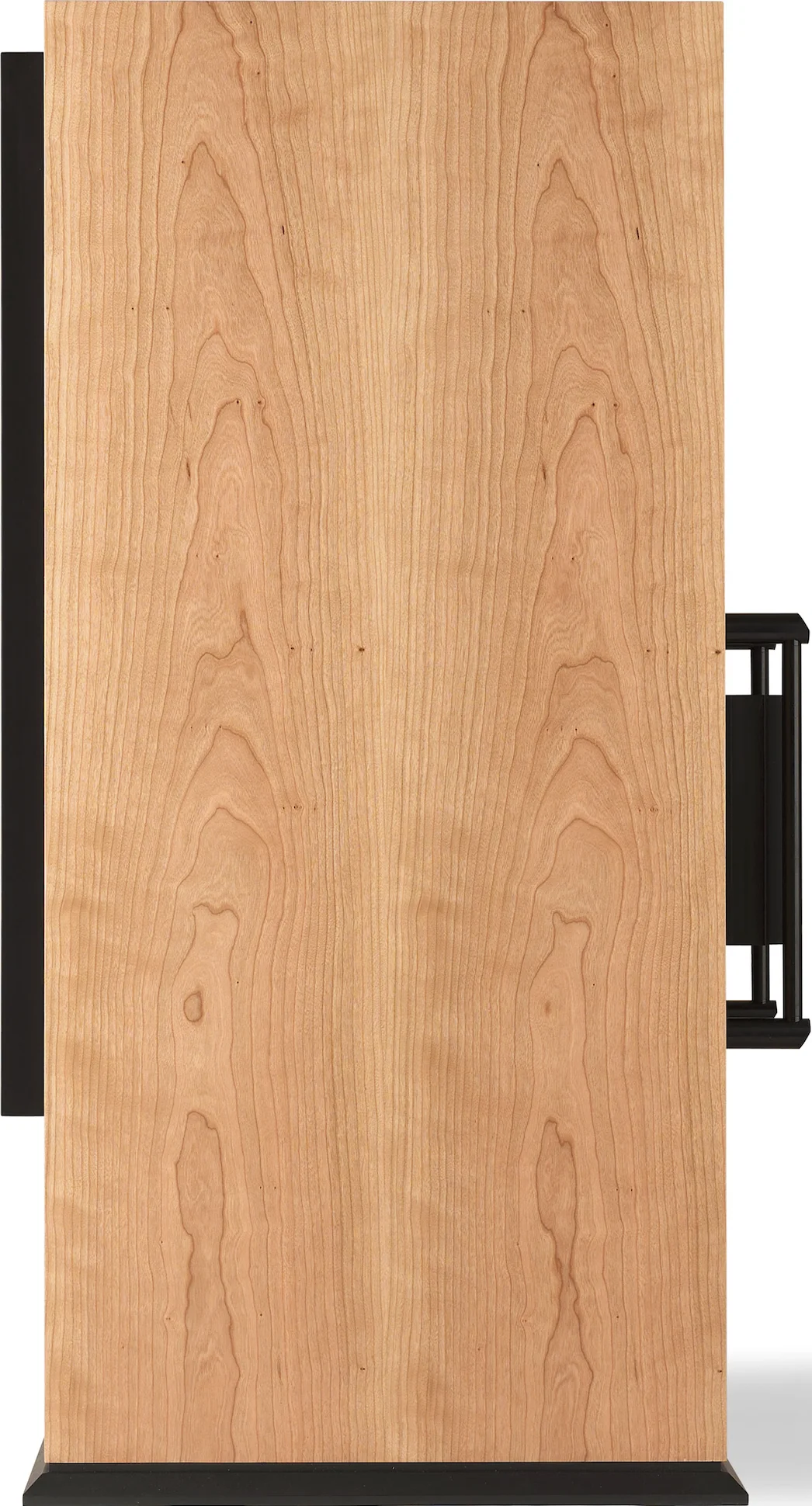

108/ 216This speaker ships with a side photo, so you can compare its true depth in the Profile view of the comparator.
Suggested TrueScale comparisons
Picked by type, power, MAP, dimensions and frequency response.
ATC · Tower · Floorstander
SCM150ASLT
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description

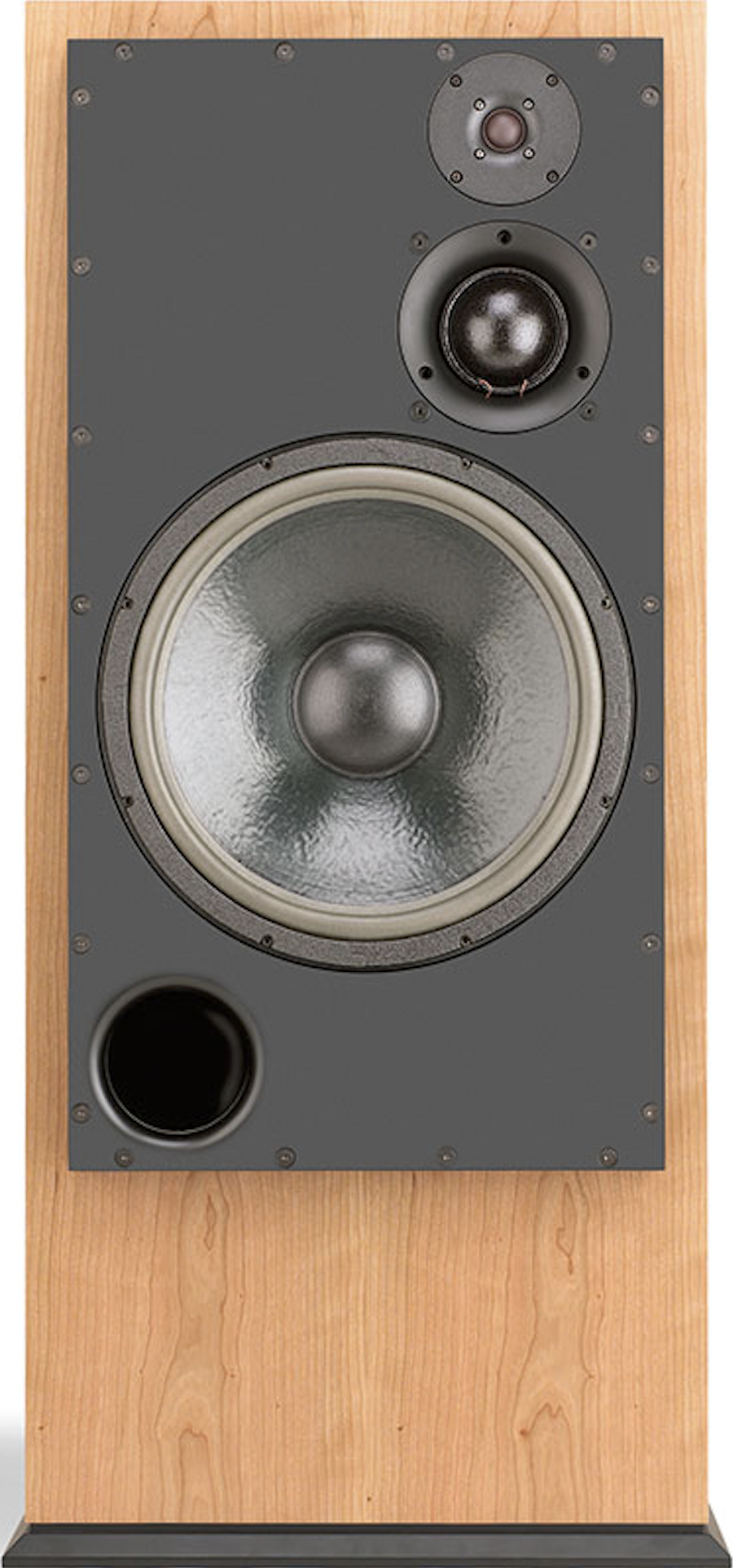

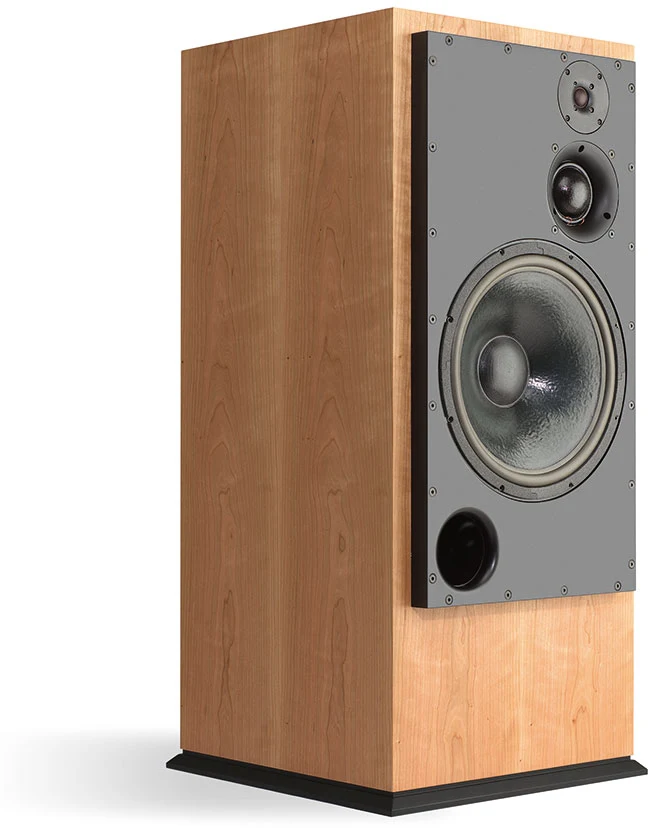

Active 3-way Tower with 375 mm Super Linear bass, ATC's 75 mm Superdome midrange and 25 mm tweeter in a sealed cabinet, driven by 350 W of on-board tri-amplification via a rack-mount P4 amplifier. Balanced XLR input, 117 dB max SPL.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #108 of 216 floorstander |
| Power | Active |
| Height | 1104 mm |
| Width | 495 mm |
| Depth | 635 mm |
| Weight | 77 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 75 mm midrange (soft dome), 1× 375 mm woofer (cone) |
| Frequency response | 25–22000 Hz |
| Amplification (per driver) | woofer 200 W (class AB) · midrange 100 W (class AB) · tweeter 50 W (class AB) |
| Total amp power | 350 W |
| Max SPL @ 1 m | 117 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | atc.audio ↗ |
| Product page | Open product page ↗ |
