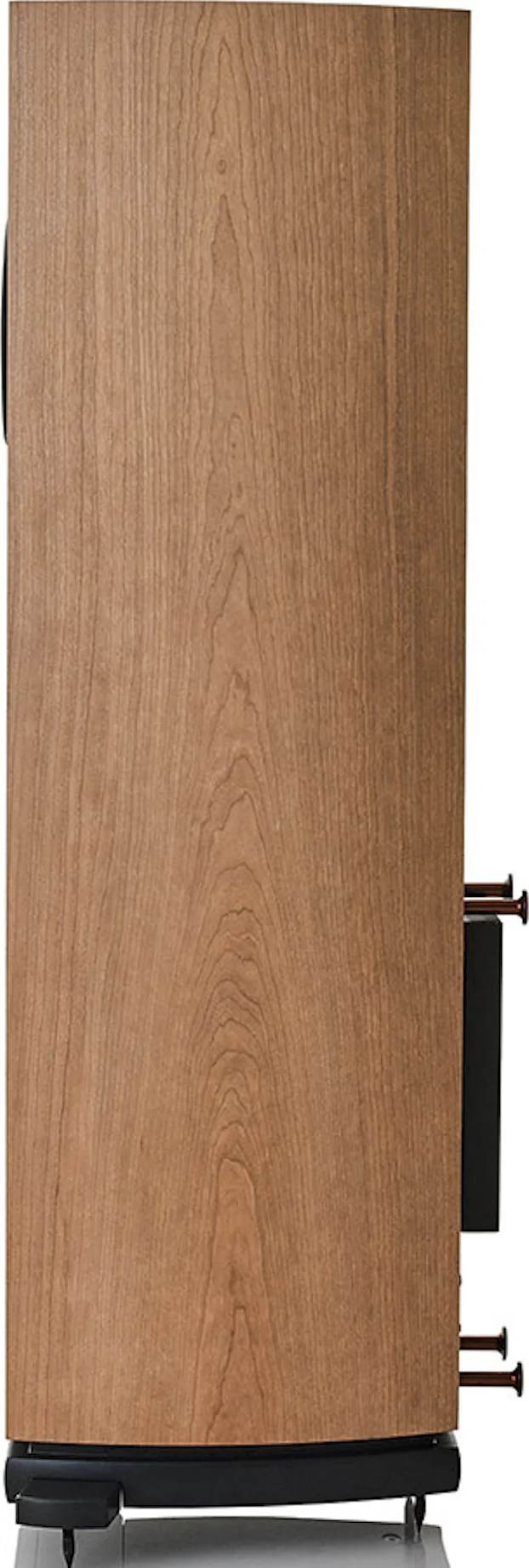

18/ 202This speaker ships with a side photo, so you can compare its true depth in the Profile view of the comparator.
Suggested TrueScale comparisons
Picked by type, power, MAP, dimensions and frequency response.
ATC · Entry · Floorstander
SCM19A
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).

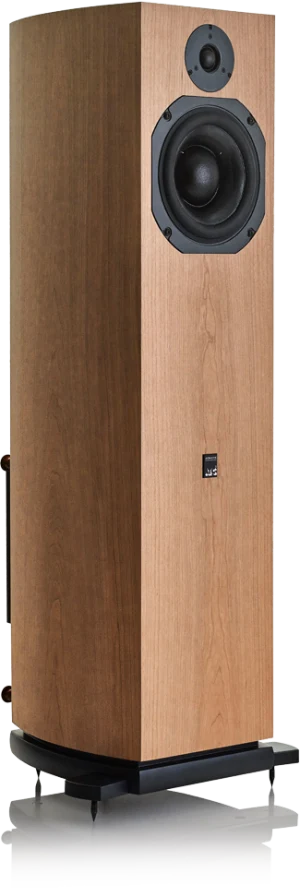

Product description
The active version of the SCM19, supplied on an integral floor plinth that houses 182 W of ATC's own Class A/B bi-amplification (150 W bass, 32 W treble) with an active crossover. Balanced XLR input only — a sealed two-way studio monitor for the home, fed straight from a preamp.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #18 of 202 floorstander |
| Power | Active |
| Height | 980 mm |
| Width | 347 mm |
| Depth | 344 mm |
| Weight | 31 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 150 mm mid-bass (cone) |
| Frequency response | 54–22000 Hz |
| MAP (USD) | $9,999 / pair |
| Amplification (per driver) | tweeter 32 W (class AB) · mid-bass 150 W (class AB) |
| Total amp power | 182 W |
| Max SPL @ 1 m | 108 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | atc.audio ↗ |
| Product page | Open product page ↗ |
