ATC · Classic · Bookshelf

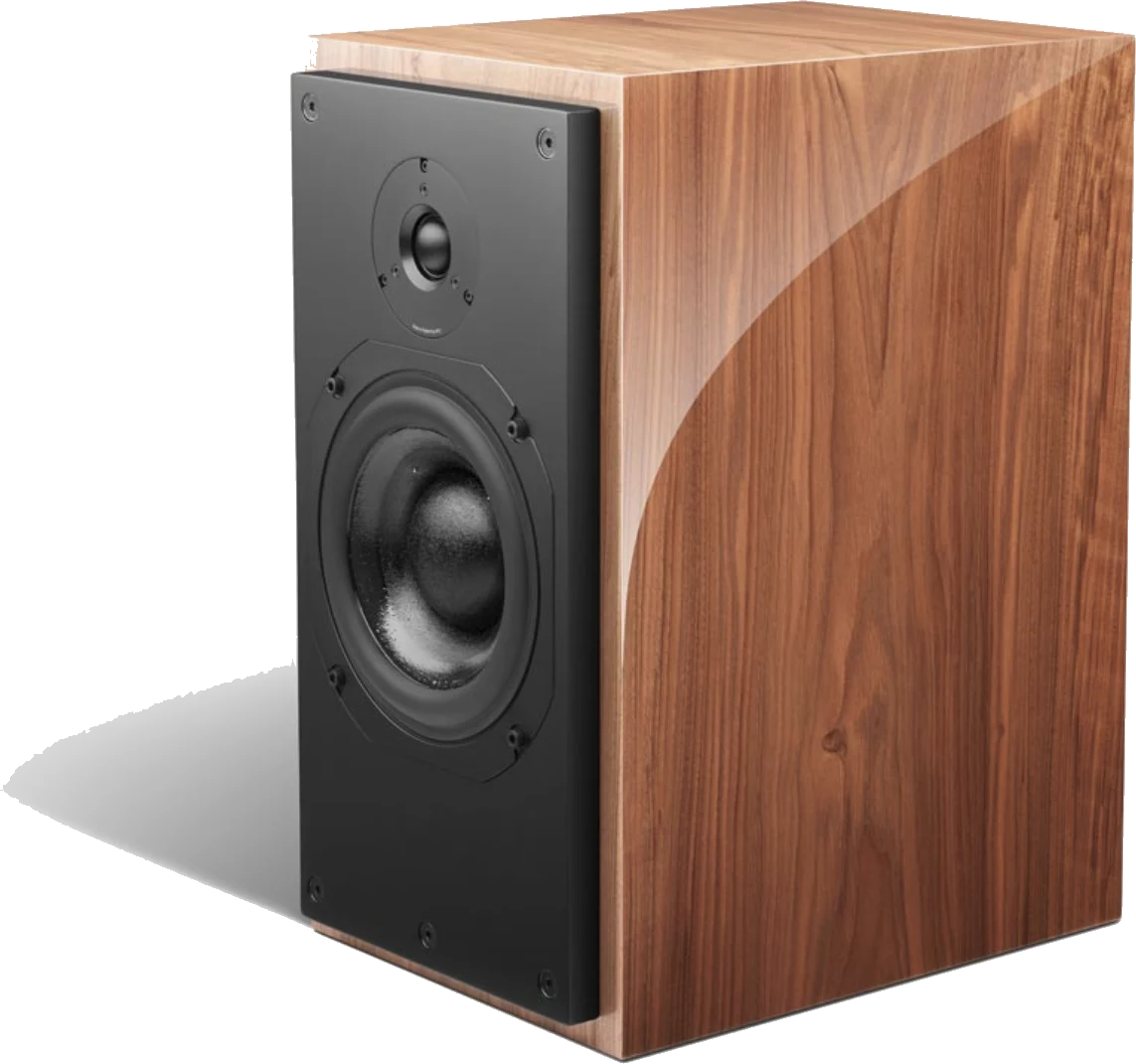

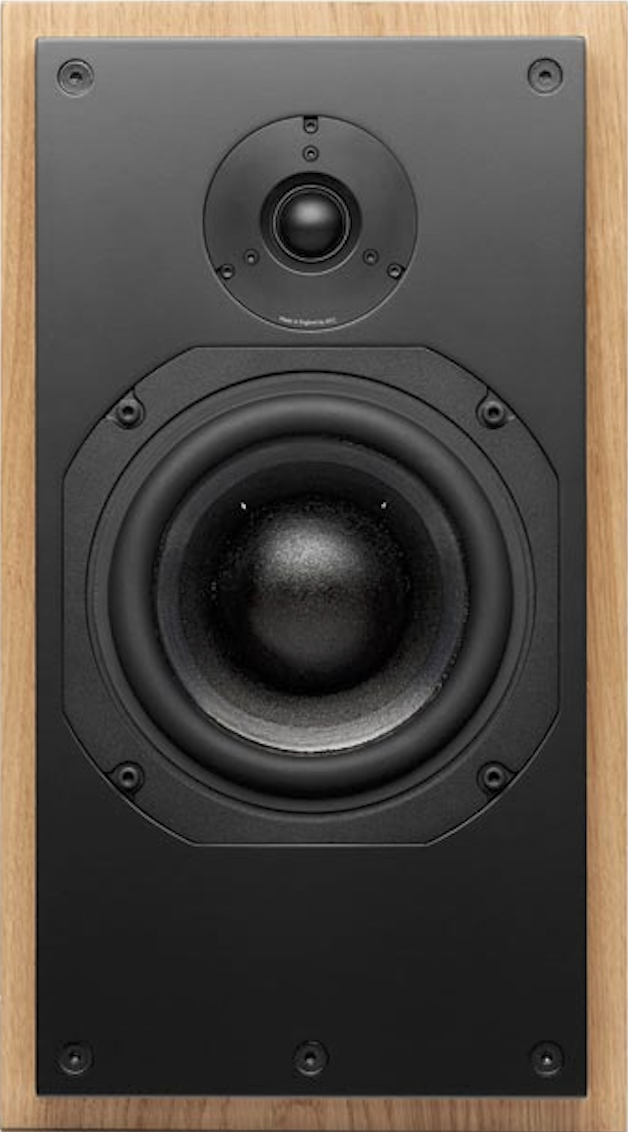

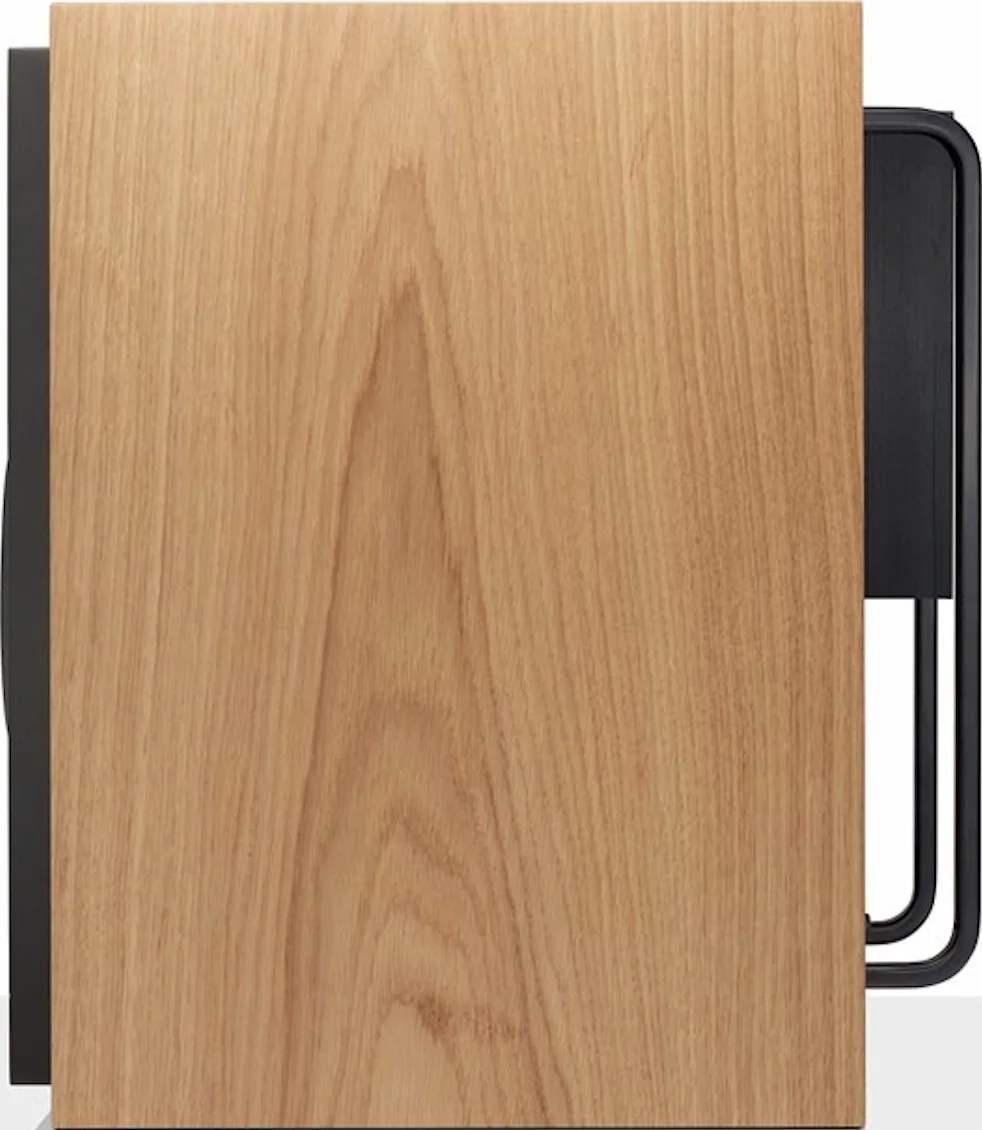

SCM20ASL
$6,990 / pairCheck availability ↗
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
The active version of ATC's compact Classic standmount — a 150 mm Super Linear mid/bass and the 25 mm S-Spec soft-dome tweeter in a sealed cabinet, driven by on-board Class A/B bi-amplification (200 W bass, 50 W treble) via balanced XLR.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #219 of 277 bookshelf |
| Power | Active |
| Height | 450 mm |
| Width | 250 mm |
| Depth | 411 mm |
| Weight | 24.3 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 150 mm mid-bass (cone) |
| Crossover frequency | 2200 Hz |
| Frequency response | 55–25000 Hz |
| MAP (USD) | $6,990 / pair |
| Amplification (per driver) | tweeter 50 W (class AB) · mid-bass 200 W (class AB) |
| Total amp power | 250 W |
| Max SPL @ 1 m | 108 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | atc.audio ↗ |
| Product page | Open product page ↗ |
