ATC · Tower · Floorstander
SCM20ASLT
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

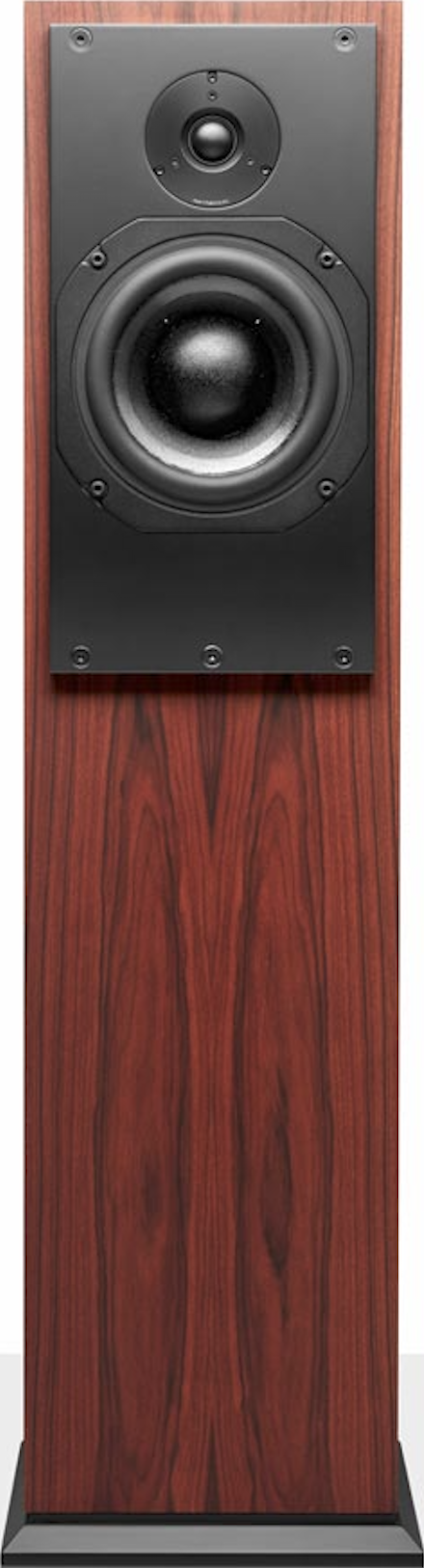

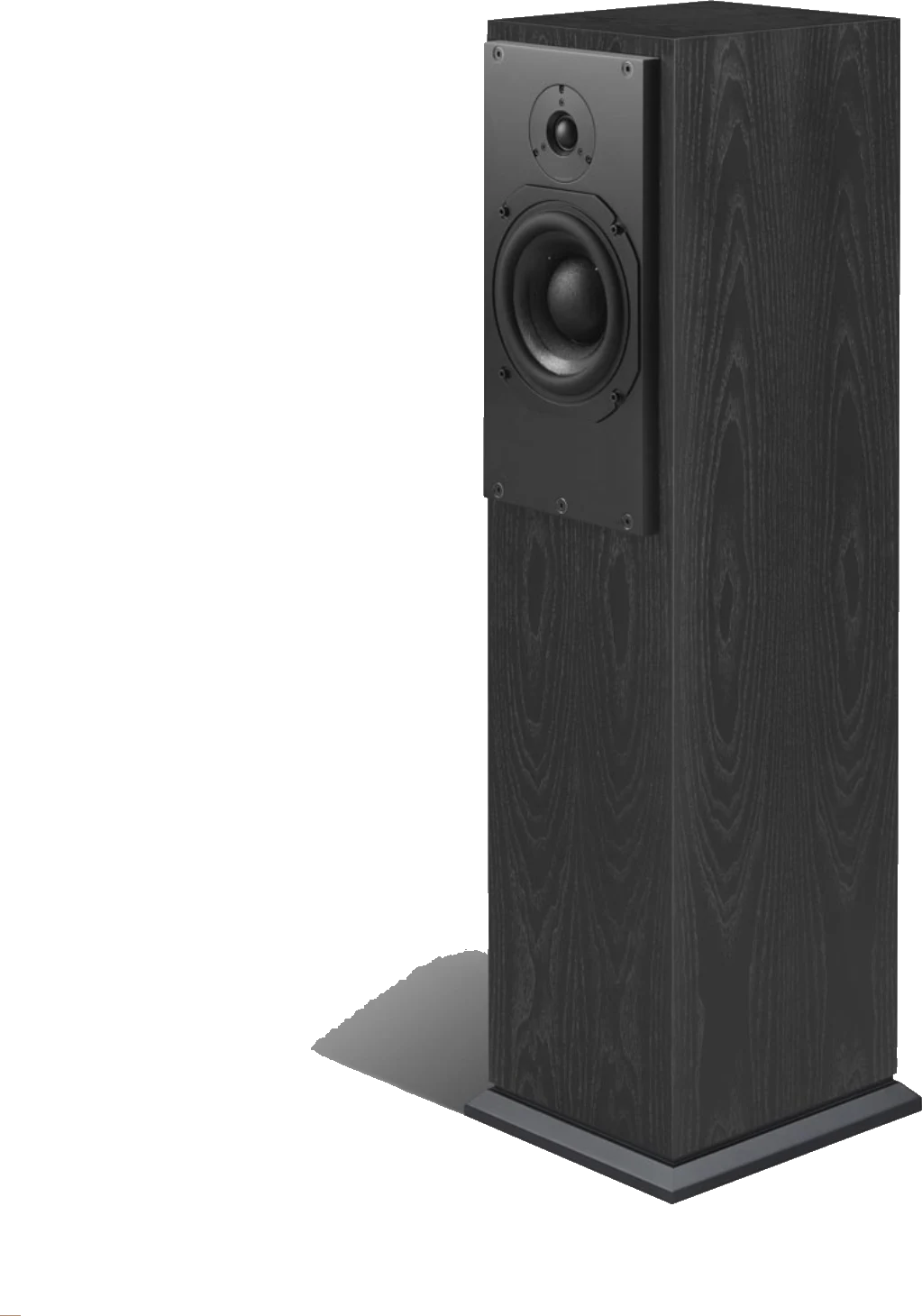

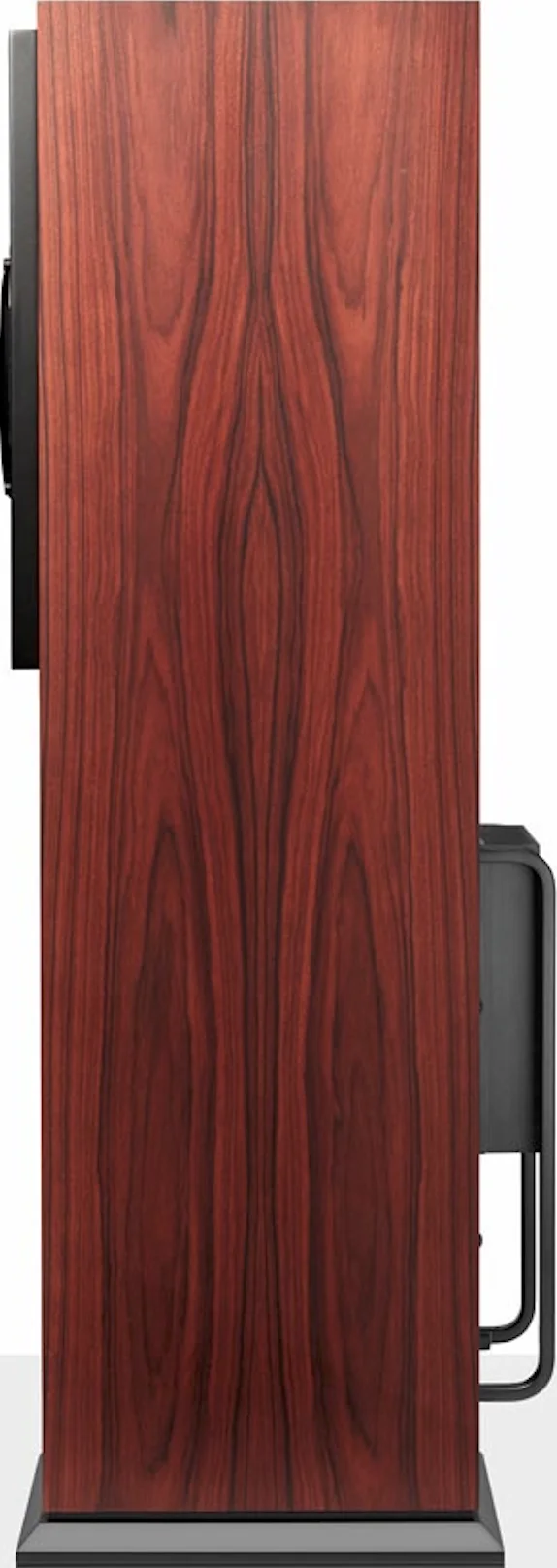

The active version of ATC's compact 2-way on an integrated floor tower — a 150 mm Super Linear mid/bass and 25 mm soft dome, driven by 250 W of on-board Class A/B bi-amplification with active crossover, in a sealed cabinet. Balanced XLR input.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #68 of 364 floorstander |
| Power | Active |
| Height | 990 mm |
| Width | 239 mm |
| Depth | 378 mm |
| Weight | 30.2 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 150 mm mid-bass (cone) |
| Crossover frequency | 2200 Hz |
| Frequency response | 55–25000 Hz |
| Amplification (per driver) | mid-bass 200 W (class AB) · tweeter 50 W (class AB) |
| Total amp power | 250 W |
| Max SPL @ 1 m | 108 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
