ATC · Classic · Bookshelf
SCM20PSL
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

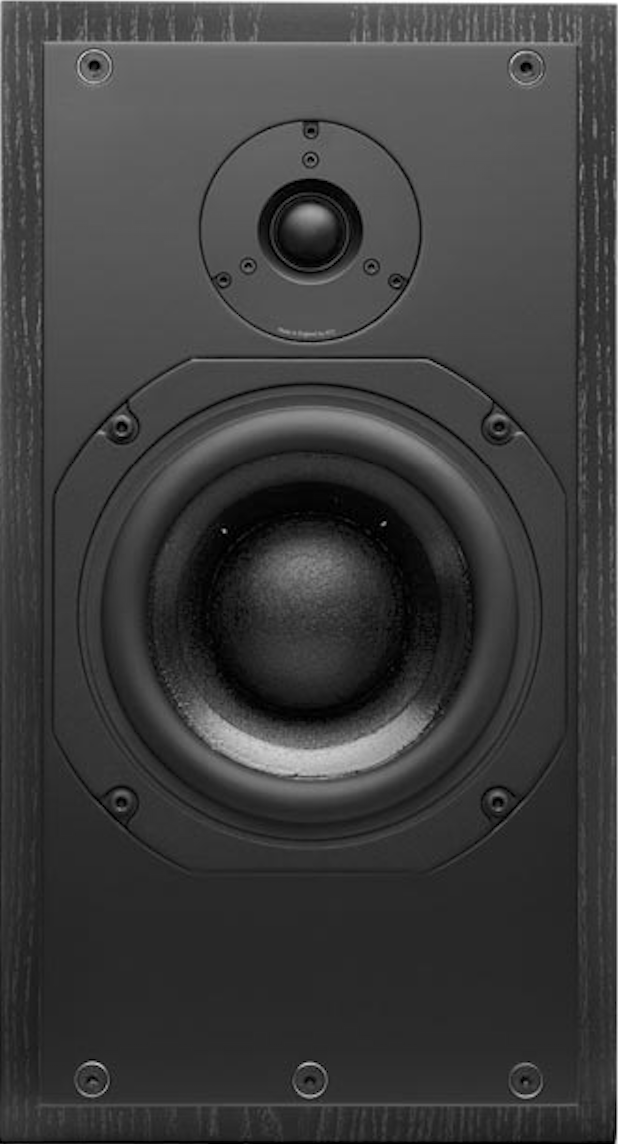

The passive Classic standmount: a 150 mm Super Linear mid/bass and the 25 mm S-Spec soft-dome tweeter in a sealed, bi-wireable cabinet. A demanding but hugely revealing two-way — an easy 8-ohm load that wants a powerful amplifier.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #214 of 277 bookshelf |
| Power | Passive |
| Height | 440 mm |
| Width | 238 mm |
| Depth | 326 mm |
| Weight | 16.9 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 150 mm mid-bass (cone) |
| Crossover frequency | 2200 Hz |
| Frequency response | 55–25000 Hz |
| Sensitivity | 85 dB |
| Impedance | 8 Ω (min 5.5 Ω) |
| Recommended amp | 75–300 W |
