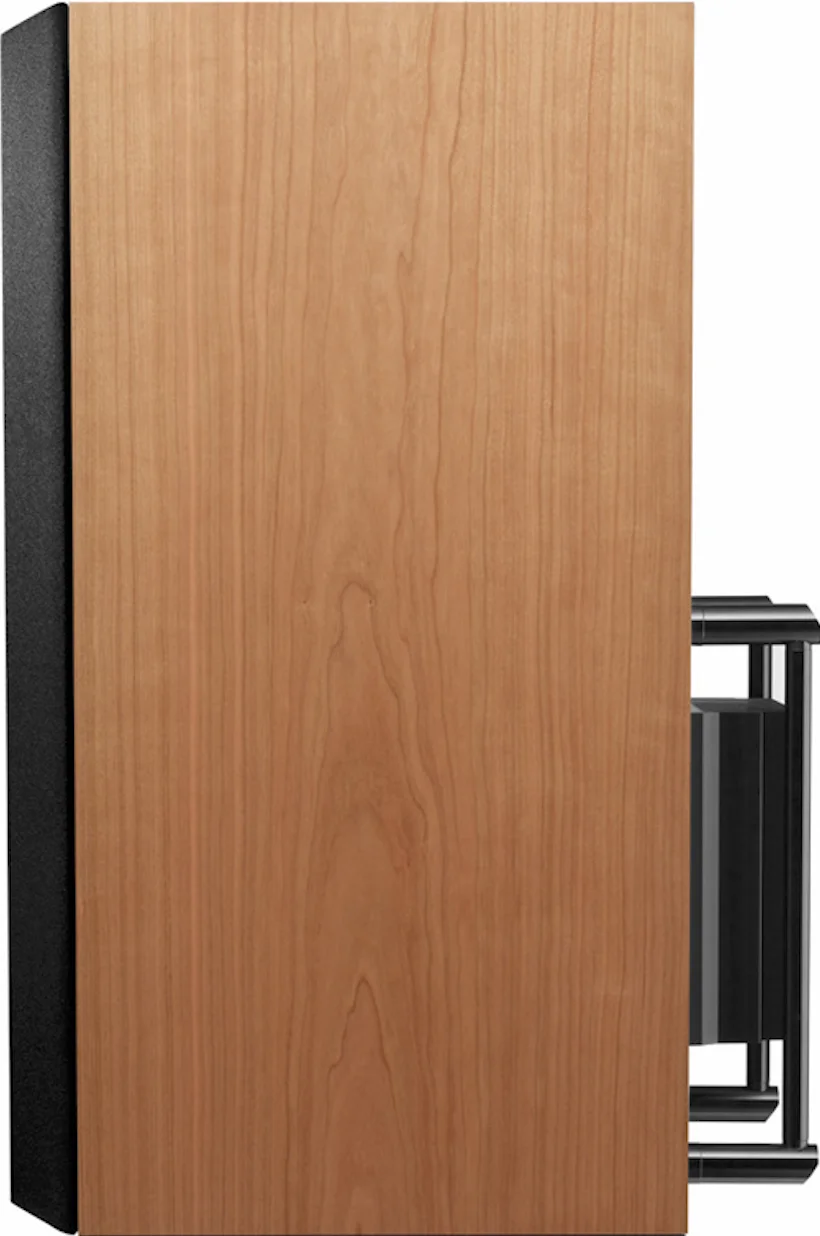

160/ 162This speaker ships with a side photo, so you can compare its true depth in the Profile view of the comparator.
Suggested TrueScale comparisons
Picked by type, power, MAP, dimensions and frequency response.
ATC · Classic · Bookshelf
SCM50ASL
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description

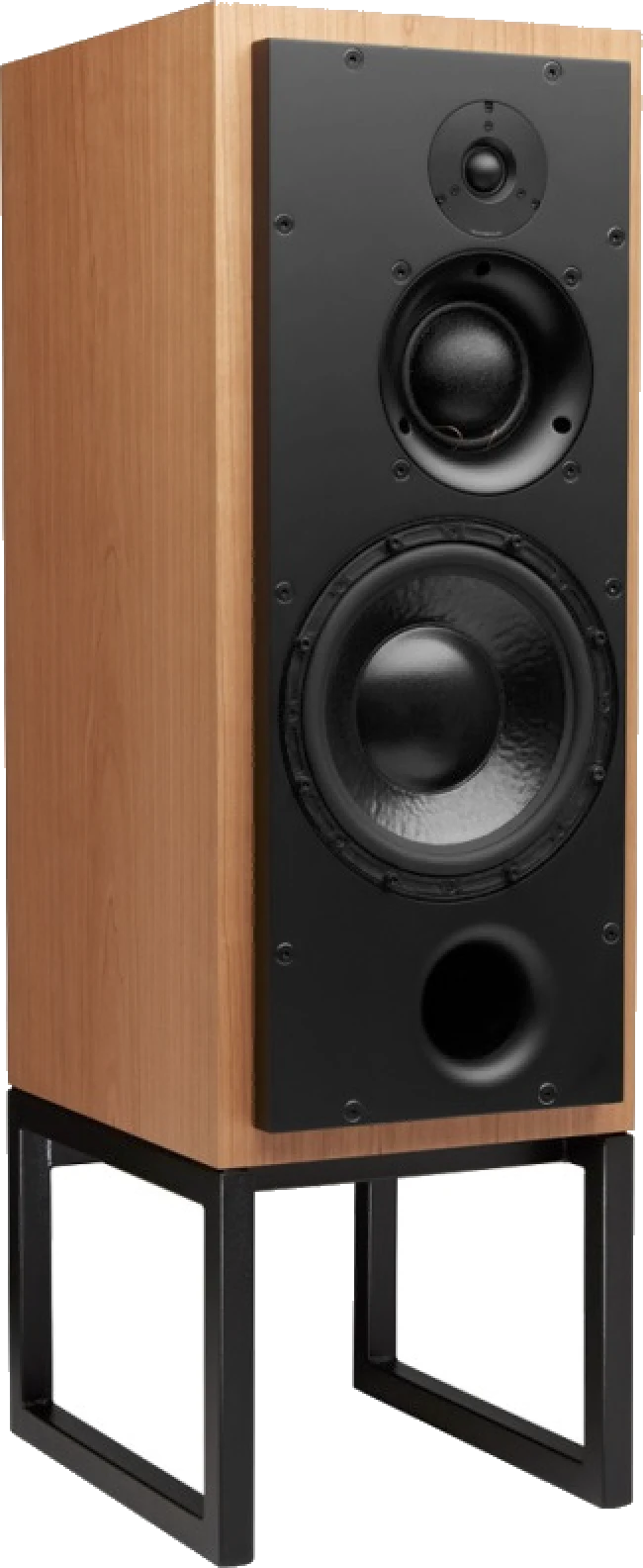

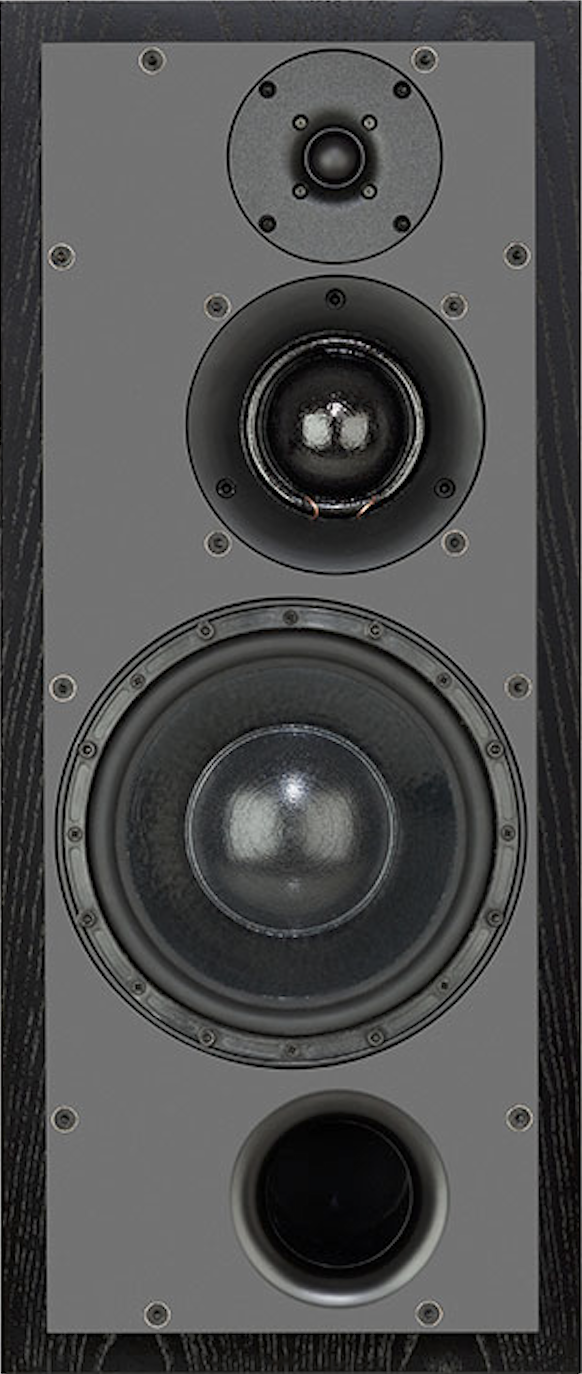

The active SCM50: ATC's famous three-way studio/hi-fi standmount built around the 75 mm Superdome midrange, with a 25 mm S-Spec tweeter and 234 mm Super Linear bass. On-board tri-amplification (200/100/50 W Class A/B) and active crossovers, fed from a balanced XLR.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #160 of 162 bookshelf |
| Power | Active |
| Height | 717 mm |
| Width | 304 mm |
| Depth | 480 mm |
| Weight | 48.9 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 75 mm midrange (soft dome), 1× 234 mm woofer (cone) |
| Frequency response | 38–25000 Hz |
| MAP (USD) | $33,999 / pair |
| Amplification (per driver) | tweeter 50 W (class AB) · midrange 100 W (class AB) · woofer 200 W (class AB) |
| Total amp power | 350 W |
| Max SPL @ 1 m | 112 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | atc.audio ↗ |
| Product page | Open product page ↗ |
