ATC · Classic · Bookshelf
SCM50SL
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description

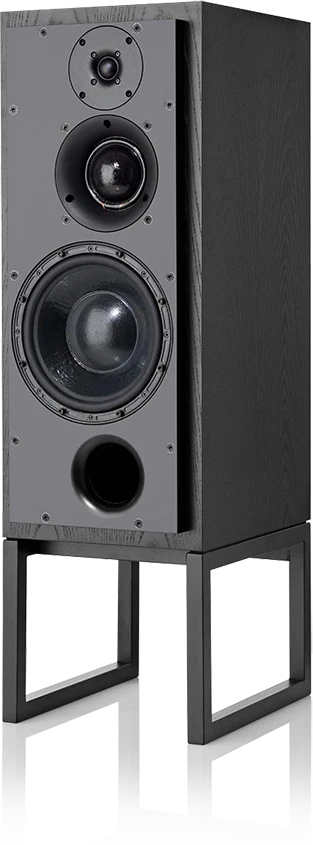

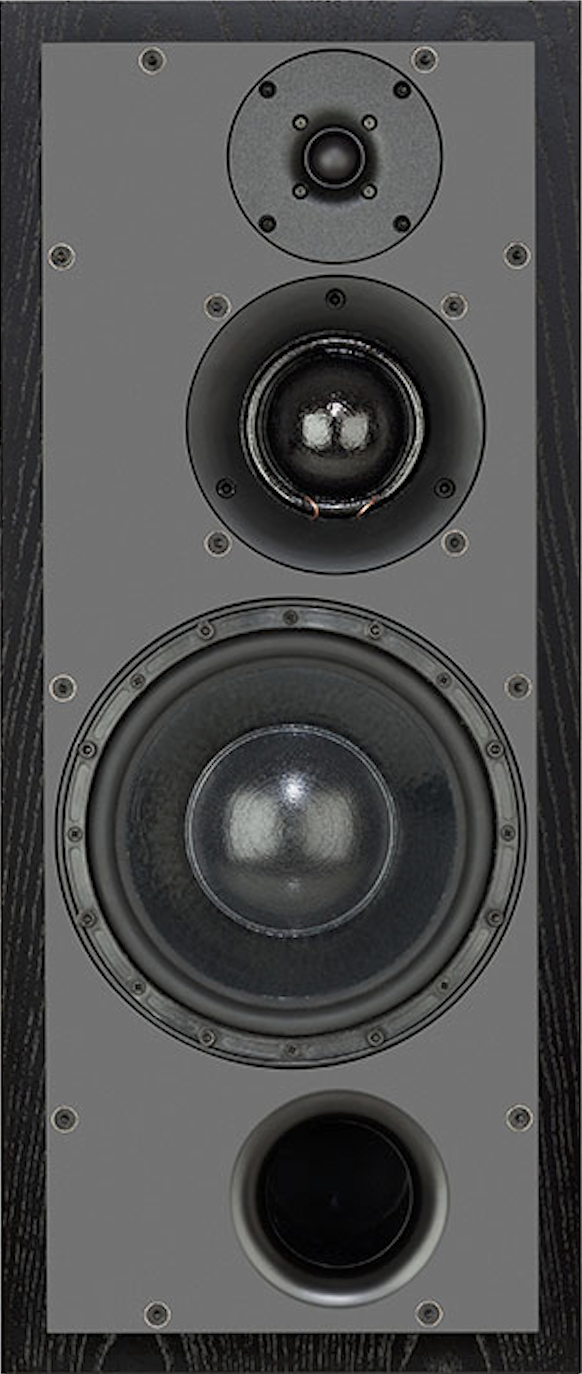

The passive SCM50: ATC's reference three-way standmount with the 75 mm Superdome midrange, 25 mm S-Spec tweeter and 234 mm Super Linear bass. An 8-ohm load that thrives on big amplification (100–1500 W) for studio-grade dynamics and midrange clarity.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #161 of 162 bookshelf |
| Power | Passive |
| Height | 717 mm |
| Width | 304 mm |
| Depth | 425 mm |
| Weight | 41.1 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 25 mm tweeter (soft dome), 1× 75 mm midrange (soft dome), 1× 234 mm woofer (cone) |
| Frequency response | 40–25000 Hz |
| Sensitivity | 85 dB |
| Impedance | 8 Ω (min 5.5 Ω) |
| Recommended amp | 100–1500 W |
| MAP (USD) | $25,999 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | atc.audio ↗ |
| Product page | Open product page ↗ |
