Quad · Revela · Bookshelf

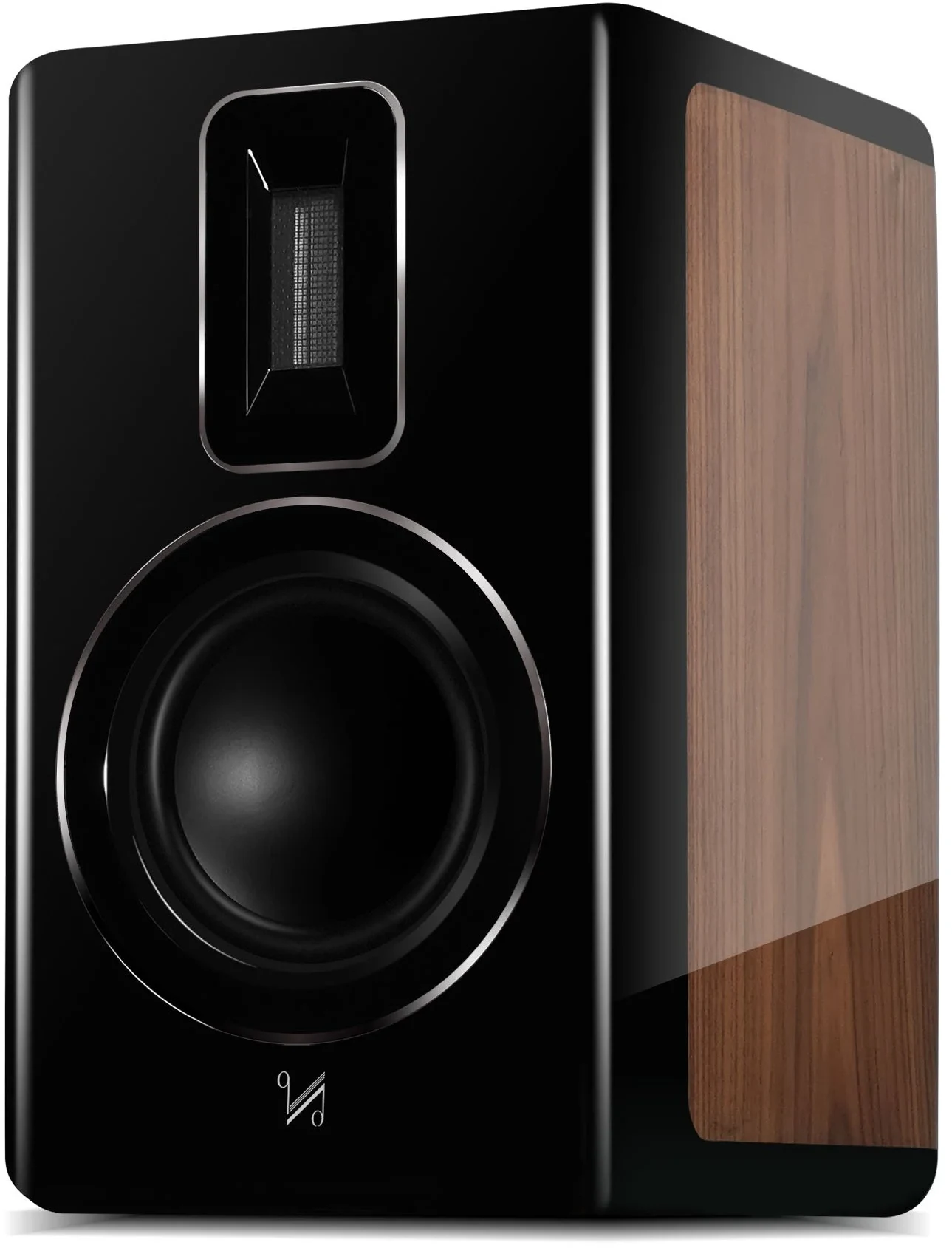

Revela 1
$2,250 / pairCheck availability ↗
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Quad's first new standmount in years: a 2-way reflex design pairing a 165 mm advanced fibre bass-mid with a 27 × 60 mm true-ribbon tweeter. 54 Hz–24 kHz ±3 dB, 86 dB, 6 ohm, 30–120 W; comes on an integrated plinth with spikes.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #180 of 277 bookshelf |
| Power | Passive |
| Height | 395 mm |
| Width | 246 mm |
| Depth | 312 mm |
| Weight | 24.6 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (ribbon), 1× 165 mm mid-bass (advanced fibre cone) |
| Crossover frequency | 2900 Hz |
| Frequency response | 54–24000 Hz |
| Sensitivity | 86 dB |
| Impedance | 6 Ω |
| Recommended amp | 30–120 W |
| MAP (USD) | $2,250 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | quad-hifi.co.uk ↗ |
| Product page | Open product page ↗ |
