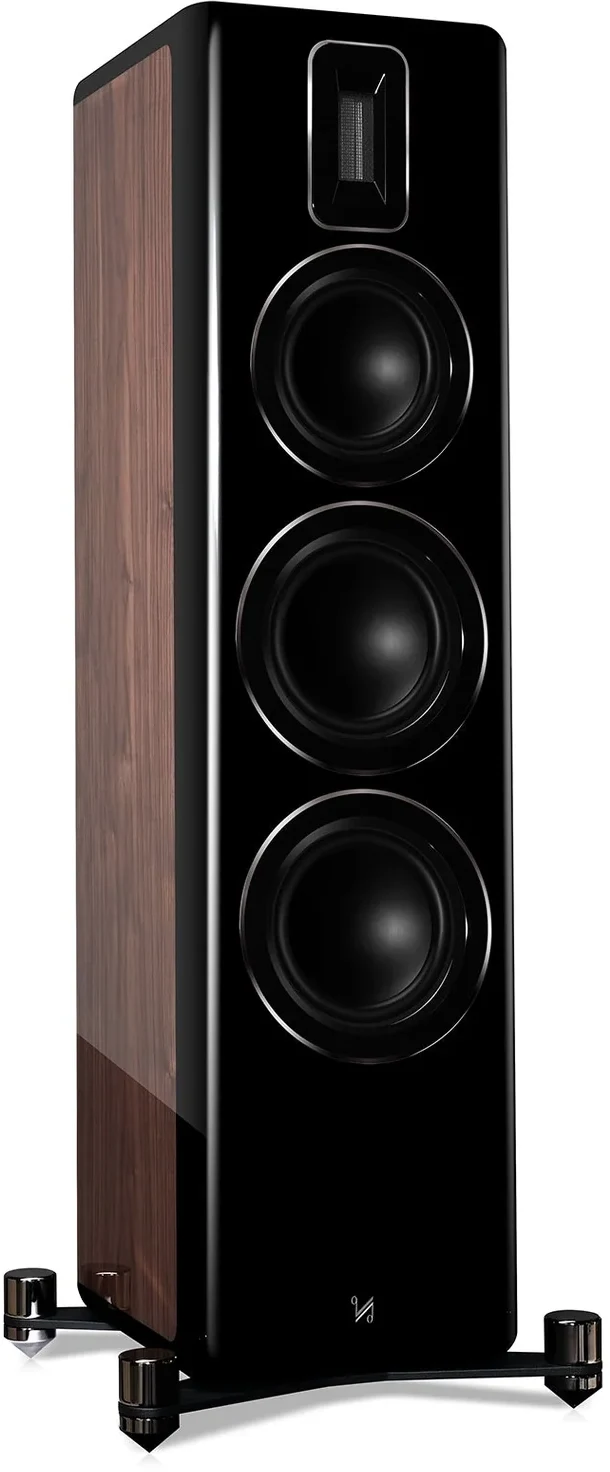

Quad · Revela · Floorstander
Revela 2
$4,495 / pairCheck availability ↗
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
3-way reflex floorstander with twin 165 mm advanced fibre woofers, a 150 mm fibre midrange and Quad's 27 × 60 mm true-ribbon tweeter. 40 Hz–24 kHz ±3 dB, 89 dB, 6 ohm, 20–200 W — the flagship of Quad's Revela return to boxed speakers.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #46 of 364 floorstander |
| Power | Passive |
| Height | 965 mm |
| Width | 350 mm |
| Depth | 325 mm |
| Weight | 31.8 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (ribbon), 1× 150 mm midrange (advanced fibre cone), 2× 165 mm woofer (advanced fibre cone) |
| Crossover frequency | 650 / 3800 Hz |
| Frequency response | 40–24000 Hz |
| Sensitivity | 89 dB |
| Impedance | 6 Ω |
| Power handling | 200 W |
| Recommended amp | 20–200 W |
| MAP (USD) | $4,495 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | quad-hifi.co.uk ↗ |
| Product page | Open product page ↗ |
