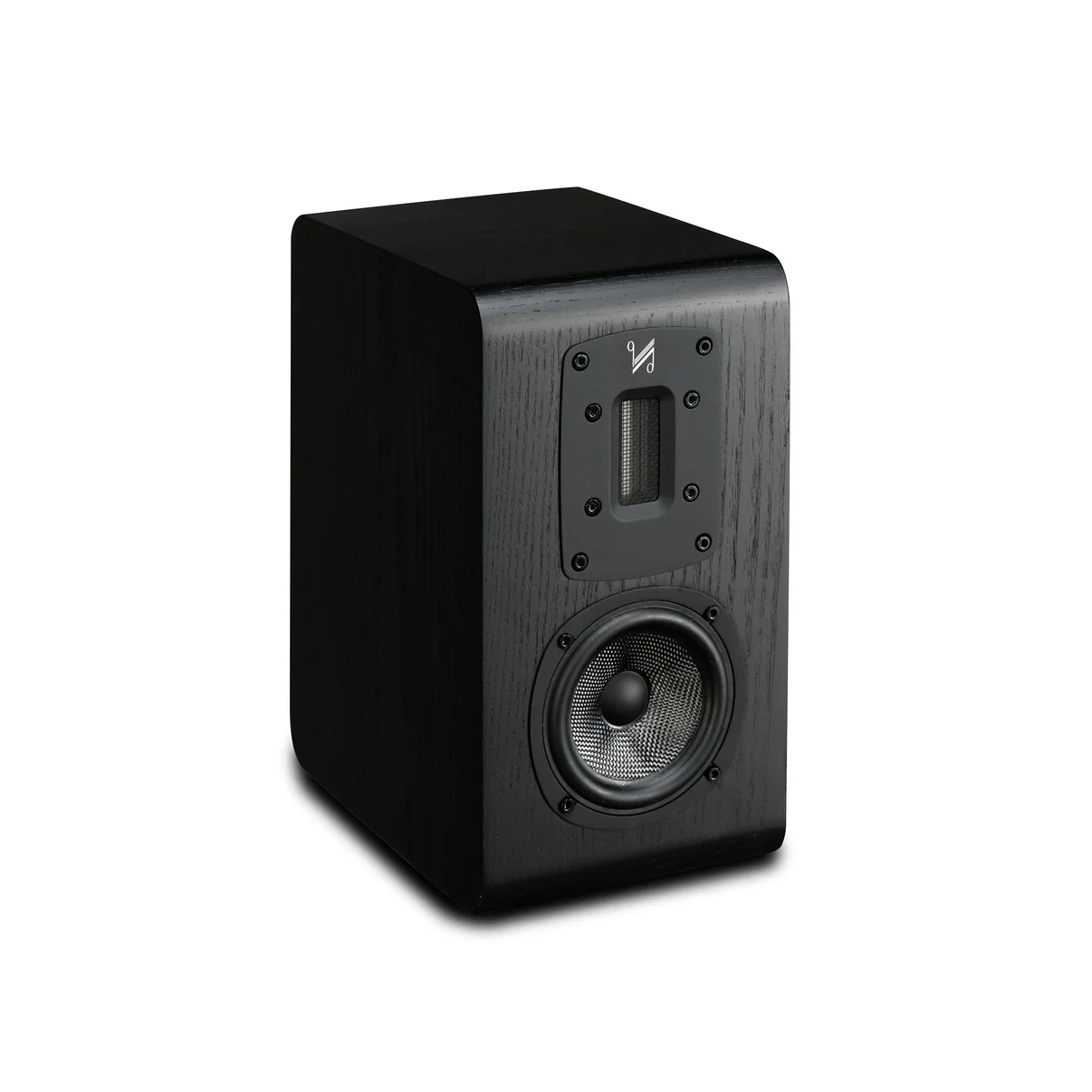

Quad · S · Bookshelf
S-1
$799 / pairCheck availability ↗
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Compact 2-way vented bookshelf with a 100 mm woven-Kevlar bass-mid and a 45 × 12 mm true-ribbon tweeter. 58 Hz–20 kHz ±3 dB, 84 dB, 8 ohm, 25–150 W.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #43 of 277 bookshelf |
| Power | Passive |
| Height | 285 mm |
| Width | 156 mm |
| Depth | 240 mm |
| Weight | 5.2 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (ribbon), 1× 100 mm mid-bass (woven Kevlar cone) |
| Crossover frequency | 3200 Hz |
| Frequency response | 58–20000 Hz |
| Sensitivity | 84 dB |
| Impedance | 8 Ω (min 4.2 Ω) |
| Recommended amp | 25–150 W |
| MAP (USD) | $799 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | quad-hifi.co.uk ↗ |
| Product page | Open product page ↗ |
