Z-2
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description

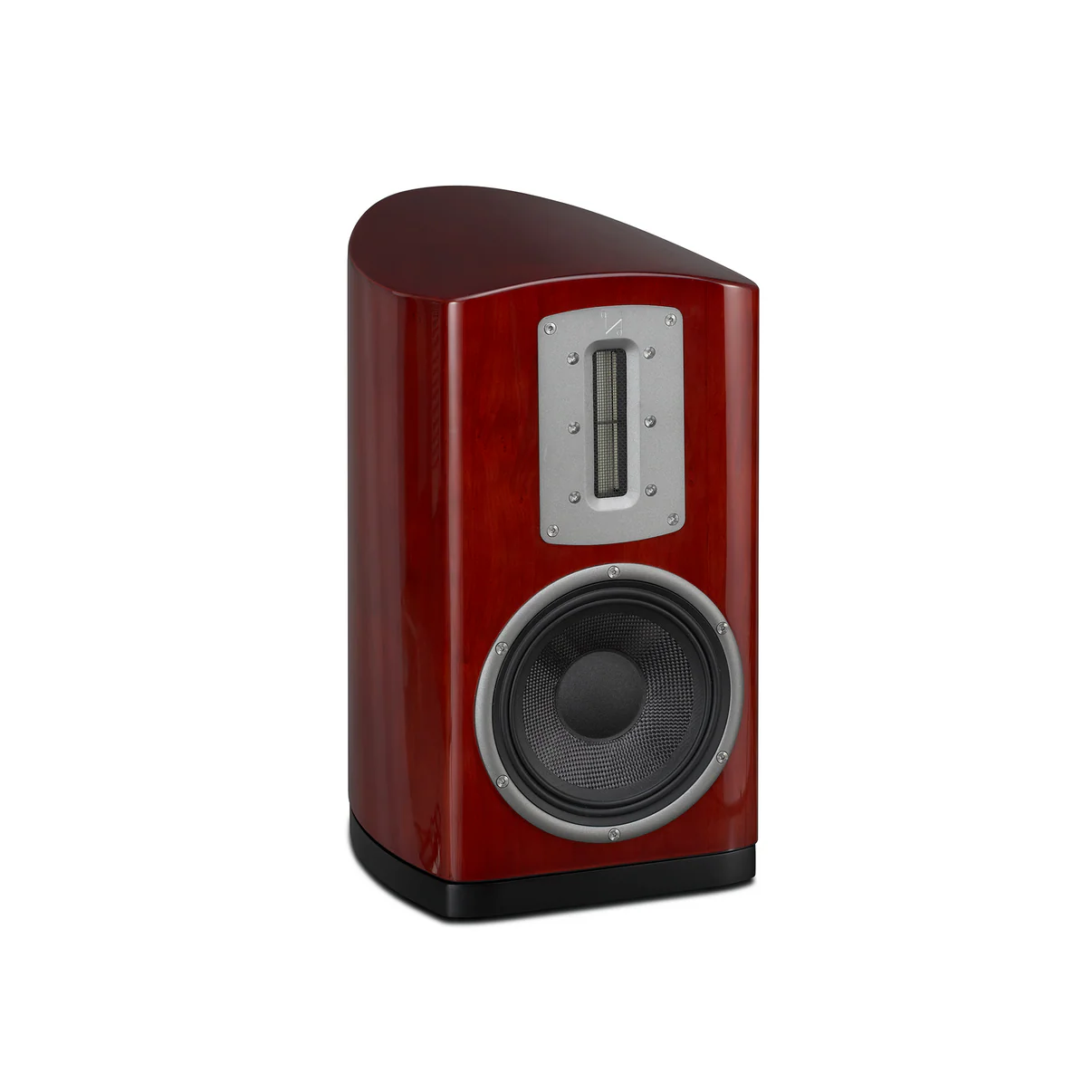

Larger 2-way reflex bookshelf in the Z range, with a 175 mm glass-fibre bass-mid and a 90 × 12 mm true-ribbon tweeter. 50 Hz–20 kHz ±3 dB, 84 dB, 8 ohm, 40–200 W.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #132 of 178 bookshelf |
| Power | Passive |
| Height | 421 mm |
| Width | 243 mm |
| Depth | 329 mm |
| Weight | 9 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× tweeter (ribbon), 1× 175 mm mid-bass (glass fibre cone) |
| Frequency response | 50–20000 Hz |
| Sensitivity | 84 dB |
| Impedance | 8 Ω (min 4.6 Ω) |
| Recommended amp | 40–200 W |
| MAP (USD) | $2,499 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | quad-hifi.co.uk ↗ |
| Product page | Open product page ↗ |
