Bang & Olufsen · Beolab · Floorstander

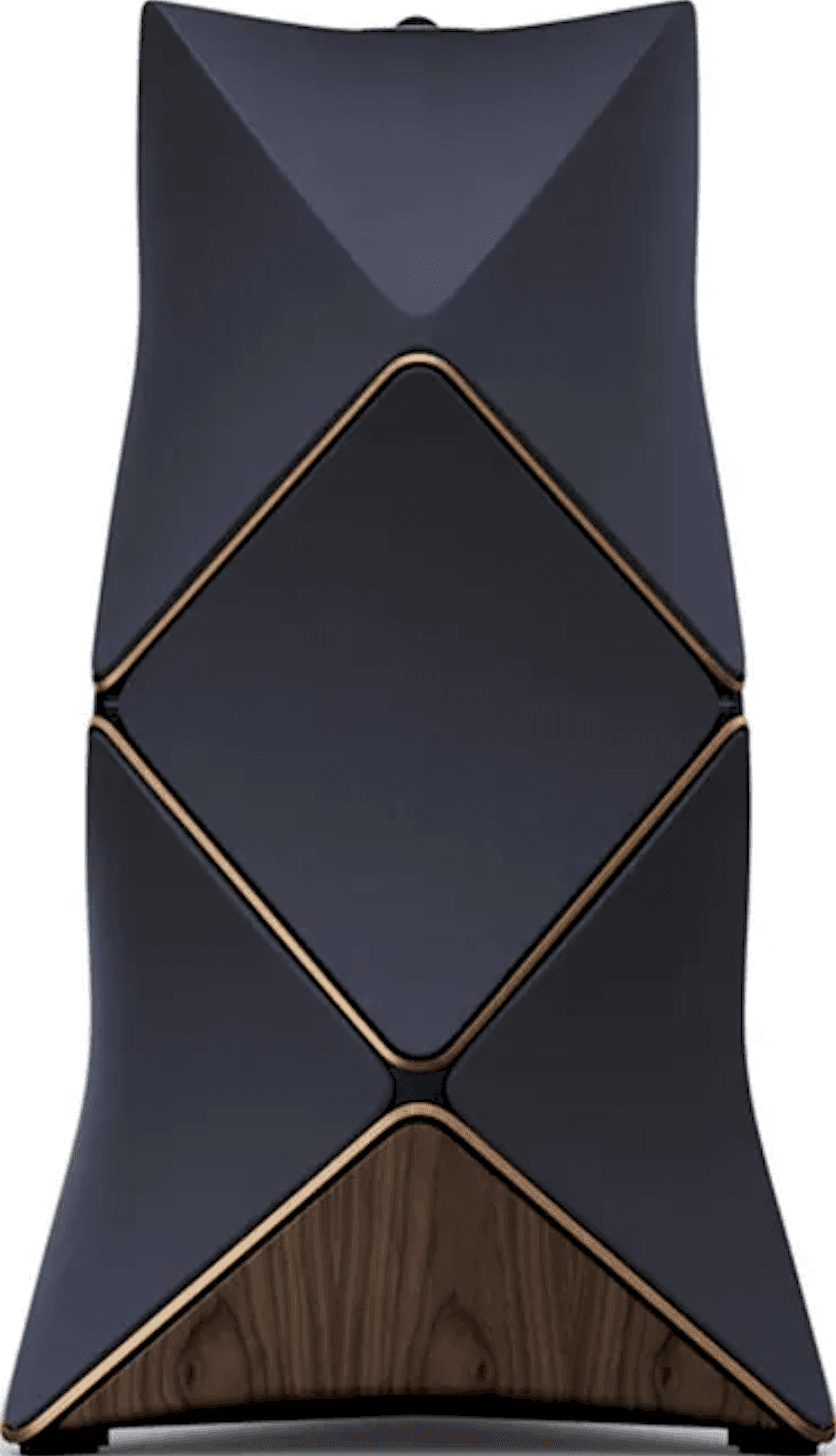

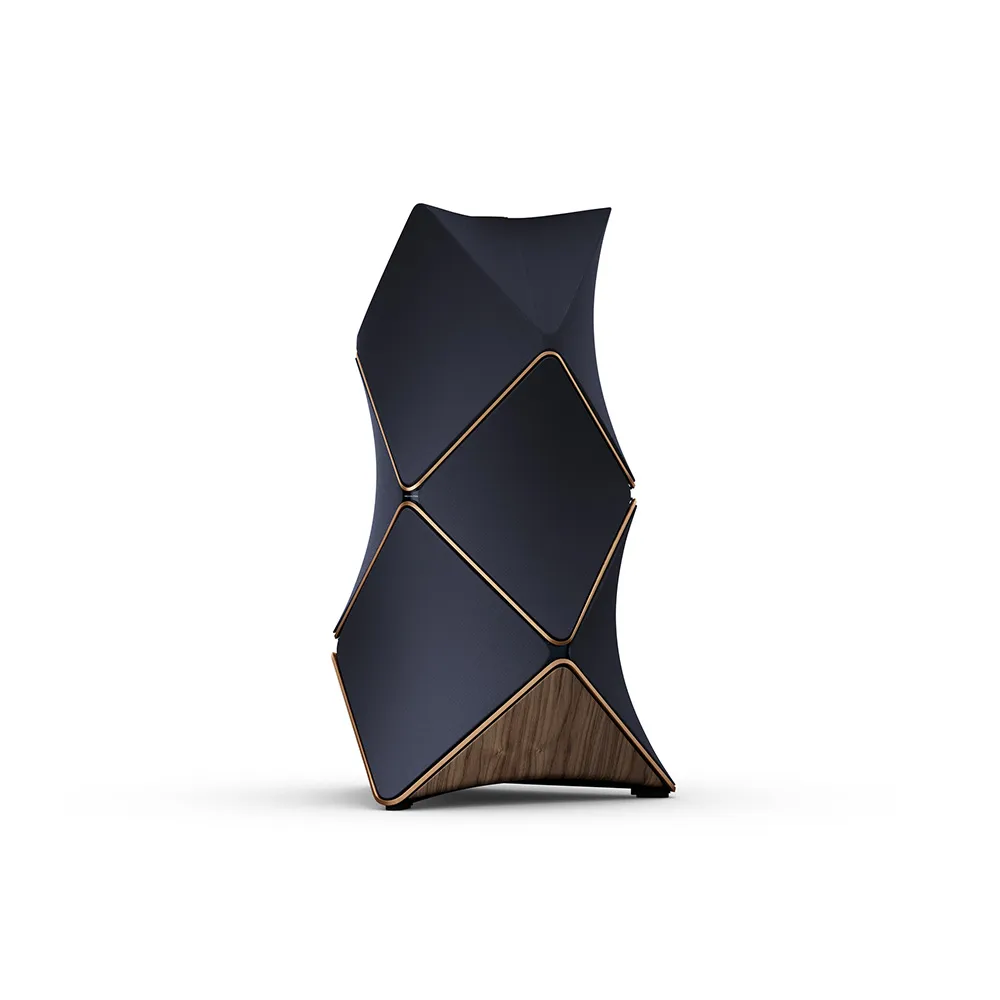

Beolab 90
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Top-of-line active floorstander — 18 drivers per cabinet: 7× 1" Scan-Speak Illuminator tweeters, 7× 4.5" Illuminator midranges, 3× 10" Discovery woofers and 1× 13" Revelator down-firing subwoofer, driven by 18 amplifier modules totalling 8,200 W (7 × 300 W ICEpower tweeter amps, 7 × 300 W ICEpower midrange amps, 4 × 1,000 W Heliox AM1000-1 woofer amps). Beam Width Control, Beam Direction Control (5 sides) and Active Room Compensation DSP shape the radiation pattern; 12 Hz – 43 kHz response, 137 kg per cabinet.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #271 of 337 floorstander |
| Power | Active |
| Height | 1253 mm |
| Width | 735 mm |
| Depth | 747 mm |
| Weight | 137 kg |
| Enclosure | sealed |
| Drivers | 7× 25 mm tweeter (Scan-Speak Illuminator), 7× 114 mm midrange (Scan-Speak Illuminator), 3× 254 mm woofer (Scan-Speak Discovery), 1× 330 mm woofer (Scan-Speak Revelator) |
| Frequency response | 12–43000 Hz |
| MAP (USD) | $211,800 / pair |
| Amplification (per driver) | tweeter 300 W (class D) · midrange 300 W (class D) · woofer 1000 W (class D) |
| Total amp power | 8200 W |
| Max SPL @ 1 m | 126 dB |
| Hi-res audio | — |
| Wired inputs | RCA, XLR balanced, Optical (Toslink), Coaxial S/PDIF, AES/EBU (XLR), USB Audio, Ethernet |
| Streaming / wireless | Wi-Fi, AirPlay 2, Google Cast, Spotify Connect, Bluetooth |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | No |
| Wireless inter-speaker link | Yes |
| Latency | — |
| Idle power | — |
| Max consumption | — |
