Bowers & Wilkins · 800 · Floorstander

802 D4

Product description

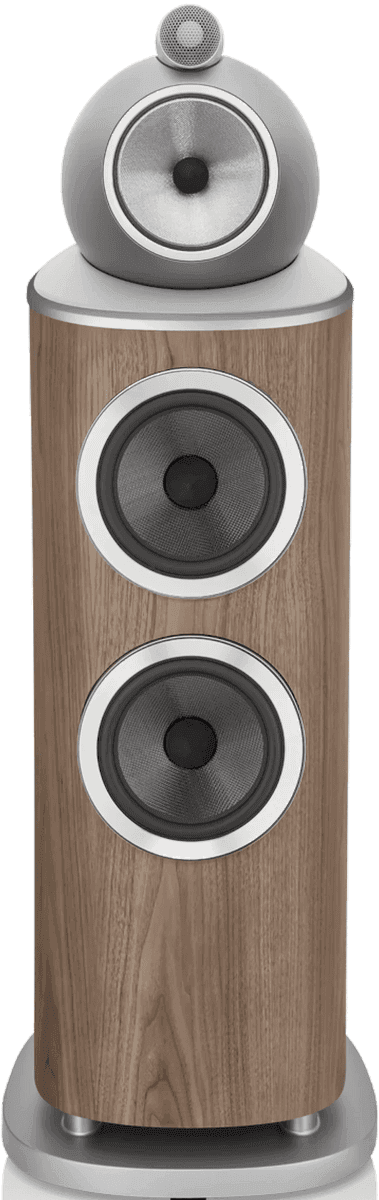

One step below the 801 D4: the same Turbine head and 6-inch Continuum-cone FST midrange, but with twin 8-inch Aerofoil woofers in a slightly smaller Matrix-braced cabinet. It keeps the 800-series signature and reaches 17 Hz, in a footprint a shade more room-friendly than the full flagship.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
802 D417 Hz28 kHz90 dB8 Ω810 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#469 of 648 floorstander
PowerPassive
Height1218 mm
Width385 mm
Depth602 mm
Footprint2318 cm²
Space taken282.3 L
Weight88.1 kg
EnclosureBass reflex, down-firing port
Drivers1× 25 mm tweeter (diamond dome), 1× 150 mm midrange (Continuum cone with FST surround), 2× 200 mm woofer (Aerofoil cone)
Frequency response17–28000 Hz (±3 dB)
Sensitivity90 dB
Impedance8 Ω (min 3 Ω)
Recommended amp50–500 W
MAP (USD)$24,000 / pair
Where to buyCheck availability ↗
Manufacturerbowerswilkins.com ↗
Product pageOpen product page ↗
