Castle · Avon · Bookshelf

Avon 1

Product description

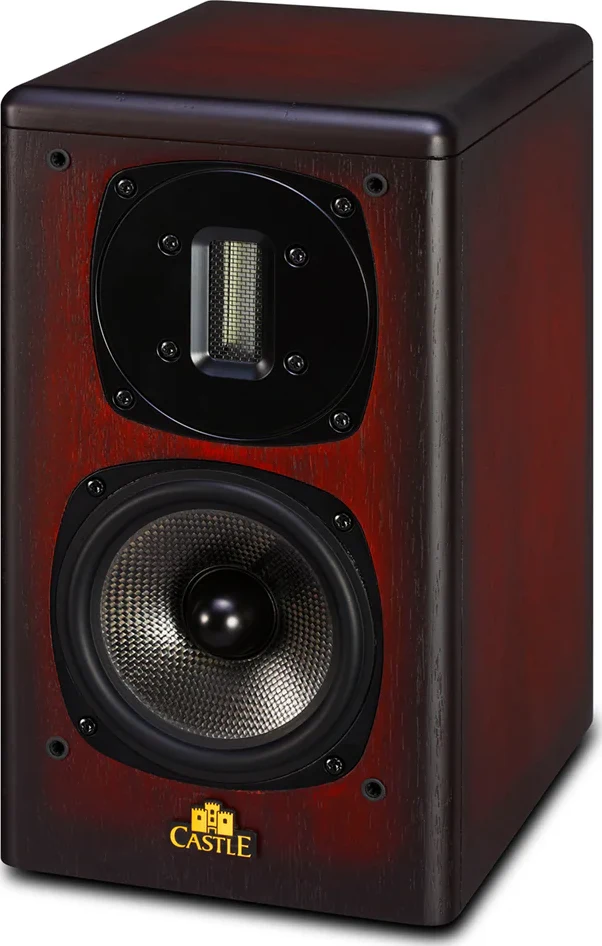

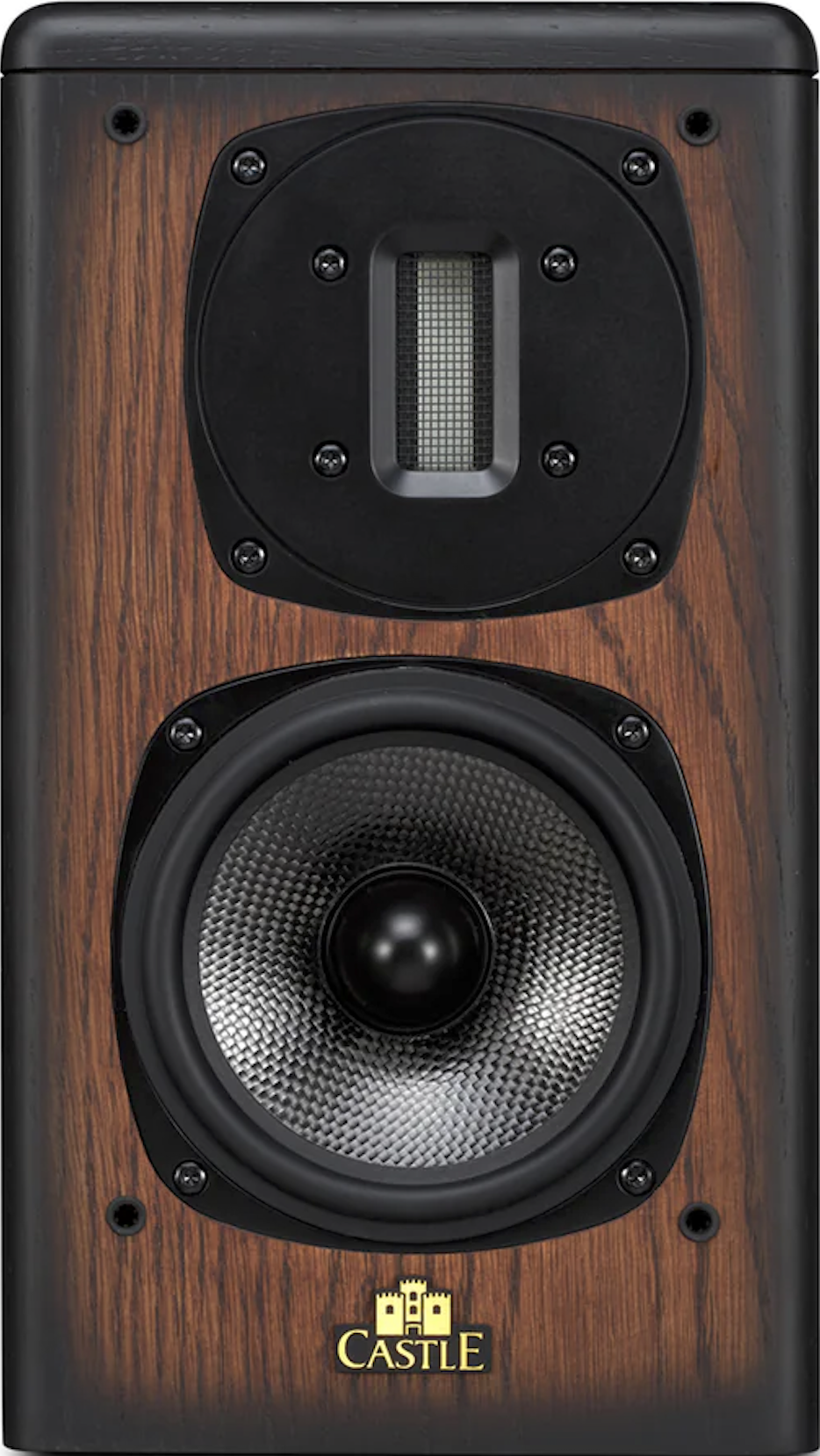

The compact standmount of Castle's premium Avon range — a two-way with a 130 mm mid-bass and a ribbon tweeter in a transmission-line cabinet, hand-finished in real-wood veneer. The transmission-line loading gives a compact bookshelf unusually extended bass for a small-to-medium room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Avon 160 Hz20 kHz87 dB8 Ω
Median45 Hz25 kHz87 dB6 Ω
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeBookshelf
HiFi ladder position#139 of 470 bookshelf
PowerPassive
Height320 mm
Width180 mm
Depth260 mm
Footprint468 cm²
Space taken15 L
Weight5.8 kg
EnclosureTransmission line
Drivers1× 130 mm mid-bass, 1× tweeter (ribbon)
Crossover frequency2500 Hz
Frequency response60–20000 Hz
Sensitivity87 dB
Impedance8 Ω
Recommended amp25–100 W
Where to buyCheck availability ↗
Manufacturercastle.uk.com ↗
Product pageOpen product page ↗
