Castle · Avon · Floorstander

Avon 4

Product description

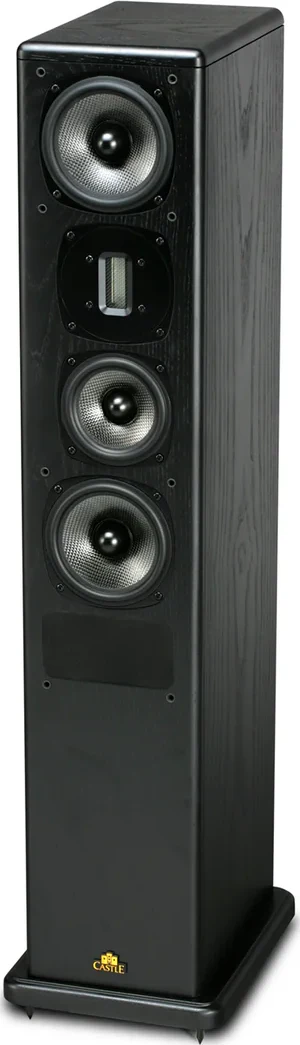

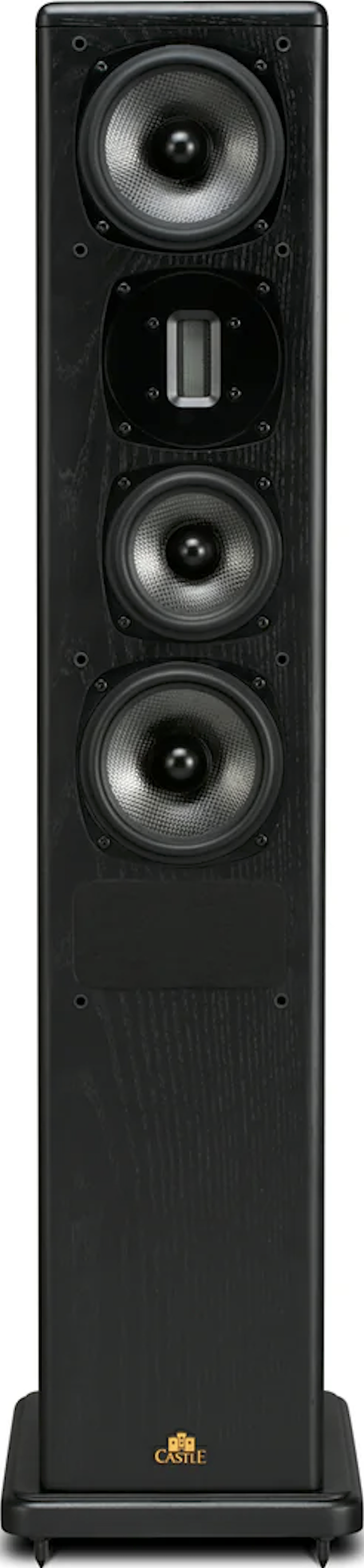

A three-way Avon floorstander — a 130 mm woofer and 115 mm midrange with a ribbon tweeter in a transmission-line tower, hand-finished in real-wood veneer. The entry Avon floorstander, bringing transmission-line bass and ribbon treble to a medium room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Avon 445 Hz20 kHz89 dB8 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#82 of 648 floorstander
PowerPassive
Height955 mm
Width180 mm
Depth310 mm
Footprint701 cm²
Space taken66.9 L
Weight17.6 kg
EnclosureTransmission line
Drivers1× 130 mm woofer, 1× 115 mm midrange, 1× tweeter (ribbon)
Crossover frequency320 / 3600 Hz
Frequency response45–20000 Hz
Sensitivity89 dB
Impedance8 Ω
Recommended amp25–100 W
Where to buyCheck availability ↗
Manufacturercastle.uk.com ↗
Product pageOpen product page ↗
