Castle · Avon · Floorstander

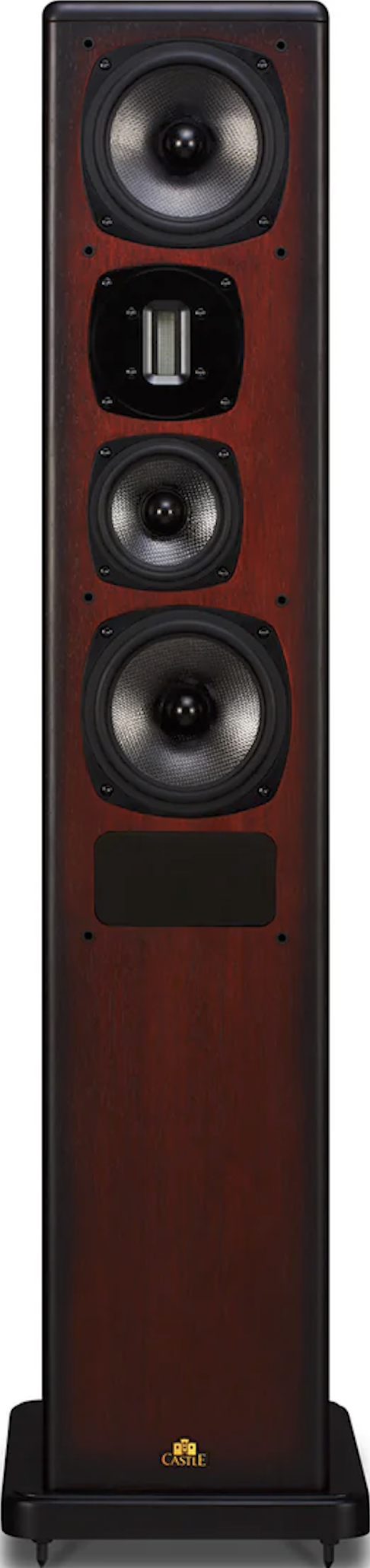

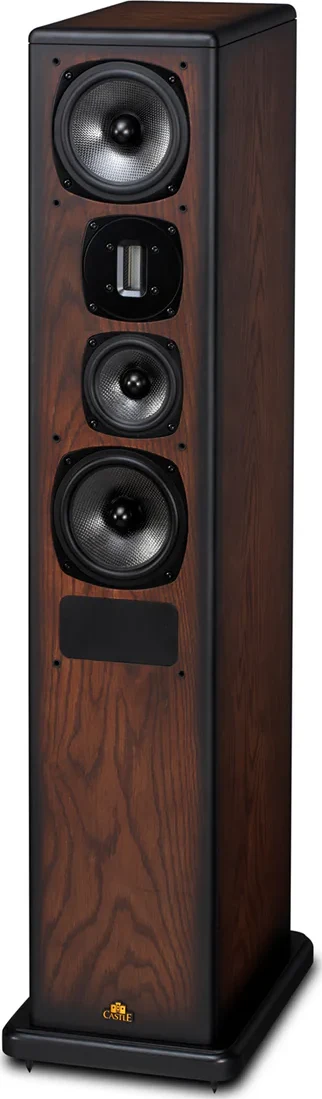

Avon 5

Product description
The flagship Avon floorstander — twin 150 mm woofers and a 115 mm midrange with a ribbon tweeter in a transmission-line tower, hand-finished in real-wood veneer. The largest Avon, reaching deeper for a medium-to-large room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Avon 535 Hz20 kHz89 dB8 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#327 of 648 floorstander
PowerPassive
Height1110 mm
Width210 mm
Depth365 mm
Footprint982 cm²
Space taken109 L
Weight24 kg
EnclosureTransmission line
Drivers2× 150 mm woofer, 1× 115 mm midrange, 1× tweeter (ribbon)
Crossover frequency300 / 3600 Hz
Frequency response35–20000 Hz
Sensitivity89 dB
Impedance8 Ω
Recommended amp25–100 W
Where to buyCheck availability ↗
Manufacturercastle.uk.com ↗
Product pageOpen product page ↗

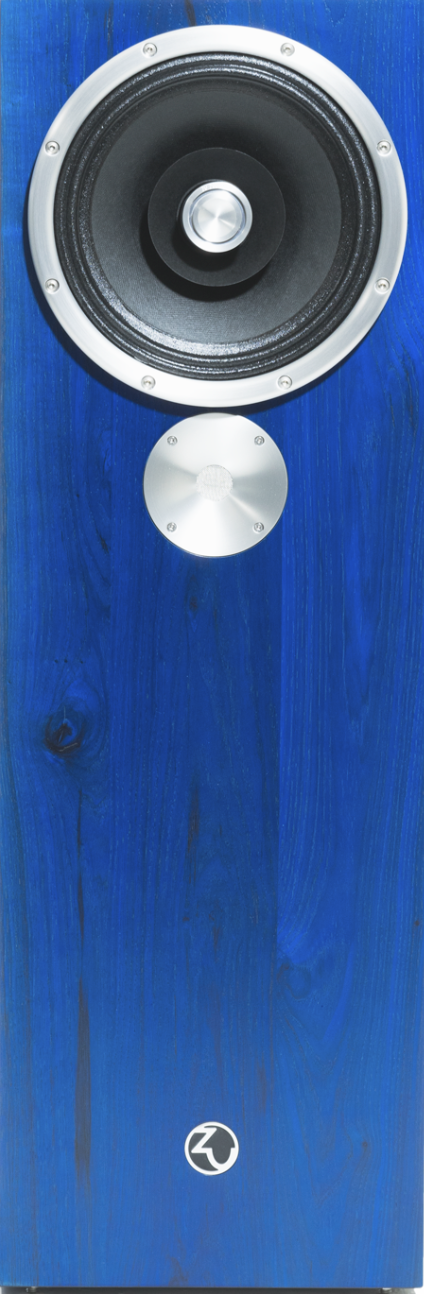

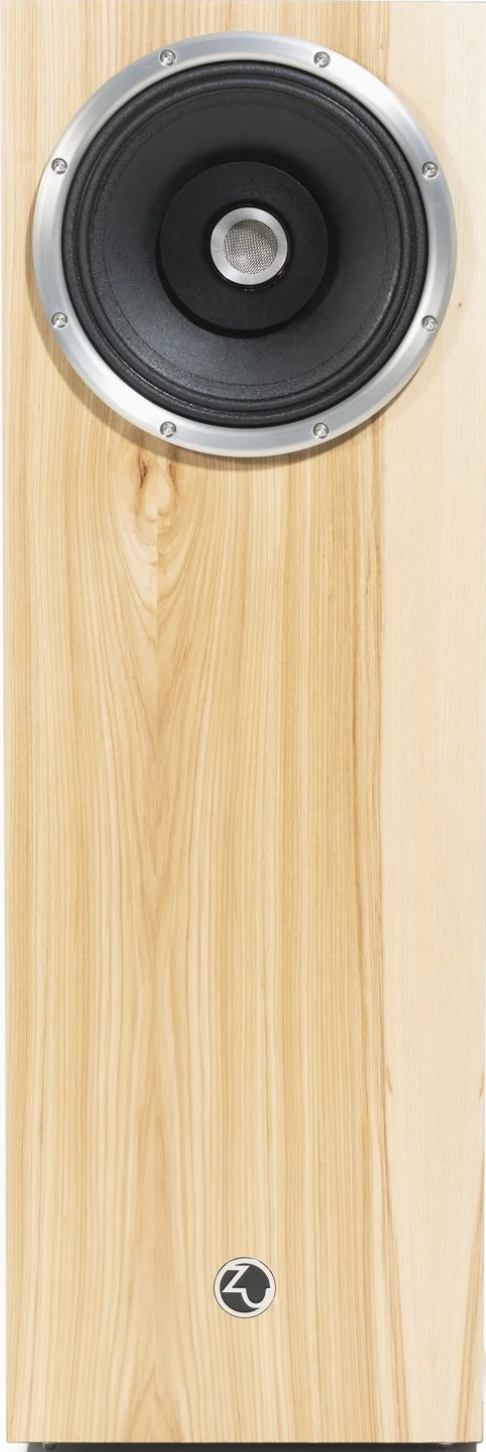

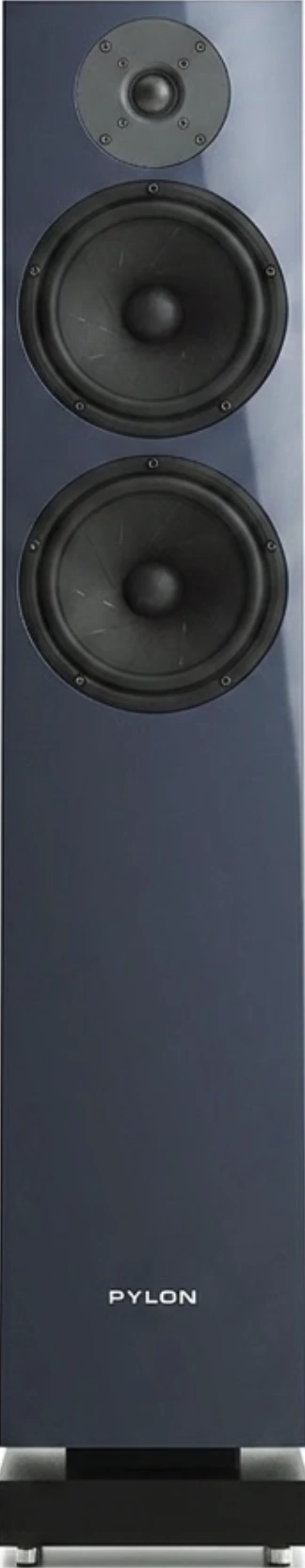

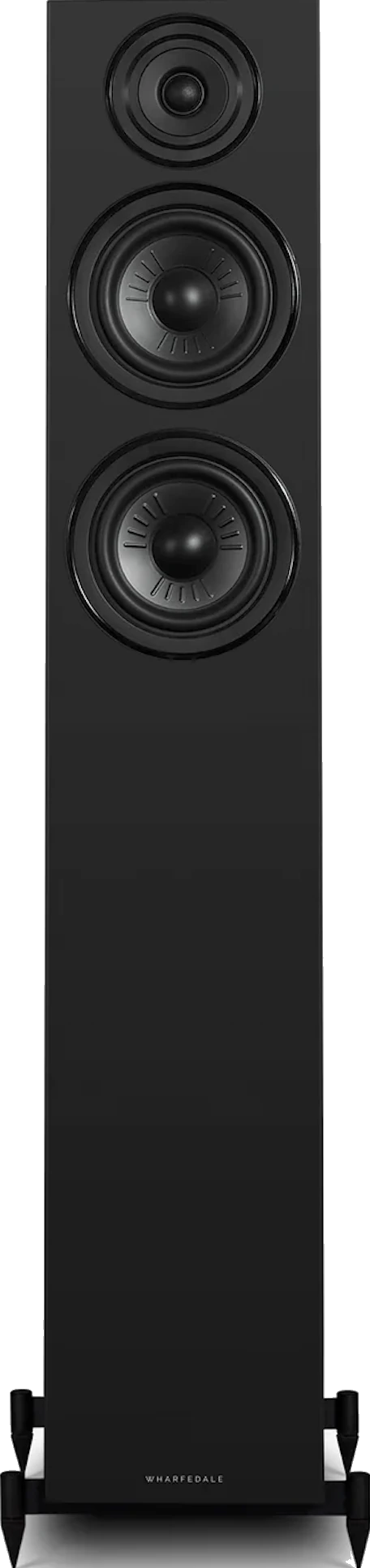

Suggested TrueScale comparisons

Tap any speaker to see it beside this one at true, real-world scale.
