Castle · Windsor · Bookshelf

Windsor Duke

Product description

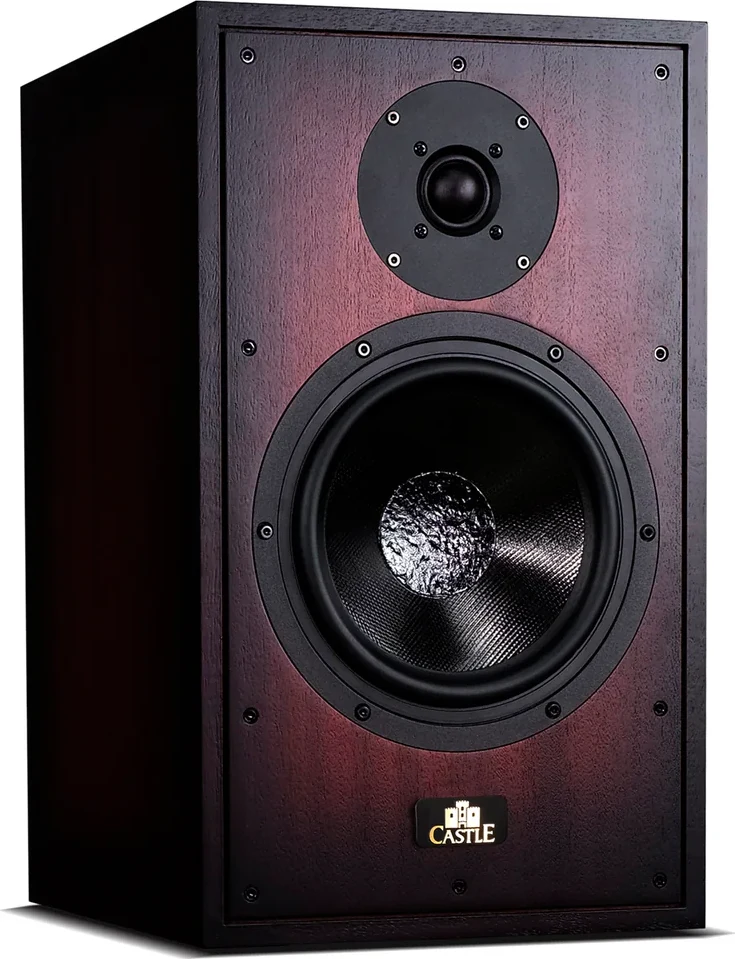

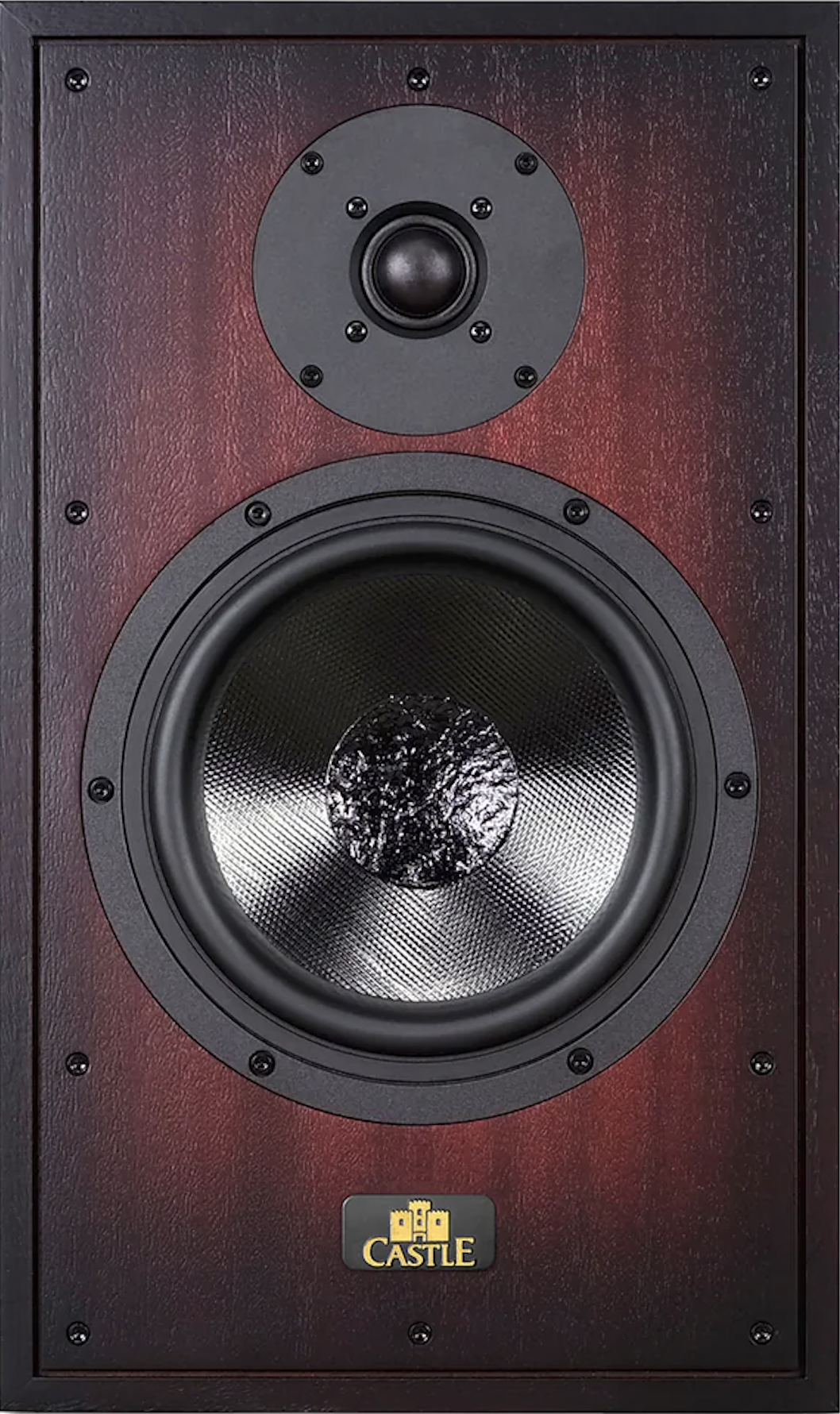

The larger standmount of Castle's premium Windsor range — a two-way with a 200 mm woven-polypropylene mid-bass and a 28 mm micro-fibre dome tweeter in a rear-ported cabinet, hand-finished in real-wood veneer. A substantial, refined bookshelf for a medium room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Windsor Duke52 Hz22 kHz90 dB8 Ω320 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#391 of 470 bookshelf
PowerPassive
Height470 mm
Width280 mm
Depth346 mm
Footprint969 cm²
Space taken45.5 L
Weight13.5 kg
EnclosureBass reflex, rear port
Drivers1× 200 mm mid-bass (woven polypropylene), 1× 28 mm tweeter (micro-fibre dome)
Crossover frequency2100 Hz
Frequency response52–22000 Hz (±3 dB)
Sensitivity90 dB
Impedance8 Ω (min 4.2 Ω)
Recommended amp30–150 W
MAP (USD)$5,760 / pair
Where to buyCheck availability ↗
Manufacturercastle.uk.com ↗
Product pageOpen product page ↗

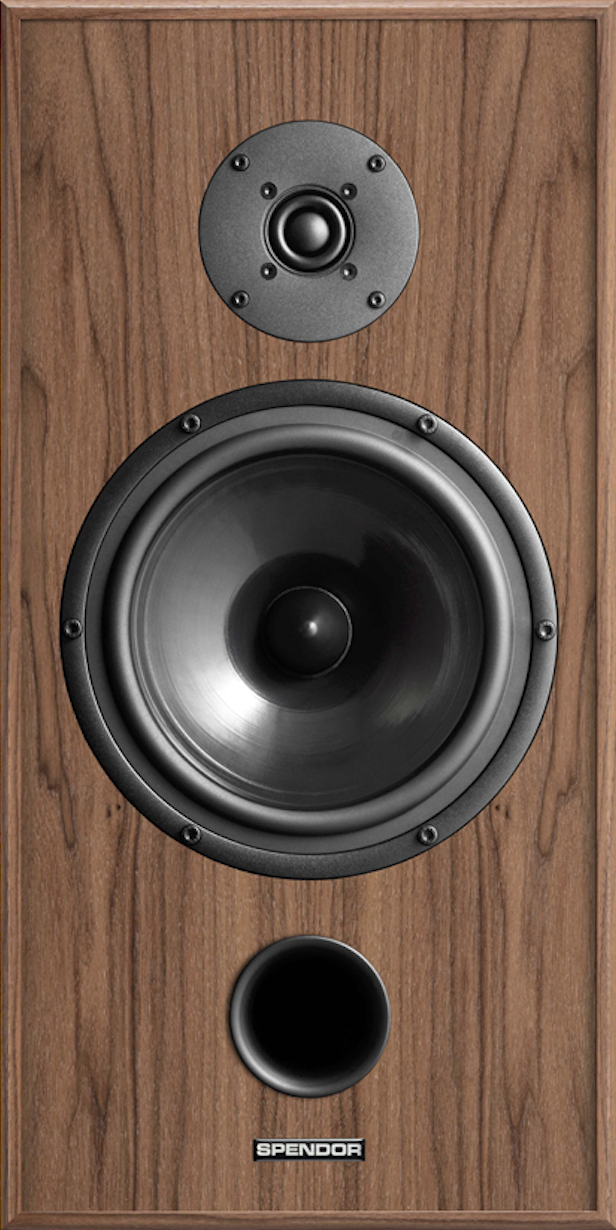

Suggested TrueScale comparisons
