Windsor Earl

Product description

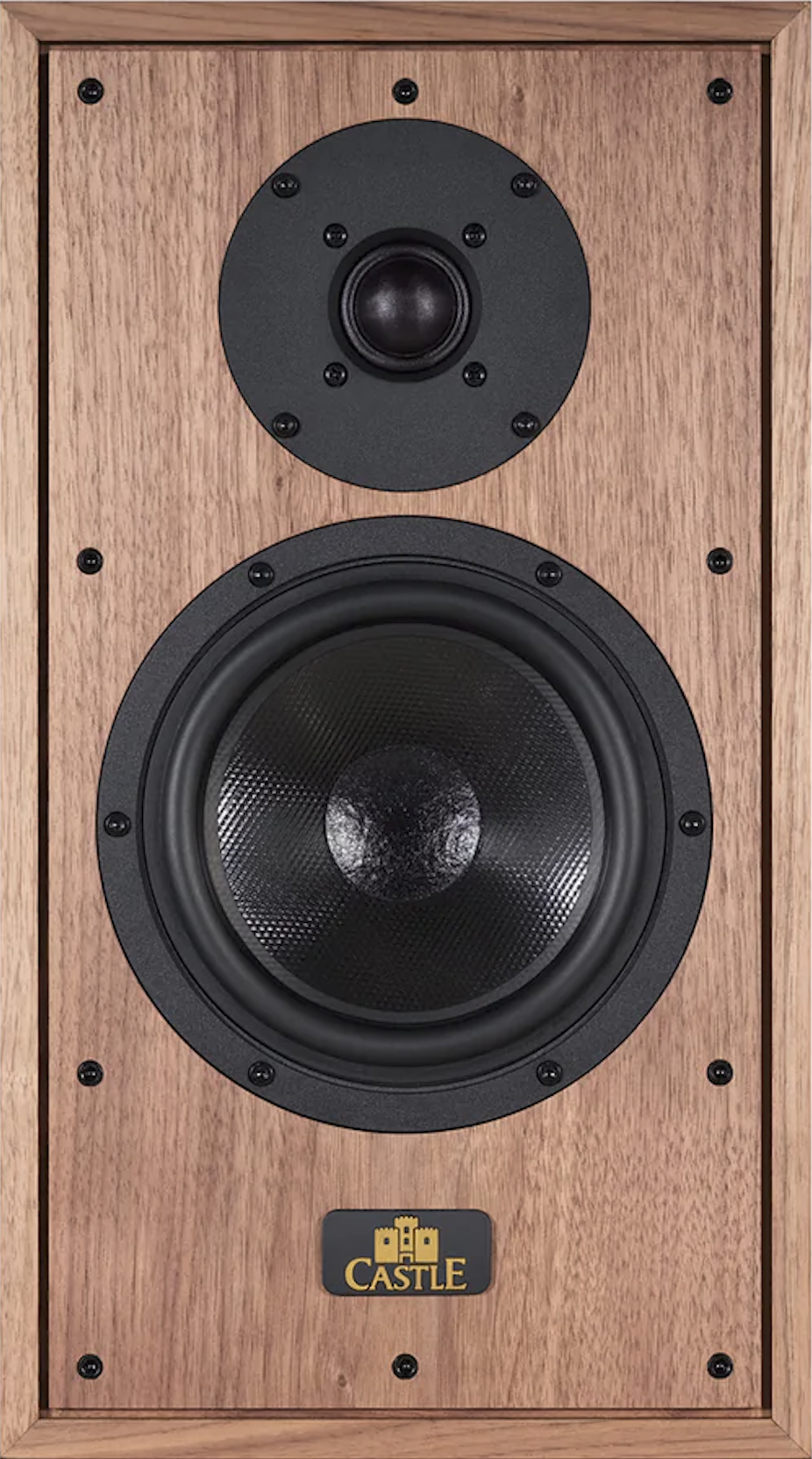

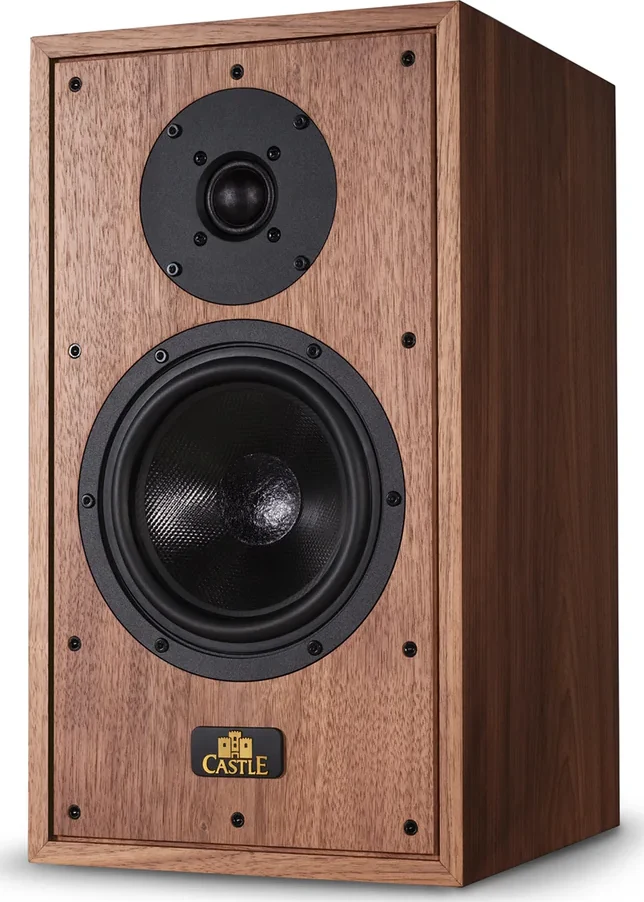

The compact standmount of Castle's premium Windsor range — a two-way with a 165 mm woven-polypropylene mid-bass and a 28 mm micro-fibre dome tweeter in a rear-ported cabinet, hand-finished in real-wood veneer. A refined bookshelf below the Windsor Duke for a small-to-medium room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Windsor Earl58 Hz22 kHz89 dB8 Ω220 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#358 of 470 bookshelf
PowerPassive
Height430 mm
Width240 mm
Depth296 mm
Footprint710 cm²
Space taken30.5 L
Weight9.5 kg
EnclosureBass reflex, rear port
Drivers1× 165 mm mid-bass (woven polypropylene), 1× 28 mm tweeter (micro-fibre dome)
Crossover frequency2200 Hz
Frequency response58–22000 Hz (±3 dB)
Sensitivity89 dB
Impedance8 Ω (min 4.3 Ω)
Recommended amp25–100 W
MAP (USD)$4,930 / pair
