Dynaudio · Evoke · Bookshelf

Evoke 10

Product description

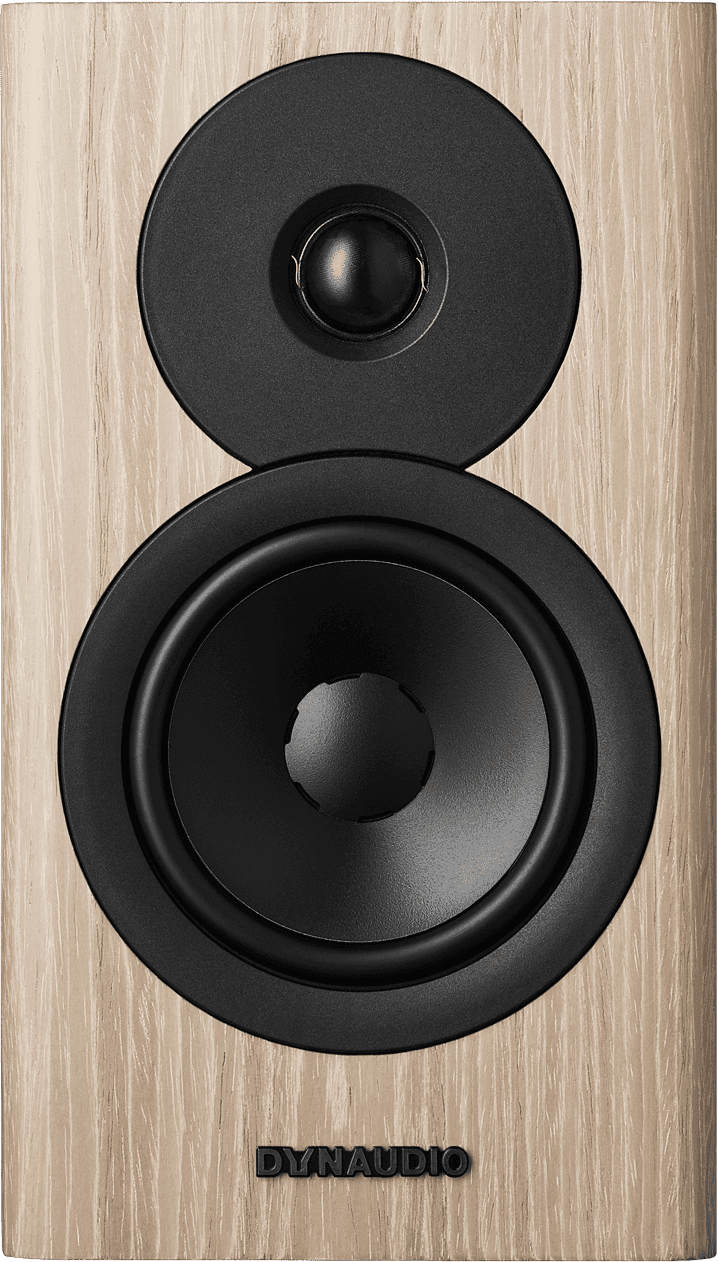

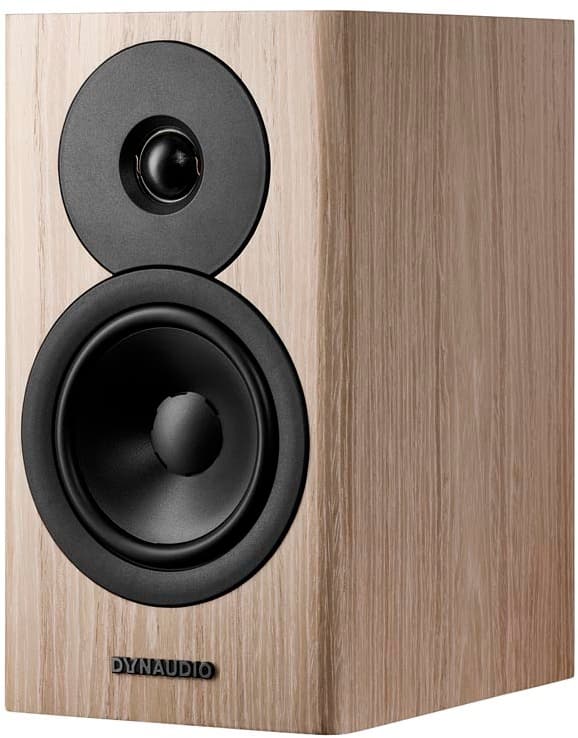

The compact stand-mount of the Evoke line — the 28 mm Cerotar soft-dome tweeter with a 14 cm MSP mid-bass in a heavily braced rear-ported cabinet. Clean dynamics and tonal accuracy in tight rooms, though its low 84 dB sensitivity rewards a capable amplifier.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Evoke 1047 Hz23 kHz84 dB6 Ω160 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#130 of 470 bookshelf
PowerPassive
Height315 mm
Width180 mm
Depth277 mm
Footprint499 cm²
Space taken15.7 L
Weight6.7 kg
EnclosureBass reflex, rear port
Drivers1× 28 mm tweeter (Cerotar soft dome with Hexis), 1× 140 mm mid-bass (MSP cone)
Crossover frequency1400 Hz
Frequency response47–23000 Hz (±3 dB)
Sensitivity84 dB
Impedance6 Ω
Power handling160 W
MAP (USD)$1,699 / pair
Where to buyCheck availability ↗
Manufacturerdynaudio.com ↗
Product pageOpen product page ↗
