Genelec · SAM · Studio monitor

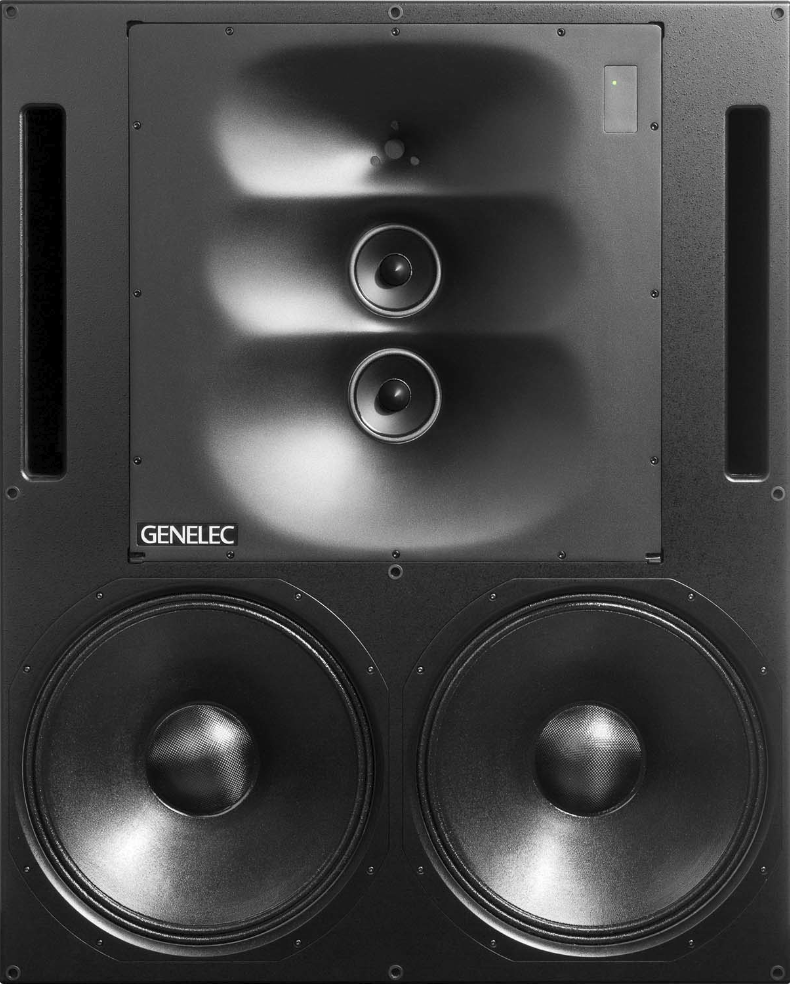

1235A
Product description
Two 15-inch woofers on a kilowatt each, a pair of 5-inch midranges and a compression tweeter: 3050 W and ≥130 dB short-term, in a 164 kg cabinet. This is the tier where a main monitor stops being furniture and becomes part of the building — it is designed to be flush-mounted, and the twin midranges keep the vertical pattern tight at the distances a large control room implies. SAM with GLM AutoCal. Sold individually. Made in Iisalmi, Finland.
Units
| Type | Studio monitor |
|---|---|
| HiFi ladder position | #91 of 111 studio monitor |
| Power | Active |
| Height | 820 mm |
| Width | 1105 mm |
| Depth | 650 mm |
| Weight | 164 kg |
| Enclosure | Bass reflex, rear port |
| Drivers | 1× 25 mm tweeter (compression driver in a DCW waveguide), 2× 125 mm midrange (cone), 2× 381 mm woofer (cone) |
| Frequency response | 31–20000 Hz (±2 dB) |
| Amplification (per driver) | tweeter 250 W (class D) · midrange 400 W (class D) · woofer 1000 W (class D) |
| Total amp power | 3050 W |
| Max SPL @ 1 m | 130 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced, AES/EBU (XLR), Ethernet |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | Custom DSP / app |
| Primary + secondary pair | No |
| Wireless inter-speaker link | No |
| Latency | — |
| Idle power | — |
| Max consumption | — |
