Performance — where it sits in the catalog
| Bass reach | Treble reach | Cone area | |
|---|---|---|---|
| 8340A | 38 Hz | 22 kHz | 217 cm² |
| Median | 39 Hz | 24 kHz | 332 cm² |
How to read this chart
Each axis spans the range the 114 studio monitors in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 96 active studio monitors — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Sensitivity, Easy load — the maker publishes no figure. Active speakers quote no sensitivity and no impedance, because with the amplifier inside both describe the electronics rather than the cabinet.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.

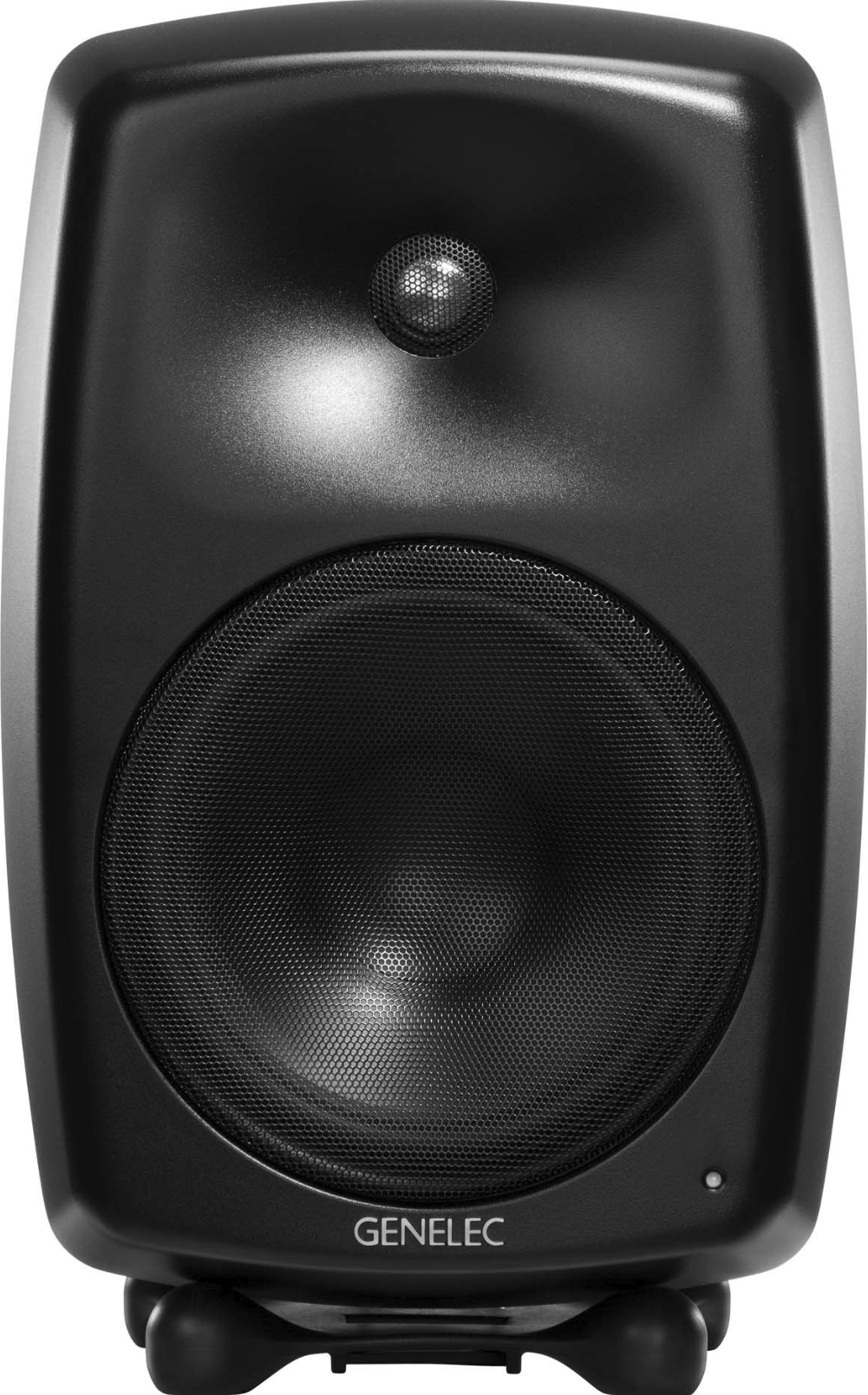

Genelec · 8300 Series · Studio monitor
8340A
Performance — where it sits in the catalog
| Bass reach | Treble reach | Cone area | |
|---|---|---|---|
| 8340A | 38 Hz | 22 kHz | 217 cm² |
| Median | 39 Hz | 24 kHz | 332 cm² |
How to read this chart
Each axis spans the range the 114 studio monitors in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 96 active studio monitors — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Sensitivity, Easy load — the maker publishes no figure. Active speakers quote no sensitivity and no impedance, because with the amplifier inside both describe the electronics rather than the cabinet.
| Type | Studio monitor |
|---|---|
| HiFi ladder position | #49 of 114 studio monitor |
| Power | Active |
| Height | 365 mm |
| Width | 237 mm |
| Depth | 223 mm |
| Footprint | 529 cm² |
| Space taken | 19.3 L |
| Weight | 8.4 kg |
| Enclosure | Bass reflex, rear port |
| Drivers | 1× 19 mm tweeter (metal dome), 1× 165 mm mid-bass (cone) |
| Crossover frequency | 3000 Hz |
| Frequency response | 38–22000 Hz (±1.5 dB) |
| MAP (USD) | $1,895 each |
| Amplification (per driver) | tweeter 150 W (class D) · mid-bass 150 W (class D) |
| Total amp power | 300 W |
| Max SPL @ 1 m | 110 dB |
| Hi-res audio | — |
| Wired inputs | XLR balanced, AES/EBU (XLR), Ethernet |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | Custom DSP / app |
| Primary + secondary pair | — |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | genelec.com ↗ |
| Product page | Open product page ↗ |
