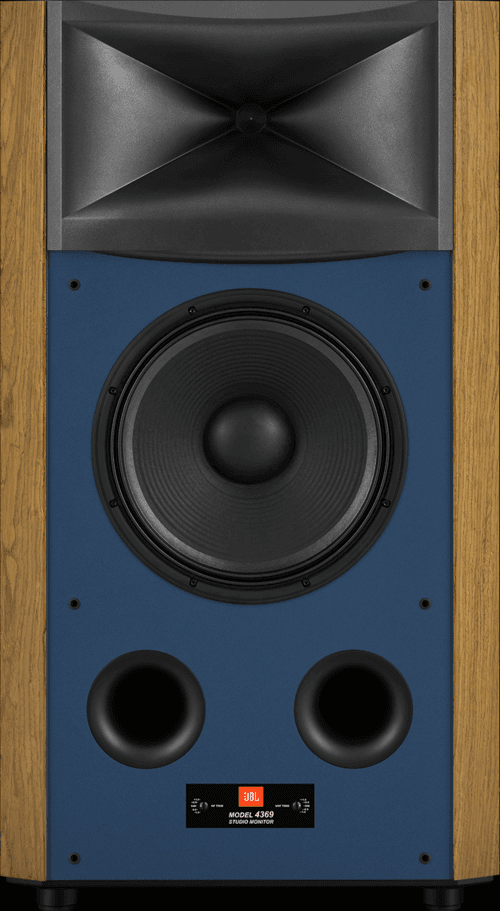

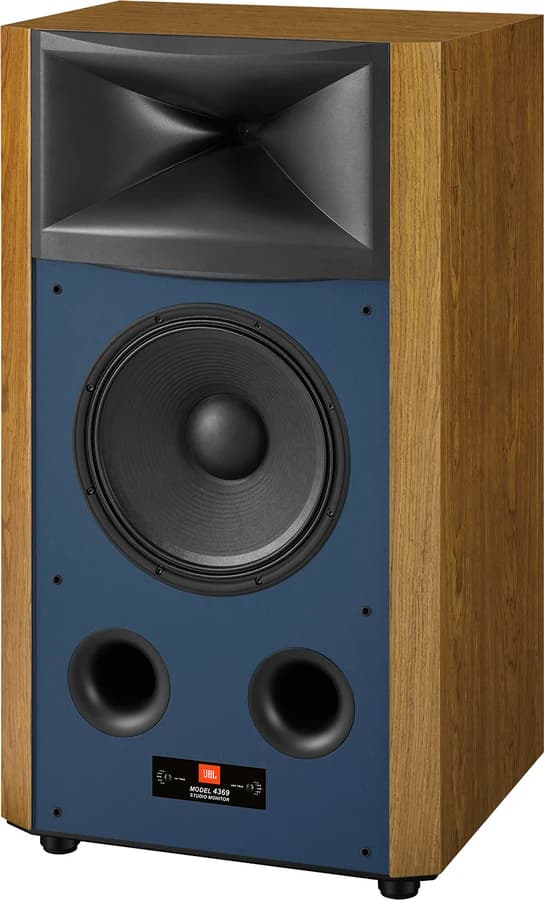

JBL · Studio Monitor · Floorstander
4369
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
Flagship 2-way of JBL's modern Studio Monitor line — a 380 mm 2219Nd Differential Drive woofer (cast aluminum, dual neodymium motors, dual 3-inch voice coils) meets a 75 mm D2830B dual-diaphragm compression driver in a Sonoglass HDI horn. Crosses at 800 Hz; 93 dB sensitivity into a 6-ohm load asks little of an amp, while the dual front-firing ports and Walnut/Black Walnut cabinets keep the room placement forgiving.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #192 of 337 floorstander |
| Power | Passive |
| Height | 1120 mm |
| Width | 615 mm |
| Depth | 470 mm |
| Weight | 63.5 kg |
| Enclosure | bass-reflex-front |
| Drivers | 1× 75 mm tweeter (Annular Ring compression driver), 1× 380 mm woofer (Cast-aluminum frame woofer) |
| Crossover frequency | 800 Hz |
| Frequency response | 28–25000 Hz (±6 dB) |
| Sensitivity | 93 dB |
| Impedance | 6 Ω |
| Recommended amp | 350 W |
| MAP (USD) | $23,000 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | global.jbl.com ↗ |
| Product page | Open product page ↗ |
