JBL · HDI · Bookshelf
HDI-1600
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

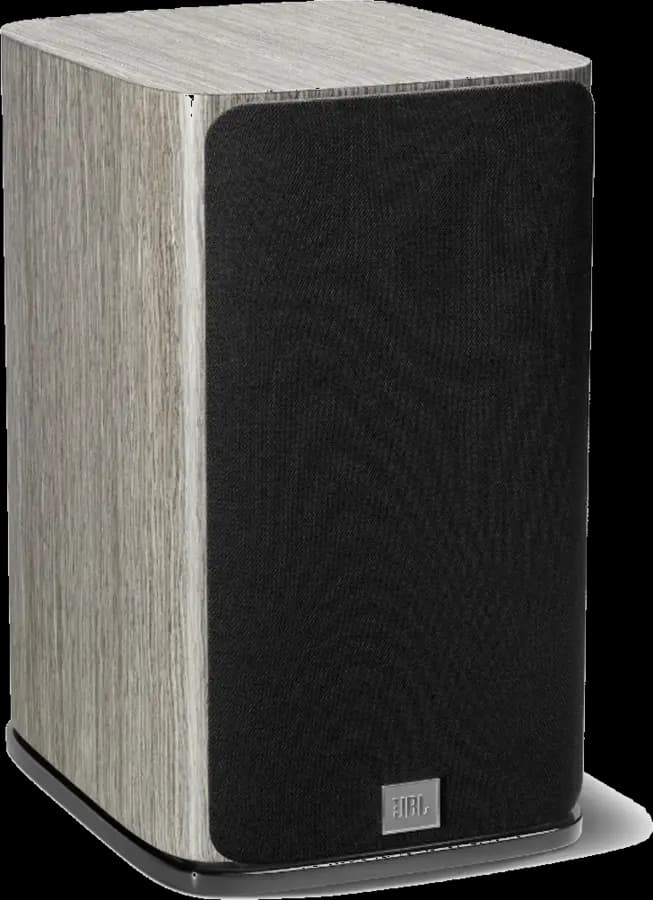

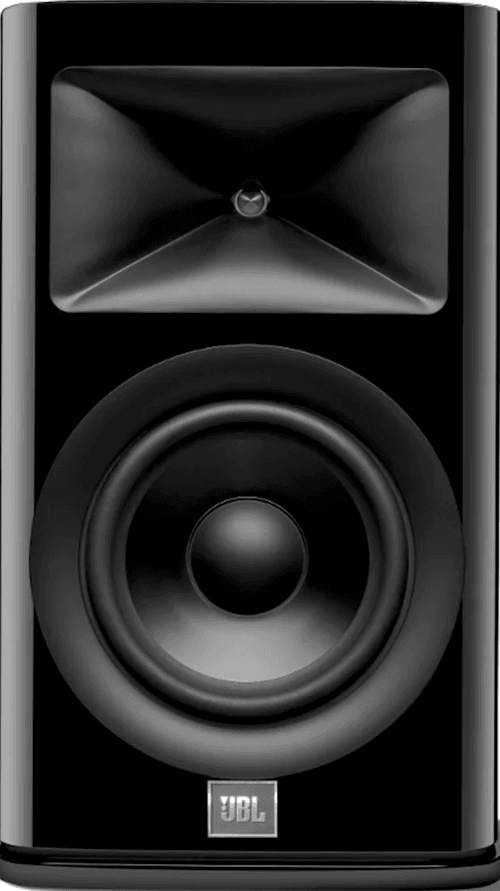

Compact two-way stand-mount in JBL's High-Definition Imaging line — pairs the patented 2410H-2 25 mm Teonex compression driver loaded into the HDI horn with a 165 mm Advanced Aluminum Matrix cone woofer in a rear-ported cabinet. Designed at JBL's Northridge, California engineering facility around the same waveguide geometry used in the bigger HDI-3600 and HDI-3800 towers.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #137 of 255 bookshelf |
| Power | Passive |
| Height | 370 mm |
| Width | 208 mm |
| Depth | 289 mm |
| Weight | 9.96 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× 25 mm tweeter (Teonex compression driver), 1× 165 mm mid-bass (Advanced Aluminum Matrix cone) |
| Crossover frequency | 1900 Hz |
| Frequency response | 40–30000 Hz (±6 dB) |
| Sensitivity | 85 dB |
| Impedance | 4 Ω |
| Recommended amp | 15–200 W |
| MAP (USD) | $1,800 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | jbl.com ↗ |
| Product page | Open product page ↗ |
