JBL · Summit · Floorstander

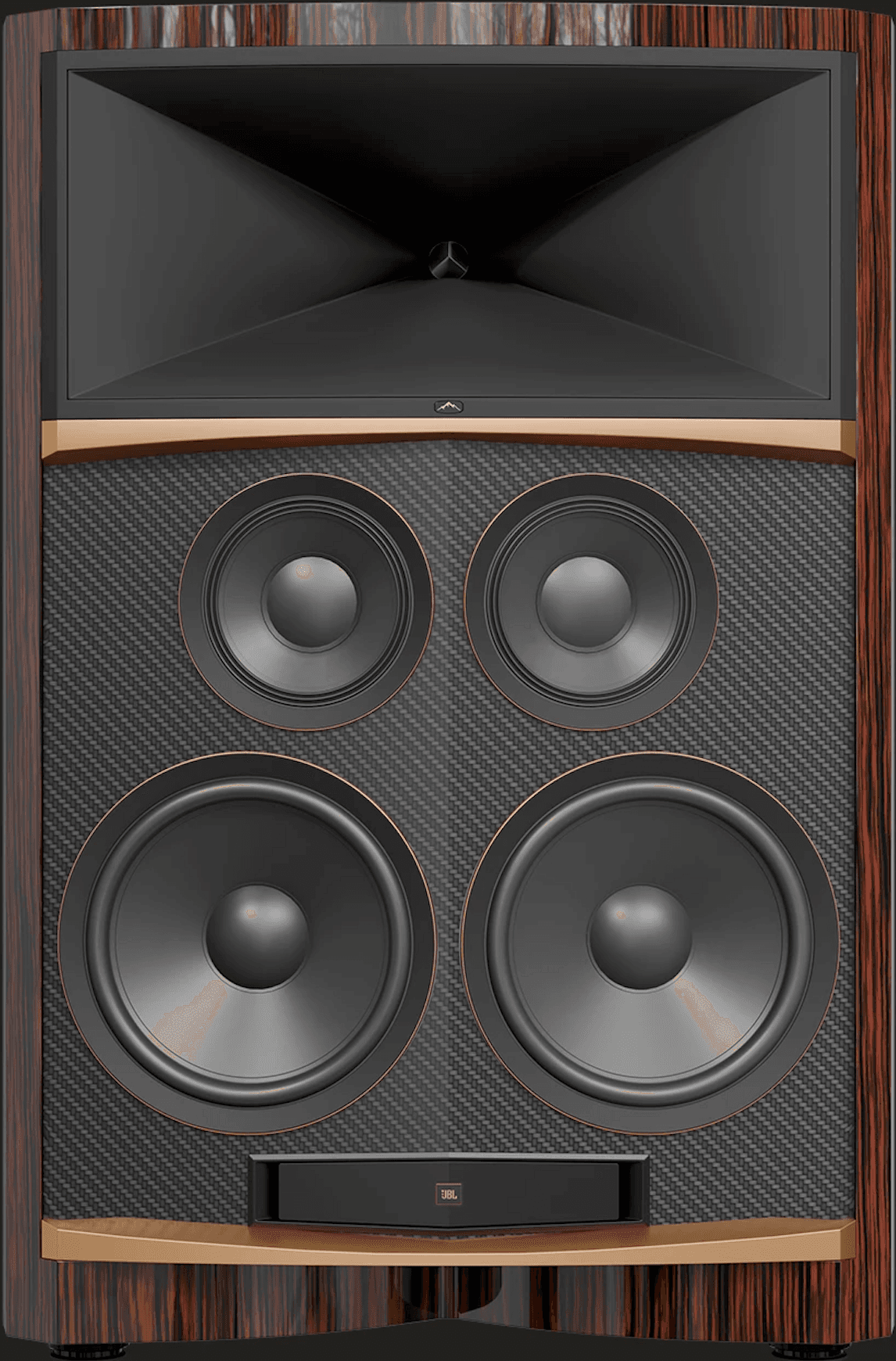

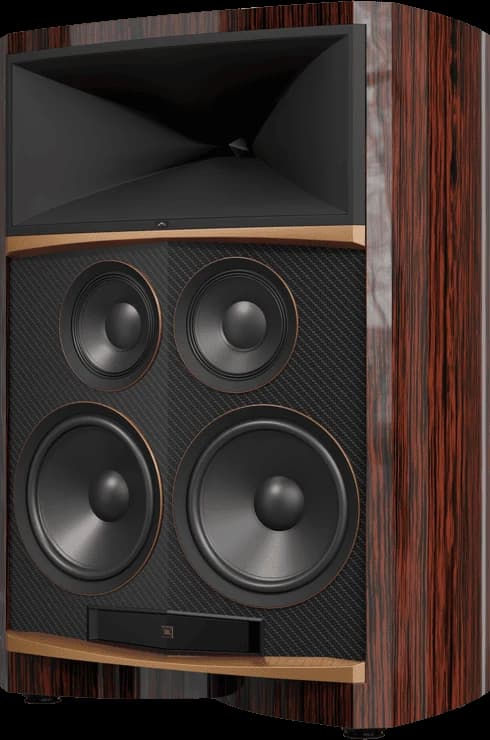

Summit Everest
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description
JBL Summit's 3.5-way flagship reference loudspeaker — a compression driver on an HDI Sonoglass acoustic horn handles high frequencies, two 250 mm JMW250SC HC4 mid-bass drivers cover the mids, and two 380 mm JW380SC HC4 woofers handle the bass (one with extended 0.5-way low-end bandpass at 270 Hz). 4 Ω nominal (2.7 Ω min), 96 dB sensitivity, 25–1,200 W RMS amplifier window, 237 kg per cabinet; dual rear flared bass ports, OCC silver-plated copper internal wiring, tri-amp/tri-wire capable.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #157 of 171 floorstander |
| Power | Passive |
| Height | 1443 mm |
| Width | 950 mm |
| Depth | 695 mm |
| Weight | 237.2 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× 38 mm tweeter (compression diaphragm), 2× 250 mm midrange (Hybrid Carbon Cellulose Composite (HC4) cone), 2× 380 mm woofer (Hybrid Carbon Cellulose Composite (HC4) cone) |
| Frequency response | 20–23000 Hz (±6 dB) |
| Sensitivity | 96 dB |
| Impedance | 4 Ω (min 2.7 Ω) |
| Recommended amp | 25–1200 W |
| Manufacturer | jbl.com ↗ |
| Product page | Open product page ↗ |
