Klipsch · Heritage · Floorstander

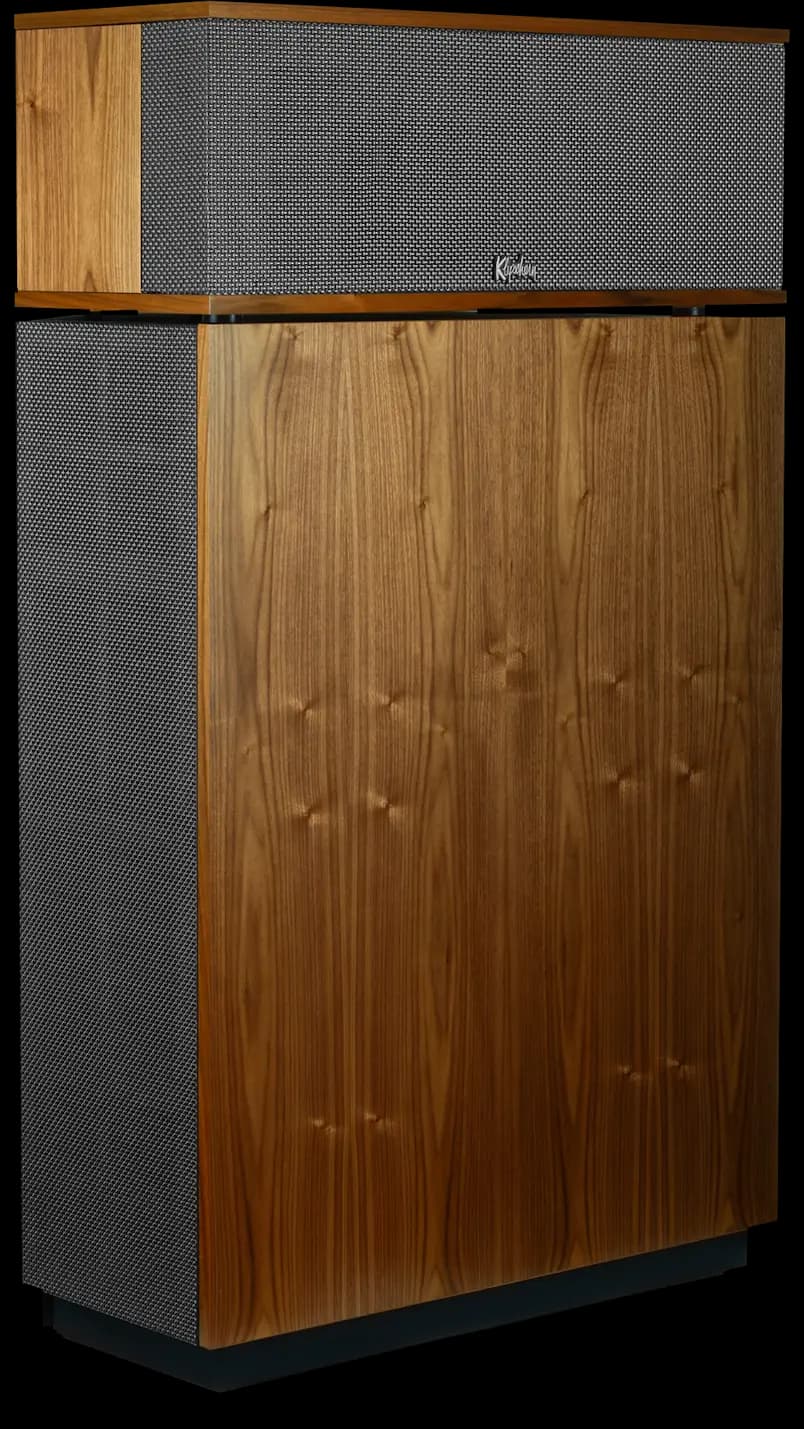

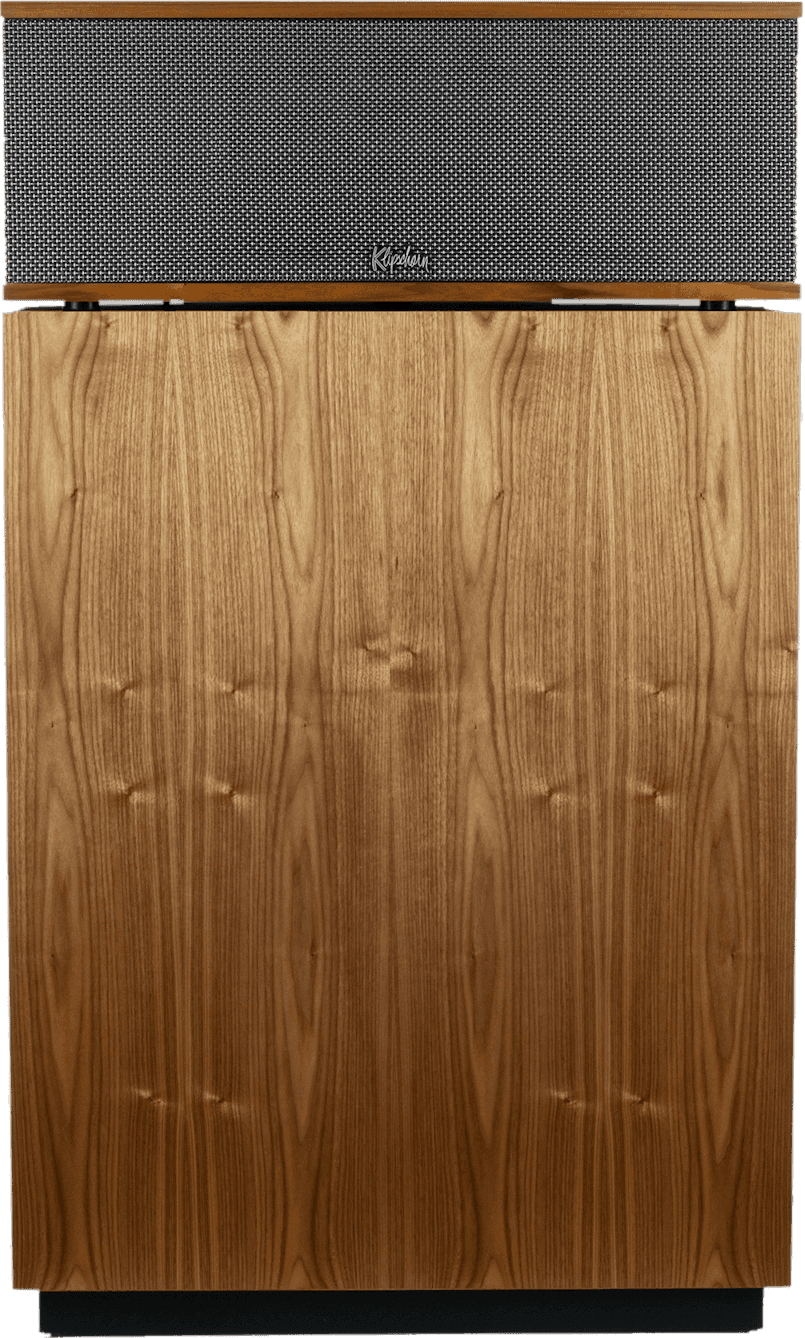

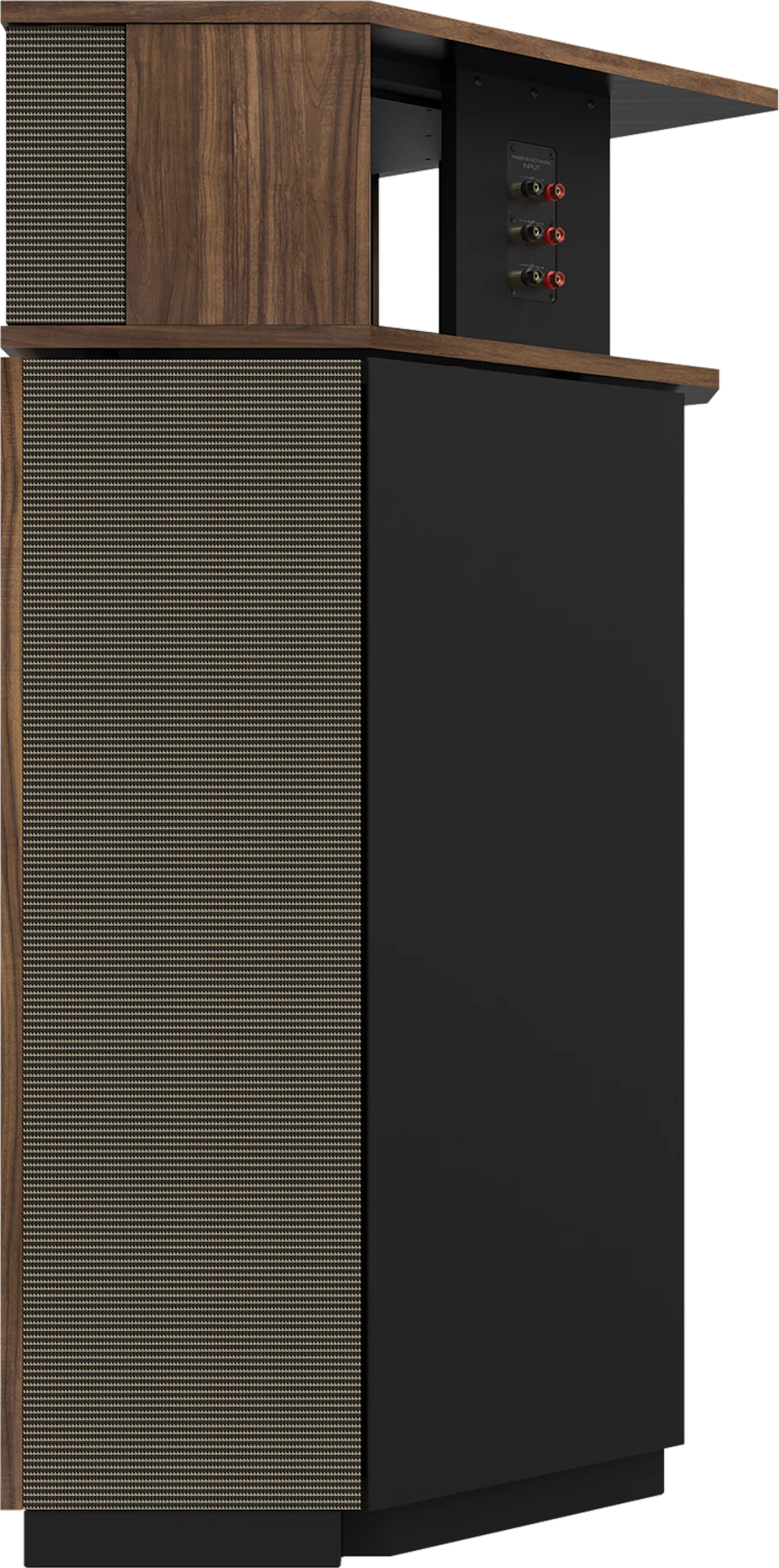

Klipschorn AK6

Product description
The corner-loaded Klipschorn, continuously produced since 1946 — a fully horn-loaded three-way designed so the room corners become part of the bass horn. The AK6 adds a fully enclosed cabinet, and at 105 dB sensitivity it delivers huge, effortless dynamics from very little power in a large room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Klipschorn AK633 Hz20 kHz105 dB8 Ω1165 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#553 of 648 floorstander
PowerPassive
Height1346 mm
Width794 mm
Depth718 mm
Footprint5701 cm²
Space taken767.3 L
Weight100 kg
Enclosure—
Drivers1× 25 mm tweeter (K-771-T polyimide compression diaphragm), 1× 51 mm midrange (K-55-X phenolic compression diaphragm), 1× 381 mm woofer (K-33-E fiber-composite cone)
Crossover frequency450 / 4500 Hz
Frequency response33–20000 Hz (±4 dB)
Sensitivity105 dB
Impedance8 Ω
Power handling100 W
MAP (USD)$14,998 / pair
Where to buyCheck availability ↗
Manufacturerklipsch.com ↗
Product pageOpen product page ↗
