Klipsch · Ojas · Bookshelf

kO-R1

Product description

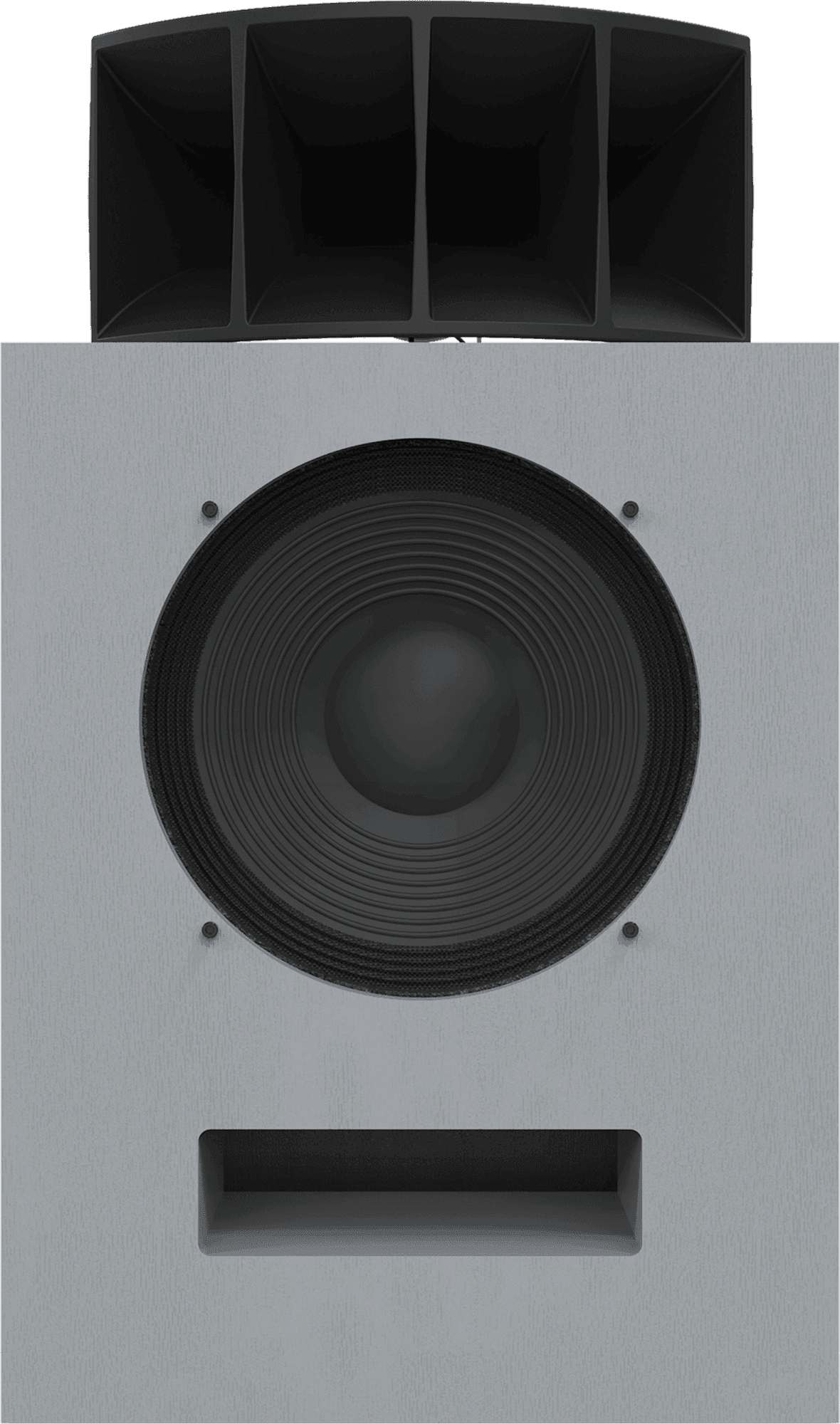

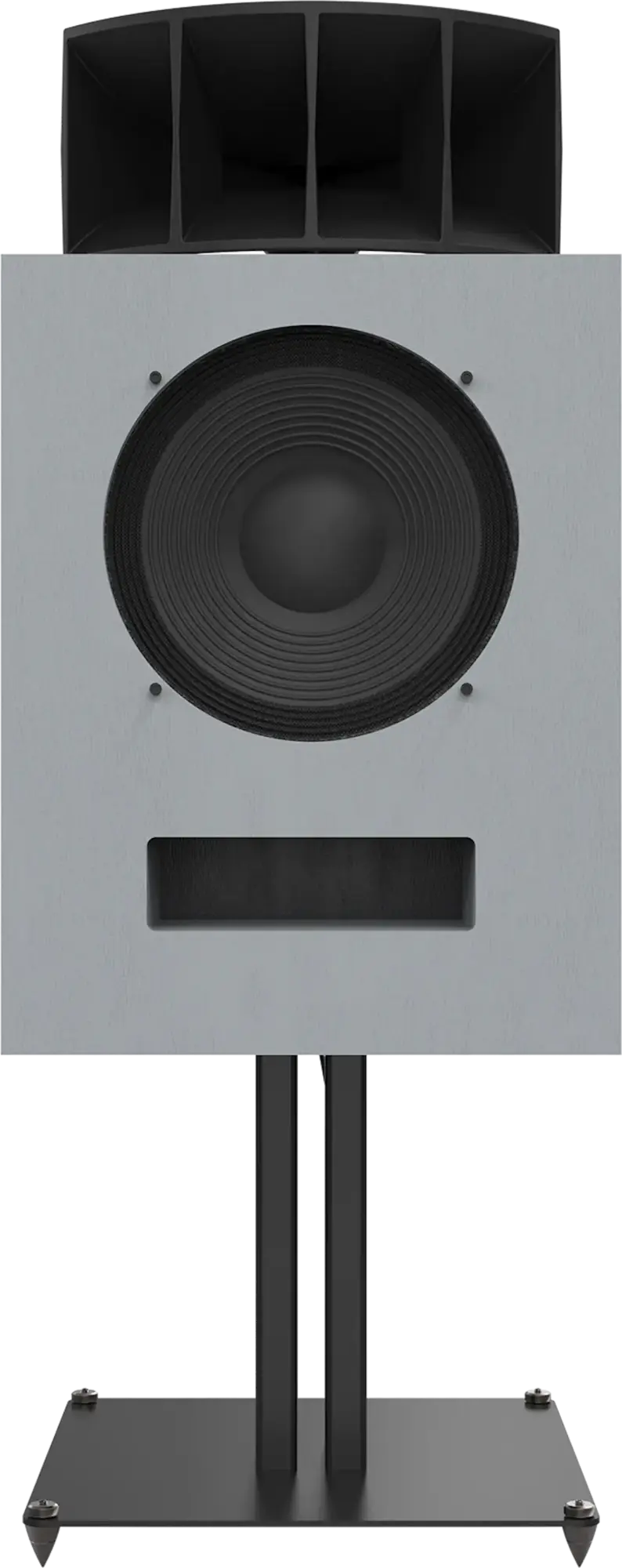

A limited-edition collaboration between Klipsch and OJAS, hand-built in Hope, Arkansas — a two-way in a 13-ply Baltic-birch cabinet with a 12-inch cellulose-fibre woofer and a titanium-diaphragm horn driver, crossed at 970 Hz. Its 97.5 dB sensitivity and utilitarian design target the loft/near-field DIY-horn scene rather than a conventional living room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
kO-R151 Hz20 kHz97.5 dB8 Ω736 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#461 of 470 bookshelf
PowerPassive
Height714 mm
Width420 mm
Depth330 mm
Footprint1386 cm²
Space taken99 L
Weight23.6 kg
EnclosureBass reflex, front port
Drivers1× 25 mm tweeter (K-706 titanium compression diaphragm), 1× 305 mm woofer (K-28-E paper cone)
Crossover frequency970 Hz
Frequency response51–20000 Hz (±3 dB)
Sensitivity97.5 dB
Impedance8 Ω (min 4.45 Ω)
Power handling250 W
MAP (USD)$8,498 / pair
