Magnat · Monitor Reference · Floorstander
Monitor Reference 5A
$799 / pairCheck availability ↗
Product description
The Monitor Reference 2A's electronics and connection list moved into a floorstander: 2 × 60 W of Class D in the right-hand cabinet, driving itself and a passive twin. The layout is 2.5-way — two 170 mm coated-paper cones under a 25 mm dome, the lower one rolling off early to reinforce the bass rather than duplicate the midrange — which takes the bottom end to 28 Hz from a tower only 205 mm wide. Rear Airflex port, crossover at 3.2 kHz. HDMI ARC, optical, Bluetooth 5.0 aptX, a 3.5 mm jack and an RCA pair with a switchable MM phono stage, all on the back of the active speaker. Matt-black baffle, black textured veneer.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #33 of 494 floorstander |
| Power | Active |
| Height | 908 mm |
| Width | 205 mm |
| Depth | 282 mm |
| Weight | 14.7 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× 25 mm tweeter (dome), 1× 170 mm mid-bass (coated paper cone), 1× 170 mm woofer (coated paper cone) |
| Crossover frequency | 3200 Hz |
| Frequency response | 28–40000 Hz |
| MAP (USD) | $799 / pair |
| Amplification (per driver) | — |
| Total amp power | 120 W |
| Max SPL @ 1 m | — |
| Hi-res audio | — |
| Wired inputs | RCA Phono, RCA, Optical (Toslink), HDMI ARC |
| Streaming / wireless | Bluetooth |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | Yes |
| Wireless inter-speaker link | No |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | magnat.com ↗ |
| Product page | Open product page ↗ |

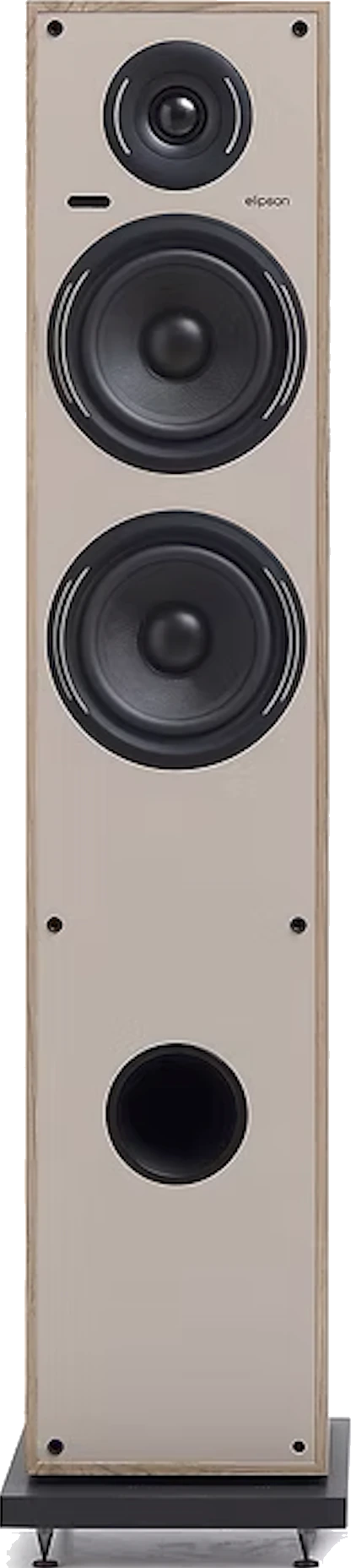

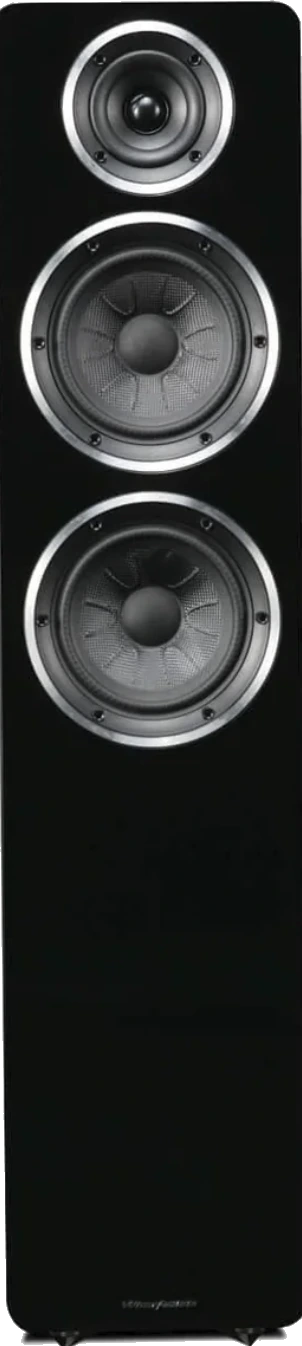

Suggested TrueScale comparisons
