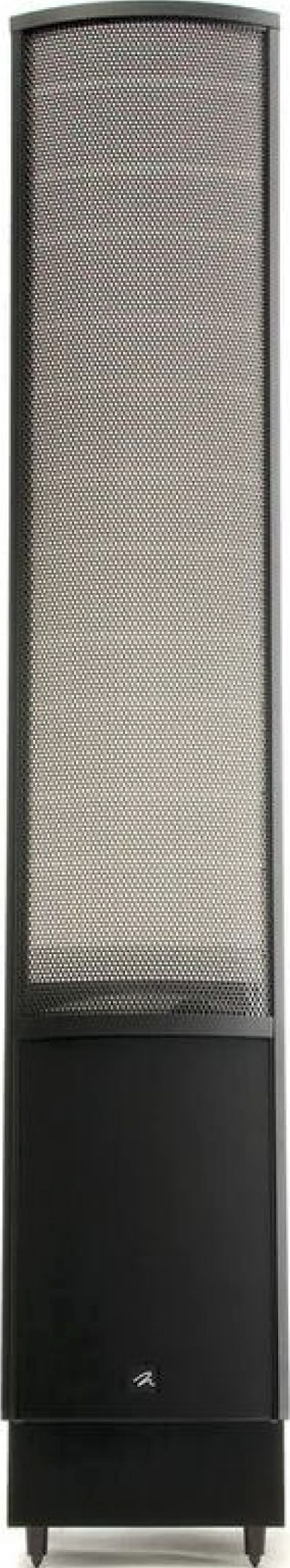

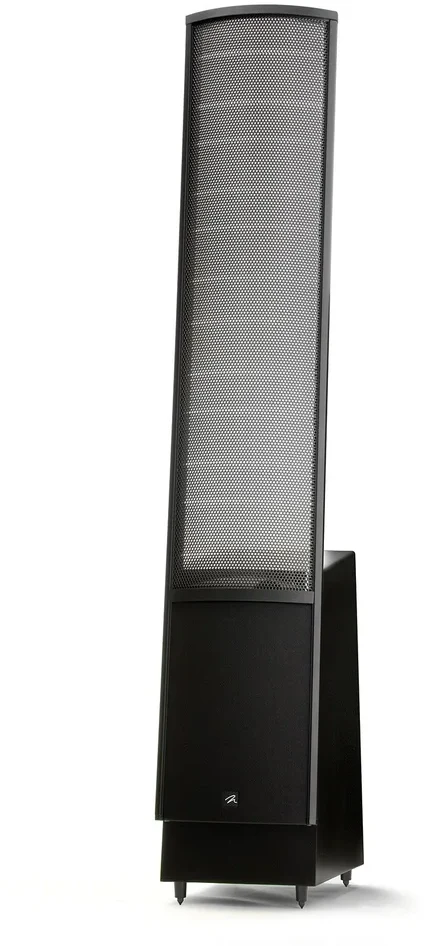

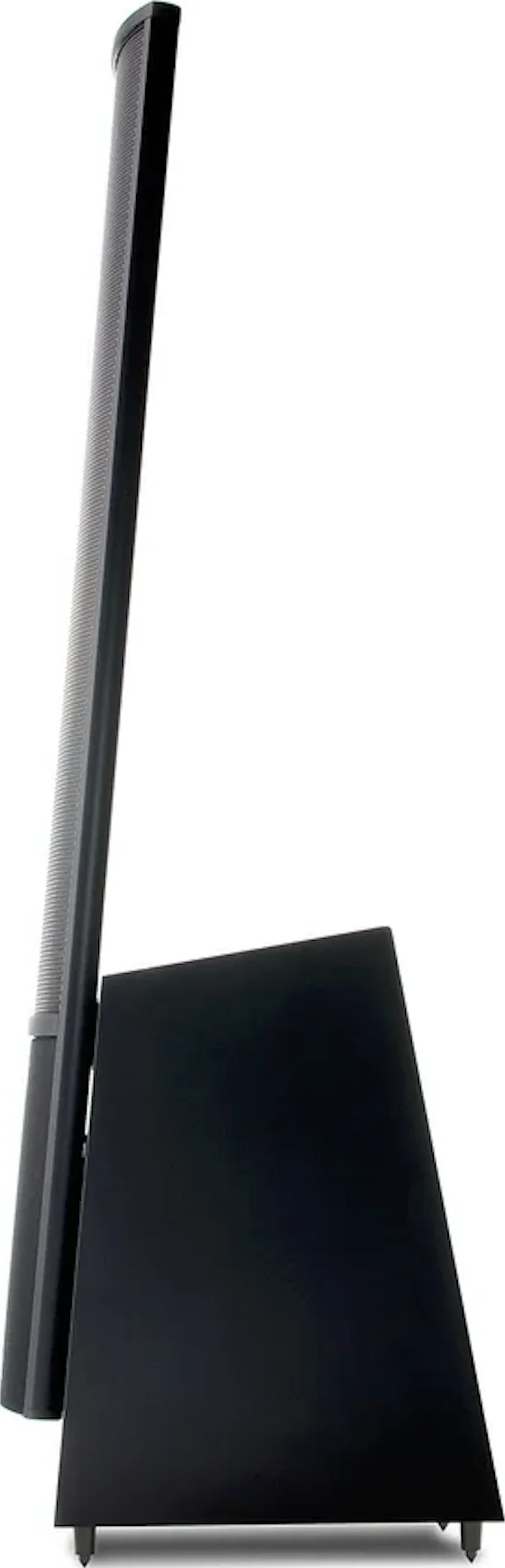

MartinLogan · ElectroMotion · Floorstander

ElectroMotion ESL

Product description
The entry point to MartinLogan's hybrid electrostatics — a curved 86 × 22 cm XStat panel reproduces midrange and treble with a near-massless diaphragm, crossed to a single 203 mm doped-fibre woofer in a rear-ported cabinet. The panel's see-through transparency is the whole appeal, but it beams narrowly and its impedance dips hard at the top, so it wants a stable amplifier and space from the wall.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
ElectroMotion ESL42 Hz22 kHz91 dB6 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#544 of 648 floorstander
PowerPassive
Height1323 mm
Width229 mm
Depth414 mm
Footprint1014 cm²
Space taken134.2 L
Weight16.1 kg
EnclosureBass reflex, rear port
Drivers1× midrange (electrostatic (XStat CLS)), 1× 203 mm woofer (doped-fibre cone)
Crossover frequency500 Hz
Frequency response42–22000 Hz (±3 dB)
Sensitivity91 dB
Impedance6 Ω (min 1.6 Ω)
Recommended amp20–300 W
MAP (USD)$2,500 / pair
Where to buyCheck availability ↗
Manufacturermartinlogan.com ↗
Product pageOpen product page ↗
