MartinLogan · ElectroMotion · Floorstander

ElectroMotion ESL X

Product description

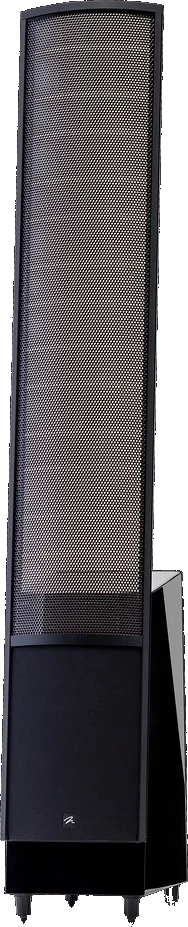

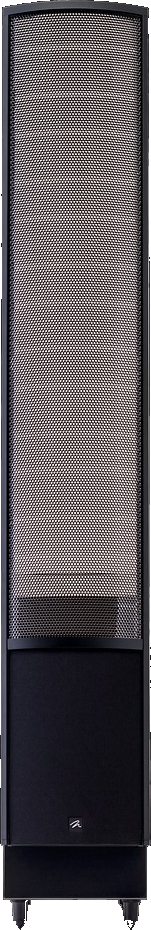

The larger ElectroMotion hybrid — a taller 102 × 22 cm XStat panel over twin 203 mm woofers, rear-ported. The extra panel area and second woofer give more output and deeper bass than the ESL, making it the ElectroMotion to pick for a medium-to-large room, still on a demanding load.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
ElectroMotion ESL X41 Hz22 kHz91 dB6 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#593 of 648 floorstander
PowerPassive
Height1503 mm
Width239 mm
Depth526 mm
Footprint1283 cm²
Space taken192.9 L
Weight23.6 kg
EnclosureBass reflex, rear port
Drivers1× midrange (electrostatic (XStat CLS)), 2× 203 mm woofer (paper cone)
Crossover frequency400 Hz
Frequency response41–22000 Hz (±3 dB)
Sensitivity91 dB
Impedance6 Ω (min 1.6 Ω)
Recommended amp20–400 W
MAP (USD)$4,000 / pair
Where to buyCheck availability ↗
Manufacturermartinlogan.com ↗
Product pageOpen product page ↗
