Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | |
|---|---|---|---|---|
| Motion XT B100 | 45 Hz | 25 kHz | 93 dB | 4 Ω |
| Median | 45 Hz | 25 kHz | 87 dB | 6 Ω |
How to read this chart
Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
MartinLogan · Motion XT · Bookshelf

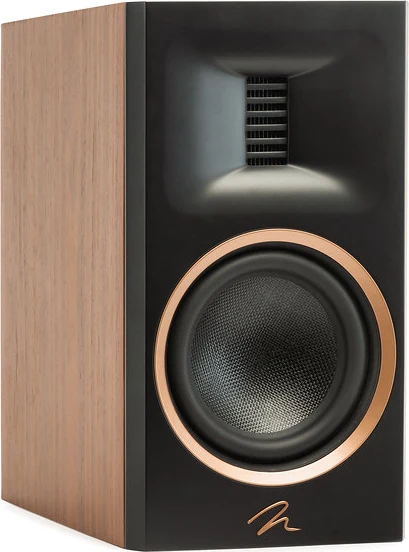

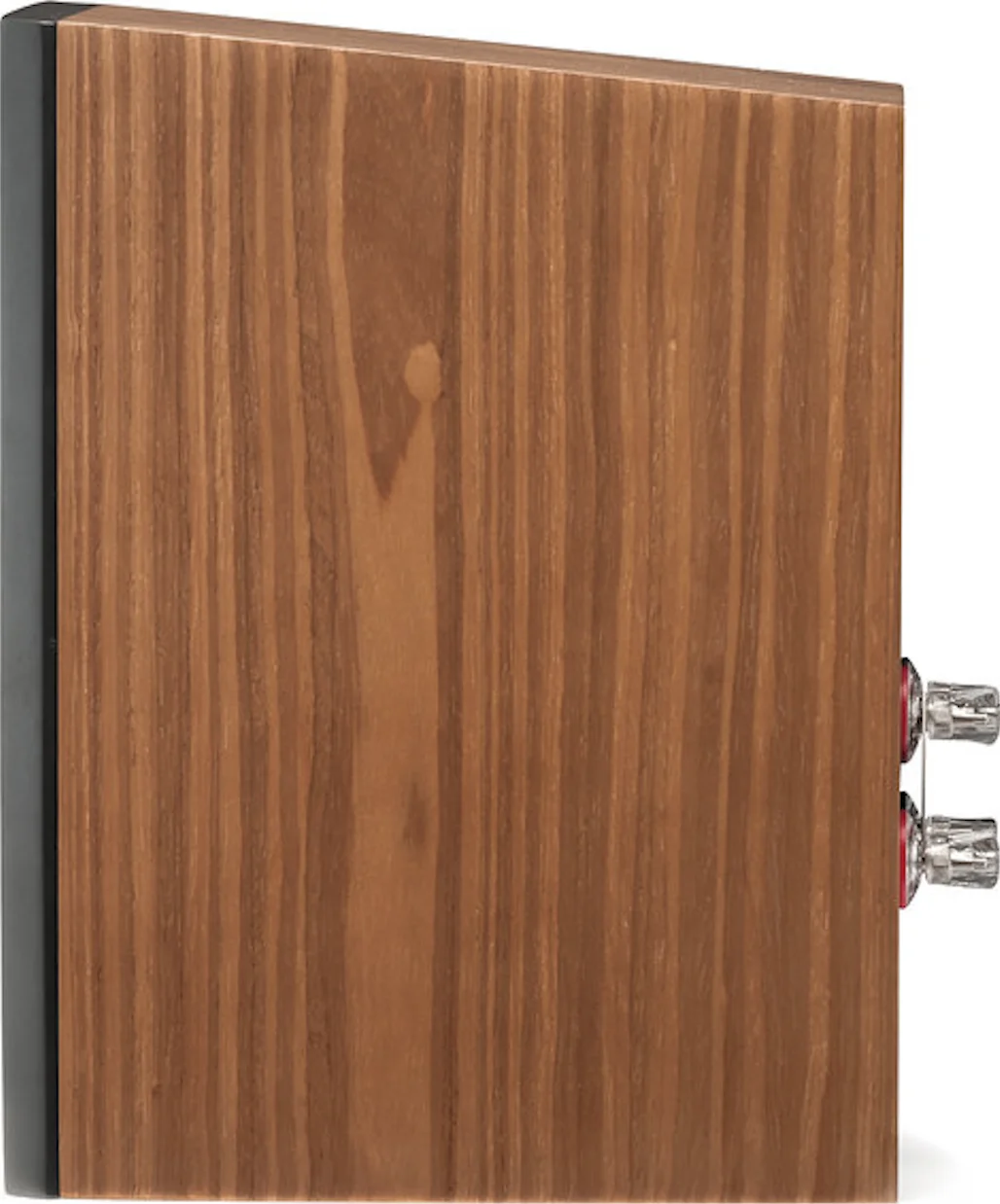

Motion XT B100
Performance — where it sits in the catalog
| Bass reach | Treble reach | Sensitivity | Easy load | |
|---|---|---|---|---|
| Motion XT B100 | 45 Hz | 25 kHz | 93 dB | 4 Ω |
| Median | 45 Hz | 25 kHz | 87 dB | 6 Ω |
How to read this chart
Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #249 of 470 bookshelf |
| Power | Passive |
| Height | 368 mm |
| Width | 203 mm |
| Depth | 318 mm |
| Footprint | 646 cm² |
| Space taken | 23.8 L |
| Weight | 9.3 kg |
| Enclosure | Bass reflex, rear port |
| Drivers | 1× tweeter (Folded Motion XT (AMT)), 1× 165 mm mid-bass (Nomex-reinforced Kevlar cone) |
| Crossover frequency | 2600 Hz |
| Frequency response | 45–25000 Hz (±3 dB) |
| Sensitivity | 93 dB |
| Impedance | 4 Ω |
| Recommended amp | 20–250 W |
| MAP (USD) | $1,598 / pair |
| Where to buy | Check availability ↗ |
| Manufacturer | martinlogan.com ↗ |
| Product page | Open product page ↗ |
