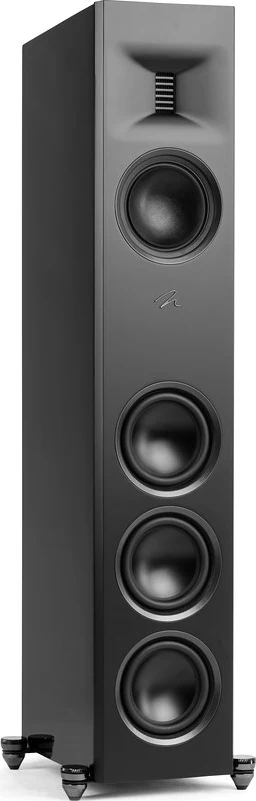

MartinLogan · Motion XT · Floorstander

Motion XT F100

Product description
A three-way Motion XT floorstander — the Folded Motion XT AMT tweeter with a 165 mm Nomex-reinforced Kevlar midrange over three 165 mm aluminium woofers, down-ported. Three woofers and the larger XT tweeter make it a genuinely full-range tower for a medium-to-large room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy load
Bass reachTreble reachSensitivityEasy load
Motion XT F10031 Hz25 kHz92 dB4 Ω
Median32 Hz30 kHz90 dB6 Ω
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe. Not shown: Cone area — the maker publishes no figure.

Units
TypeFloorstander
HiFi ladder position#466 of 648 floorstander
PowerPassive
Height1213 mm
Width318 mm
Depth343 mm
Footprint1091 cm²
Space taken132.3 L
Weight34.5 kg
EnclosureBass reflex, down-firing port
Drivers1× tweeter (Folded Motion XT (AMT)), 1× 165 mm midrange (Nomex-reinforced Kevlar cone), 3× 165 mm woofer (aluminium cone)
Crossover frequency280 / 2600 Hz
Frequency response31–25000 Hz (±3 dB)
Sensitivity92 dB
Impedance4 Ω
Recommended amp20–450 W
MAP (USD)$4,500 / pair
Where to buyCheck availability ↗
Manufacturermartinlogan.com ↗
Product pageOpen product page ↗
