Meridian Audio · DSP · Floorstander

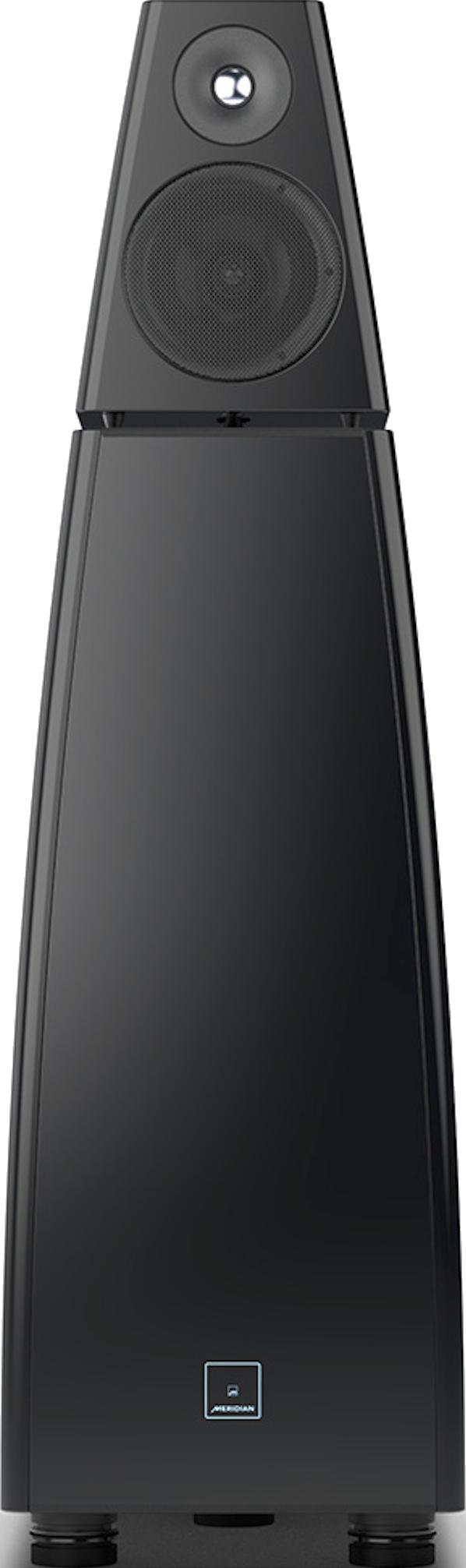

DSP9
$85,000 / pairCheck availability ↗
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description
A modern statement active loudspeaker from Meridian's Extreme Engineering Program: a 25 mm beryllium tweeter, 160 mm midrange and four 200 mm woofers, each with dedicated amplification for roughly 1,020 W per speaker, an onboard DAC and room-correcting DSP. Like all Meridian DSP models it takes a pure digital feed and processes it right up to each driver, reaching 119 dB from a sculpted cabinet. Sold as a pair.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #217 of 449 floorstander |
| Power | Active |
| Height | 1101 mm |
| Width | 392 mm |
| Depth | 511 mm |
| Weight | 68 kg |
| Enclosure | sealed |
| Drivers | 1× 25 mm tweeter (beryllium dome), 1× 160 mm midrange (cone), 4× 200 mm woofer (polypropylene cone) |
| Frequency response | 20–40000 Hz (±3 dB) |
| MAP (USD) | $85,000 / pair |
| Amplification (per driver) | — |
| Total amp power | 1020 W |
| Max SPL @ 1 m | 119 dB |
| Hi-res audio | 24 bit / 384 kHz |
| Wired inputs | Ethernet, Coaxial S/PDIF, Optical (Toslink), USB Audio, XLR balanced, RCA |
| Streaming / wireless | Bluetooth |
| Outputs | — |
| Room correction | Custom DSP / app |
| Primary + secondary pair | — |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | meridian-audio.com ↗ |
| Product page | Open product page ↗ |
