Mission · ZX · Floorstander

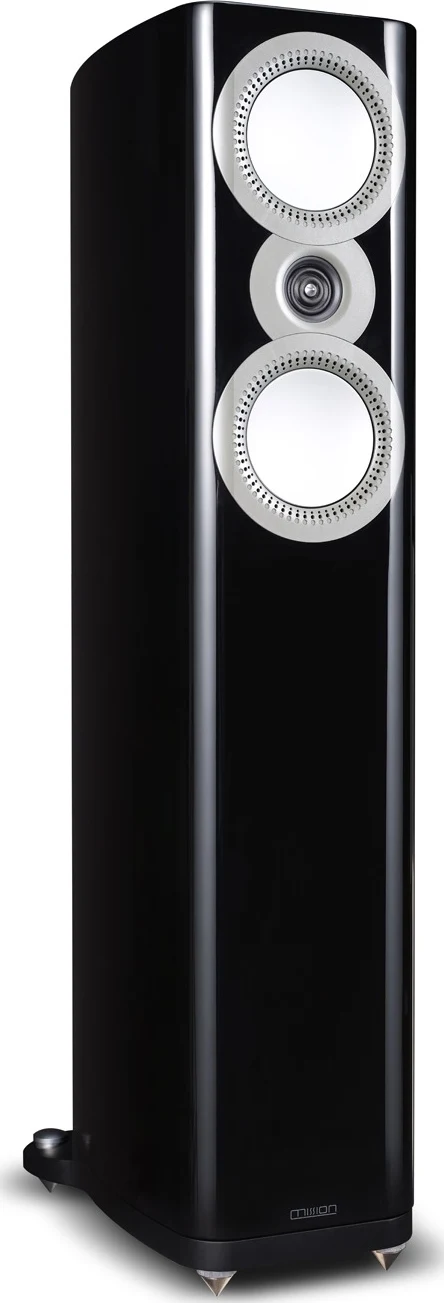

ZX-3

Product description
A two-way floorstander from Mission's flagship ZX range — aluminium DiaDrive mid-bass drivers and a 38 mm ring-dome tweeter in Inverted Driver Geometry, vented through a rear slot port. The entry ZX tower: a slim, easy-driving 90 dB cabinet for a medium room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
ZX-342 Hz24 kHz90 dB4 Ω144 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#312 of 648 floorstander
PowerPassive
Height1101 mm
Width240 mm
Depth362 mm
Footprint981 cm²
Space taken108 L
Weight20.4 kg
EnclosureBass reflex, rear port
Drivers1× 130 mm mid-bass (aluminium), 1× 38 mm tweeter (ring dome)
Crossover frequency2400 Hz
Frequency response42–24000 Hz (±3 dB)
Sensitivity90 dB
Impedance4 Ω (min 3.4 Ω)
Recommended amp25–150 W
MAP (USD)$1,699 / pair
Where to buyCheck availability ↗
Manufacturermission.co.uk ↗
Product pageOpen product page ↗
