Mission · ZX · Floorstander

ZX-4

Product description

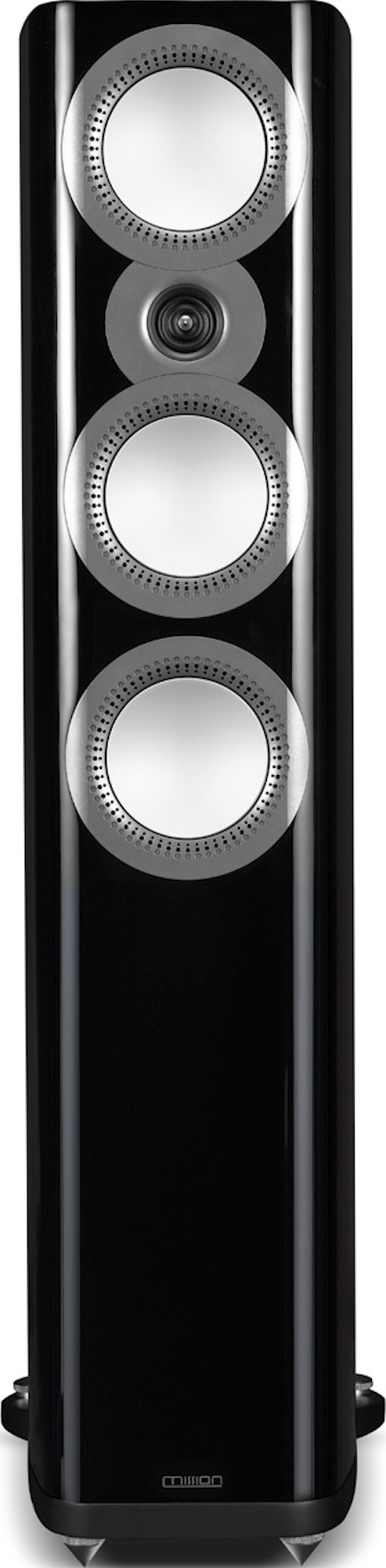

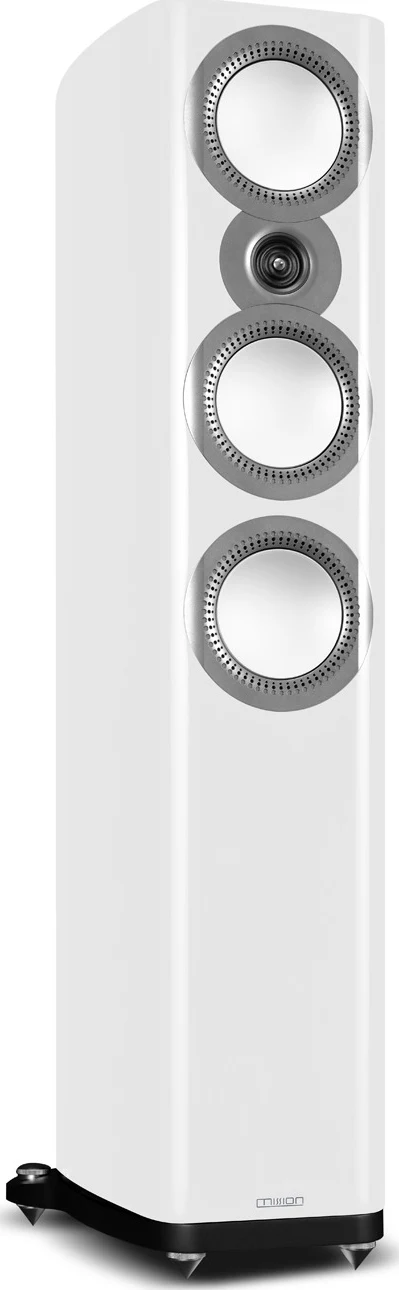

A three-way ZX floorstander — twin 130 mm aluminium DiaDrive woofers with a dedicated 130 mm midrange and the 38 mm ring-dome tweeter in Inverted Driver Geometry, rear slot-ported. The dedicated midrange cleans up voices over the two-way ZX-3 in the same slim footprint.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
ZX-440 Hz24 kHz90 dB4 Ω410 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#367 of 648 floorstander
PowerPassive
Height1136 mm
Width240 mm
Depth362 mm
Footprint1014 cm²
Space taken115.1 L
Weight24.6 kg
EnclosureBass reflex, rear port
Drivers2× 130 mm woofer (aluminium), 1× 130 mm midrange (aluminium), 1× 38 mm tweeter (ring dome)
Crossover frequency530 / 2700 Hz
Frequency response40–24000 Hz (±3 dB)
Sensitivity90 dB
Impedance4 Ω (min 3.4 Ω)
Recommended amp25–150 W
MAP (USD)$1,899 / pair
Where to buyCheck availability ↗
Manufacturermission.co.uk ↗
Product pageOpen product page ↗
