Mission · ZX · Floorstander

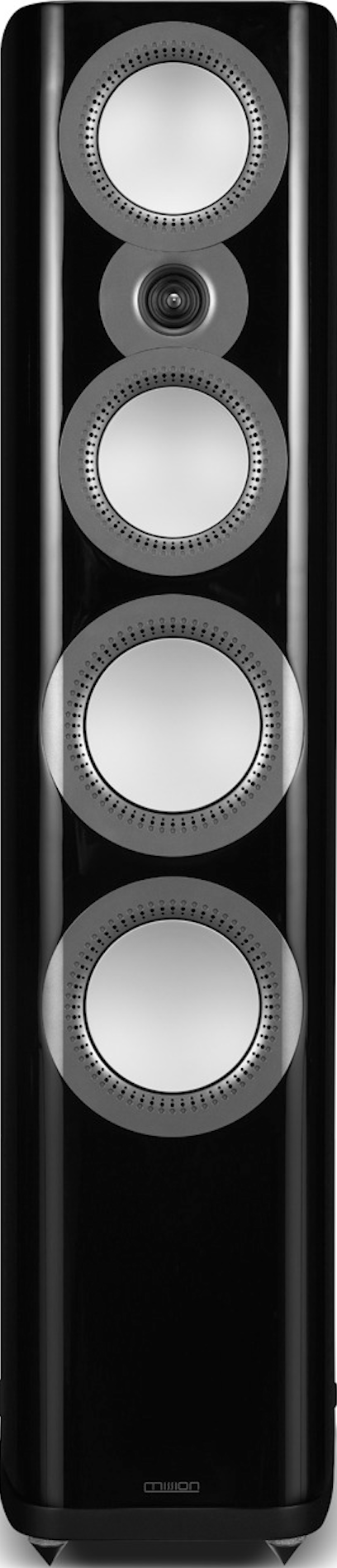

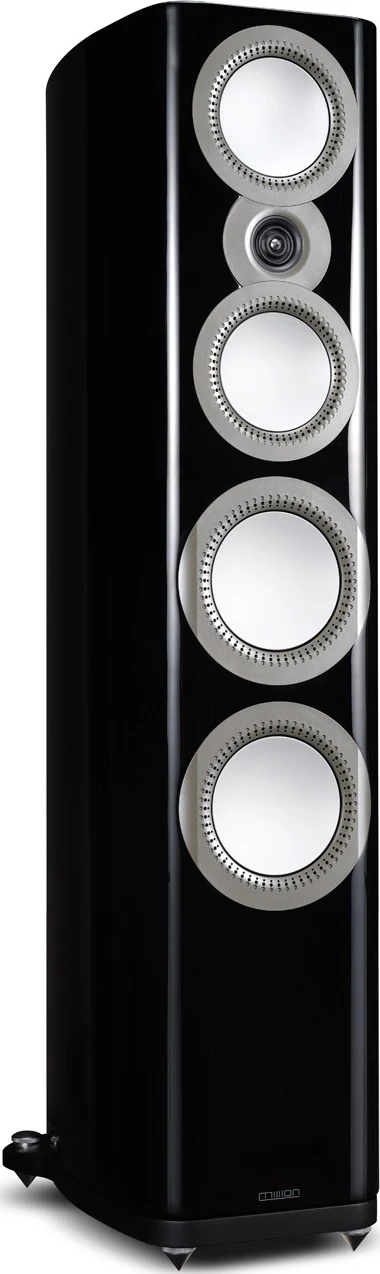

ZX-5

Product description
The flagship ZX floorstander — twin 165 mm aluminium DiaDrive woofers and twin 130 mm midranges around the 38 mm ring-dome tweeter, rear slot-ported. The larger woofers and doubled midrange reach 36 Hz at 91 dB, making it the full-range ZX for a medium-to-large room.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
ZX-536 Hz24 kHz91 dB4 Ω704 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#483 of 648 floorstander
PowerPassive
Height1239 mm
Width265 mm
Depth412 mm
Footprint1092 cm²
Space taken135.3 L
Weight31.2 kg
EnclosureBass reflex, rear port
Drivers2× 165 mm woofer (aluminium), 2× 130 mm midrange (aluminium), 1× 38 mm tweeter (ring dome)
Crossover frequency570 / 2500 Hz
Frequency response36–24000 Hz (±3 dB)
Sensitivity91 dB
Impedance4 Ω (min 3.4 Ω)
Recommended amp30–200 W
MAP (USD)$1,999 / pair
Where to buyCheck availability ↗
Manufacturermission.co.uk ↗
Product pageOpen product page ↗

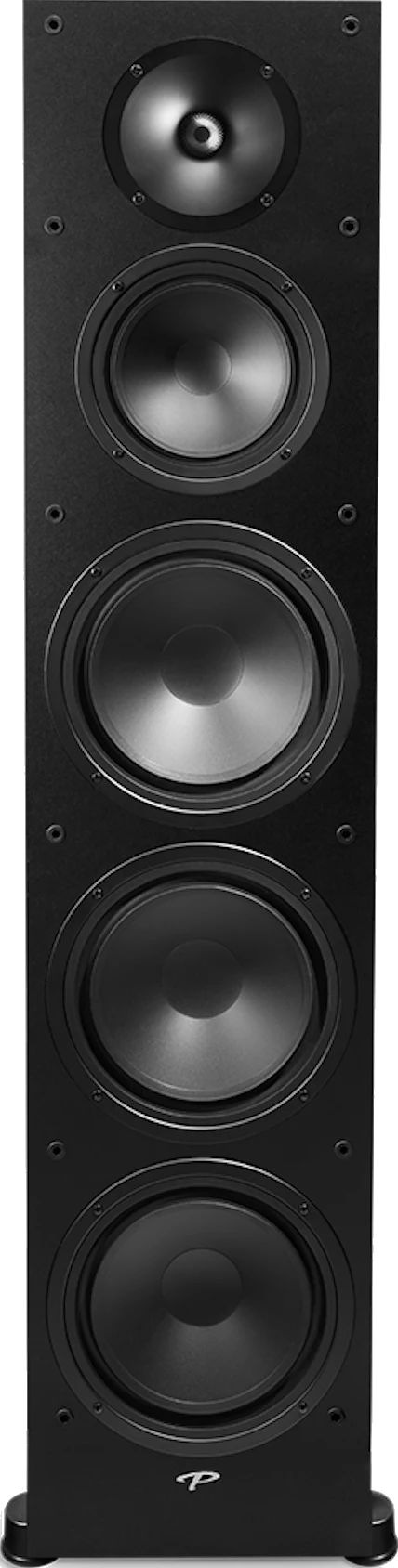

Suggested TrueScale comparisons

Tap any speaker to see it beside this one at true, real-world scale.
