PMC · SE Active · Floorstander
BB5 XBD-A SE
TrueScaleLine this speaker up next to another at its real-world size.TrueSpecsPut this speaker's full spec sheet beside up to three others.HiFi LadderJump to this speaker's spot on the HiFi Ladder, ranked by size.
Product description

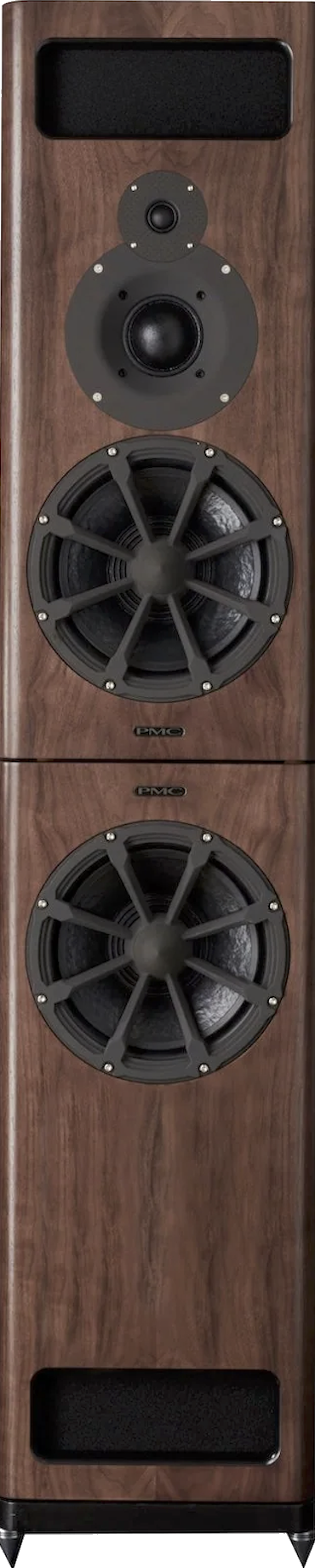

PMC's ultimate active system: the BB5 head on an XBD module for two 380 mm Radial woofers, with 2,400 W of on-board amplification (2× 900 W bass, 300 W mid, 300 W treble), a 75 mm fabric-dome midrange and 34 mm PMC34 tweeter on twin 4 m ATLs. A 2.08 m, 136 kg floor-standing reference to 17 Hz.
Suggested TrueScale comparisons
Tap any speaker to see it beside this one at true, real-world scale.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #340 of 340 floorstander |
| Power | Active |
| Height | 2080 mm |
| Width | 432 mm |
| Depth | 790 mm |
| Weight | 136 kg |
| Enclosure | transmission-line |
| Drivers | 1× 34 mm tweeter (soft dome), 1× 75 mm midrange (fabric dome), 2× 380 mm woofer (Radial piston cone) |
| Crossover frequency | 380 / 3800 Hz |
| Frequency response | 17–25000 Hz |
| MAP (USD) | $199,999 / pair |
| Amplification (per driver) | tweeter 300 W · midrange 300 W · woofer 1800 W |
| Total amp power | 2400 W |
| Max SPL @ 1 m | — |
| Hi-res audio | — |
| Wired inputs | XLR balanced |
| Streaming / wireless | — |
| Outputs | — |
| Room correction | — |
| Primary + secondary pair | — |
| Wireless inter-speaker link | — |
| Latency | — |
| Idle power | — |
| Max consumption | — |
| Where to buy | Check availability ↗ |
| Manufacturer | pmc-speakers.com ↗ |
| Product page | Open product page ↗ |
