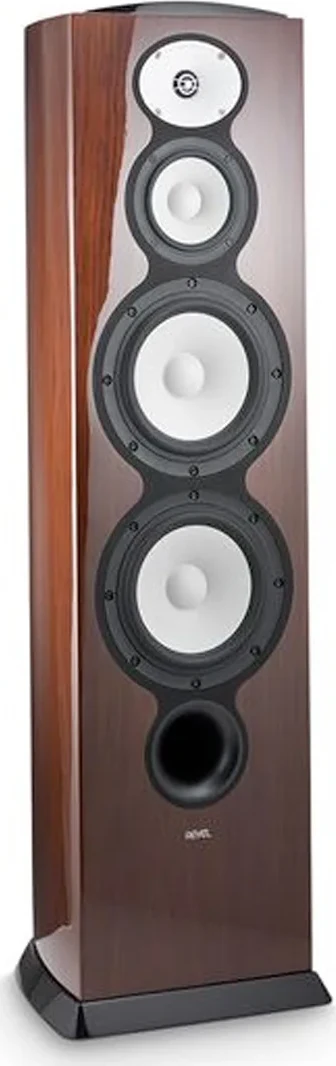

Revel · PerformaBe · Floorstander

F228Be

Product description
A three-way PerformaBe floorstander developed through Harman's measurement-driven research — a beryllium tweeter, Deep Ceramic Composite midrange and twin 8-inch woofers reaching 33 Hz. The full-range PerformaBe for a medium-to-large room, below the flagship F328Be.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
F228Be33 Hz40 kHz90 dB8 Ω785 cm²
Median32 Hz30 kHz90 dB6 Ω654 cm²
How to read this chart

Each axis spans the range the 648 floorstanders in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 600 passive floorstanders — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeFloorstander
HiFi ladder position#435 of 648 floorstander
PowerPassive
Height1182 mm
Width342 mm
Depth375 mm
Footprint1283 cm²
Space taken151.6 L
Weight37.2 kg
EnclosureBass reflex, front port
Drivers2× 203 mm woofer (Deep Ceramic Composite (DCC) aluminium cone), 1× 130 mm midrange (Deep Ceramic Composite (DCC) aluminium cone), 1× 25 mm tweeter (beryllium dome (acoustic lens waveguide))
Frequency response33–40000 Hz
Sensitivity90 dB
Impedance8 Ω
Recommended amp50–350 W
MAP (USD)$11,000 / pair
Where to buyCheck availability ↗
Manufacturerrevelspeakers.com ↗
Product pageOpen product page ↗
