Revel · PerformaBe · Bookshelf

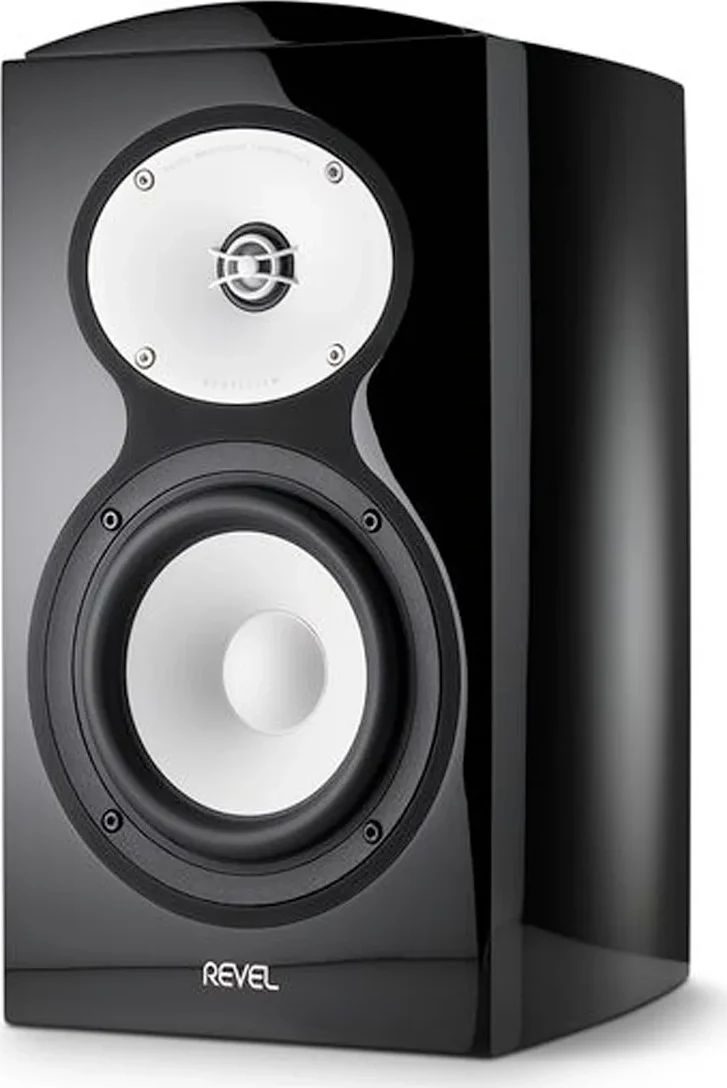

M126Be

Product description
The stand-mount of Revel's higher-tier PerformaBe line, developed through Harman's measurement-driven, blind-listening research. A beryllium tweeter and 165 mm Deep Ceramic Composite mid-bass deliver reference-grade neutrality in a compact cabinet — a high-end bookshelf for a small-to-mid room, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
M126Be46 Hz40 kHz86 dB8 Ω219 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#296 of 470 bookshelf
PowerPassive
Height386 mm
Width211 mm
Depth262 mm
Footprint553 cm²
Space taken21.3 L
Weight9.97 kg
EnclosureBass reflex, rear port
Drivers1× 165 mm mid-bass (Deep Ceramic Composite (DCC) aluminium cone), 1× 25 mm tweeter (beryllium dome (acoustic lens waveguide))
Crossover frequency1700 Hz
Frequency response46–40000 Hz
Sensitivity86 dB
Impedance8 Ω
Recommended amp50–150 W
MAP (USD)$4,400 / pair
Where to buyCheck availability ↗
Manufacturerrevelspeakers.com ↗
Product pageOpen product page ↗
