Revel · Performa4 · Bookshelf

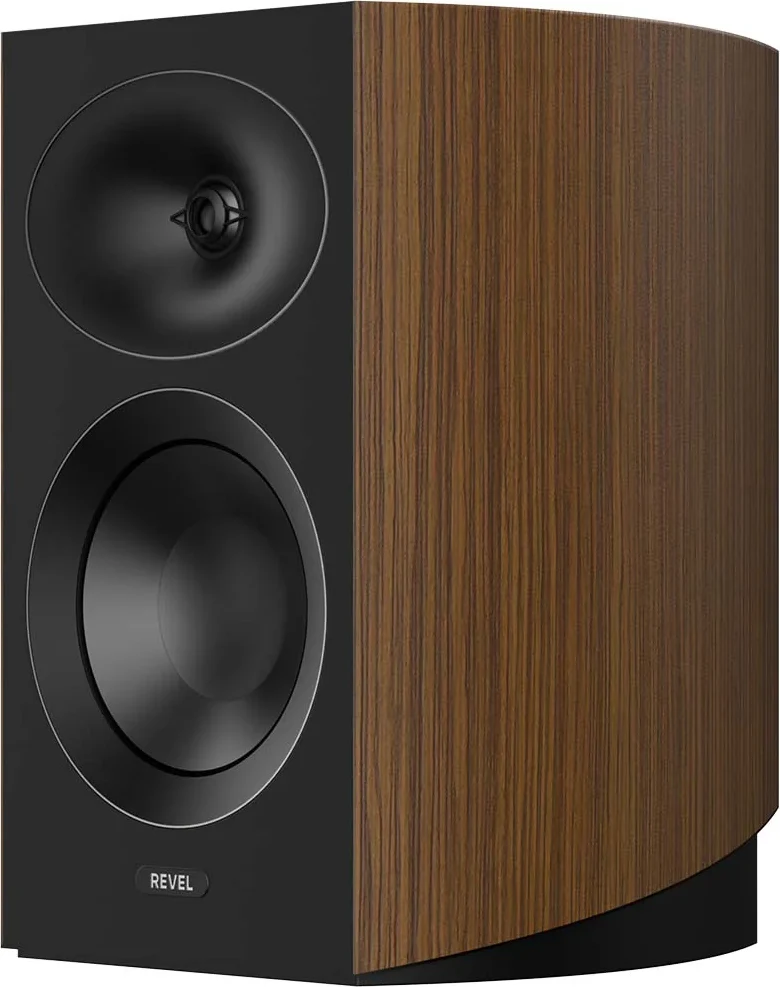

M145

Product description
The compact two-way stand-mount of Revel's Performa4 line, developed through Harman's measurement-driven, blind-listening research. A DCC ceramic-composite tweeter and 130 mm mid-bass give a neutral, well-behaved response for a small room or near-field, on stands.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
M14554 Hz40 kHz85 dB6 Ω138 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#80 of 470 bookshelf
PowerPassive
Height294 mm
Width200 mm
Depth245 mm
Footprint456 cm²
Space taken13.4 L
Weight6.8 kg
EnclosureBass reflex, rear port
Drivers1× 130 mm mid-bass (Micro Ceramic Composite (MCC) cone), 1× 25 mm tweeter (ceramic composite (DCC) dome)
Frequency response54–40000 Hz (±6 dB)
Sensitivity85 dB
Impedance6 Ω
Recommended amp15–150 W
MAP (USD)$1,999 / pair
Where to buyCheck availability ↗
Manufacturerrevelspeakers.com ↗
Product pageOpen product page ↗
