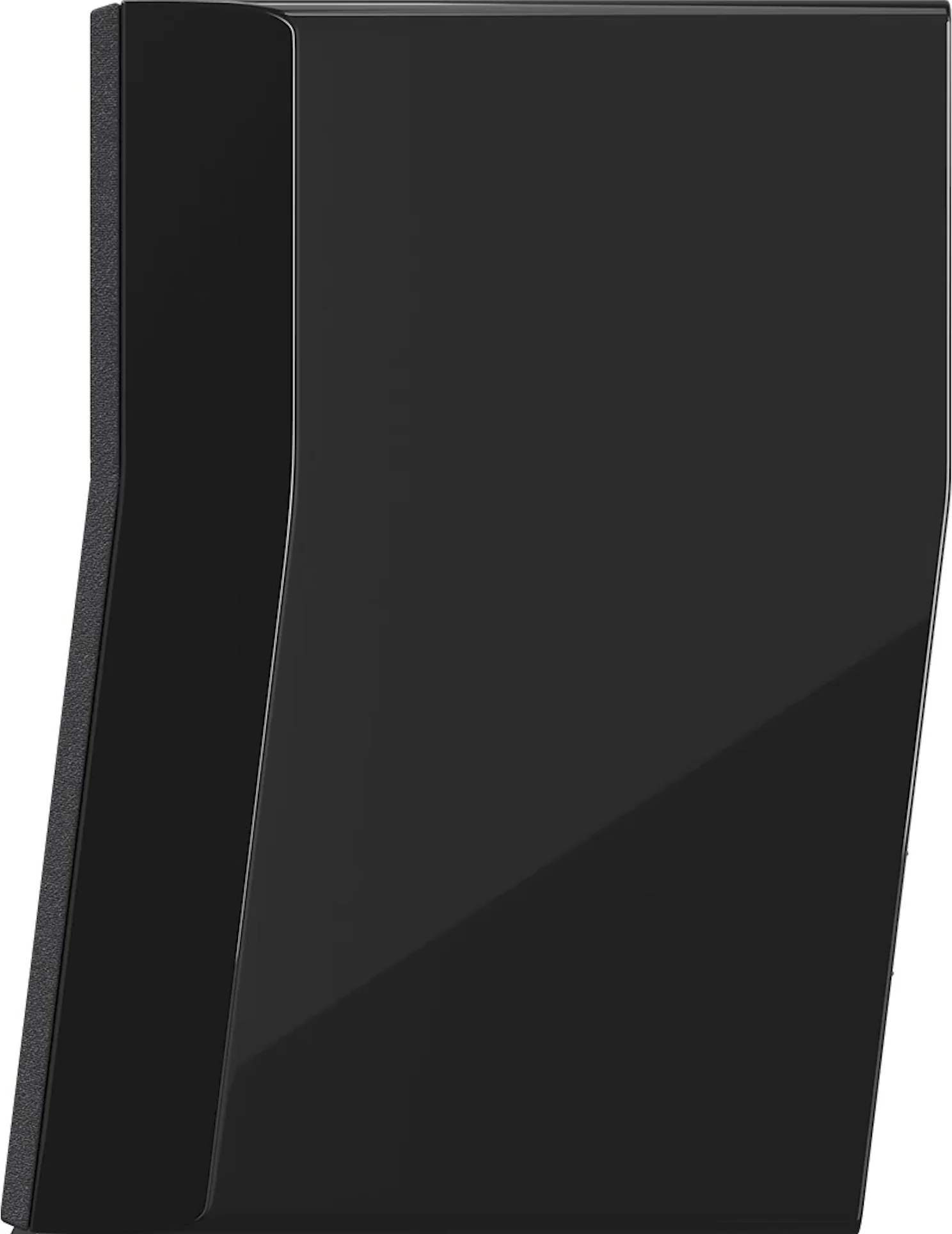

32/ 123This speaker ships with a side photo, so you can compare its true depth in the Profile view of the comparator.
Suggested TrueScale comparisons
Picked by type, power, MAP, dimensions and frequency response.
SVS · Ultra Evolution · Bookshelf
Ultra Evolution Bookshelf
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description

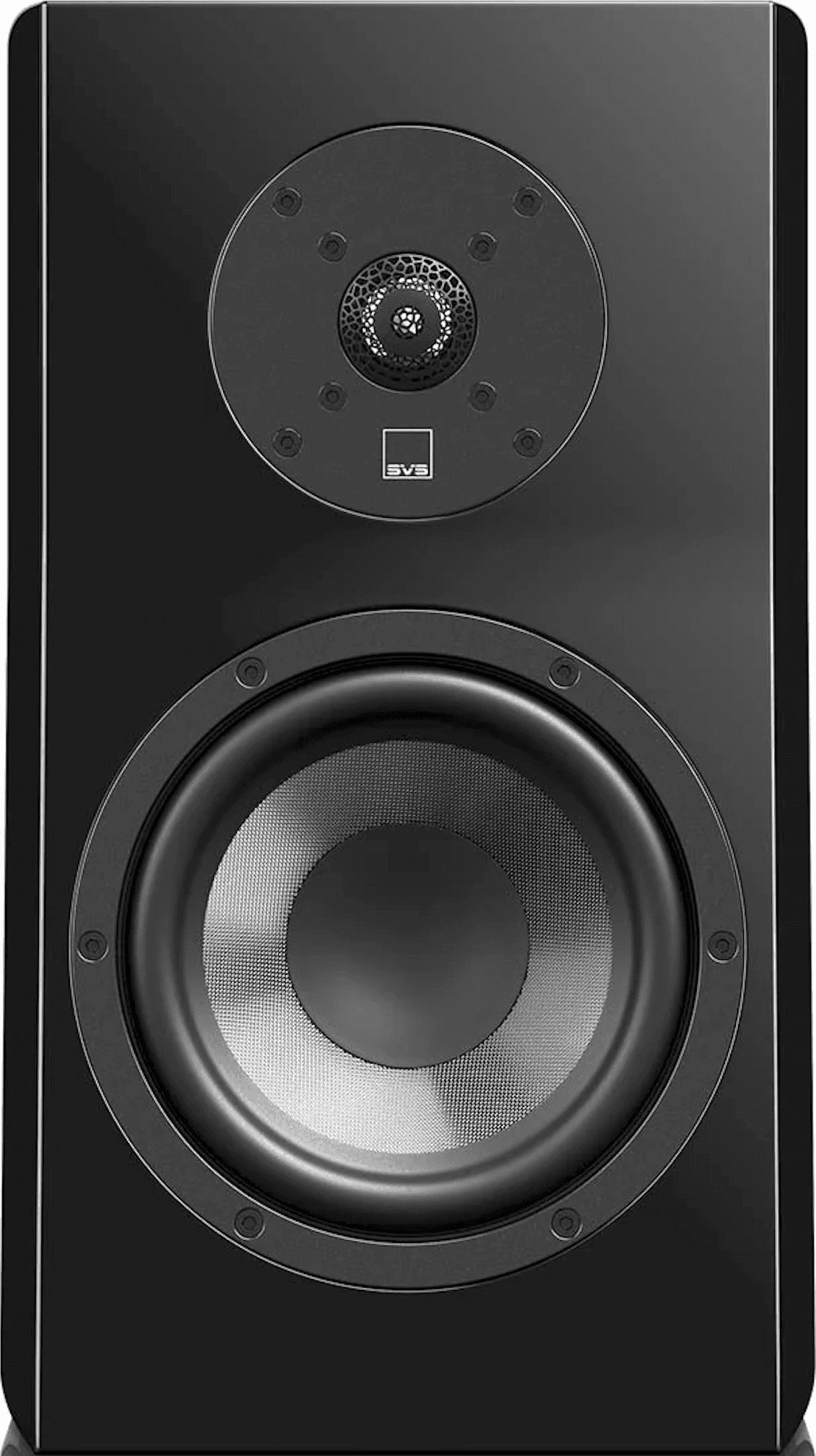

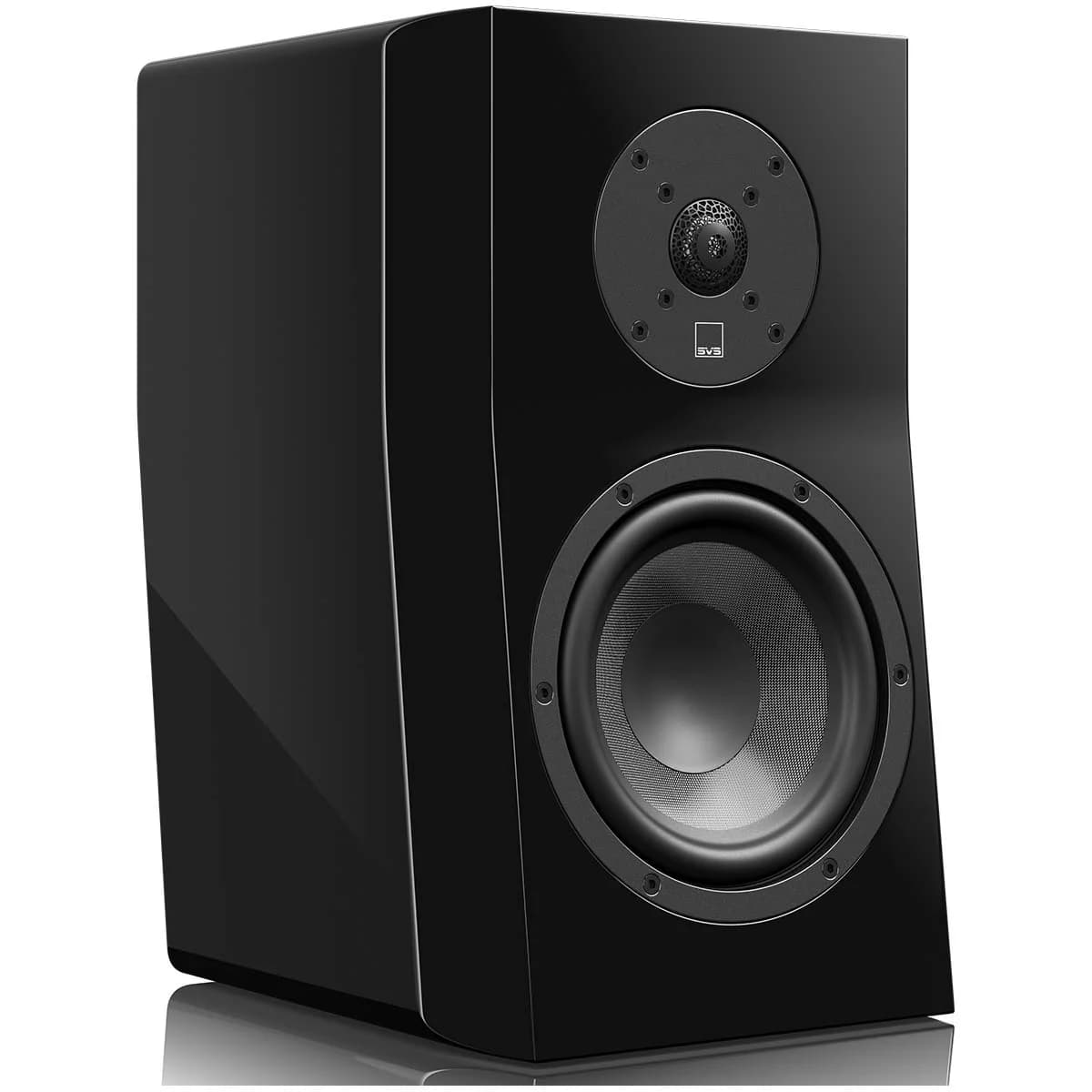

Two-way bookshelf in SVS's Ultra Evolution line — a 25 mm diamond-coated aluminium-dome tweeter with FEA-optimized diffuser above a 165 mm glass-fibre composite mid-bass driver. Reaches 50 Hz with extended top-end to 40 kHz at 87 dB sensitivity on a 4 Ω load, 20-150 W amp window.
Units
| Type | Bookshelf |
|---|---|
| HiFi ladder position | #32 of 123 bookshelf |
| Power | Passive |
| Height | 325 mm |
| Width | 182 mm |
| Depth | 285 mm |
| Weight | 8.5 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× 25 mm tweeter (diamond-coated aluminium-dome), 1× 165 mm mid-bass (glass-fibre composite cone) |
| Frequency response | 50–40000 Hz (±3 dB) |
| Sensitivity | 87 dB |
| Impedance | 4 Ω |
| Power handling | 150 W |
| Recommended amp | 20–150 W |
| MAP (USD) | $599.99 each |
| Manufacturer | svsound.com ↗ |
| Product page | Open product page ↗ |
