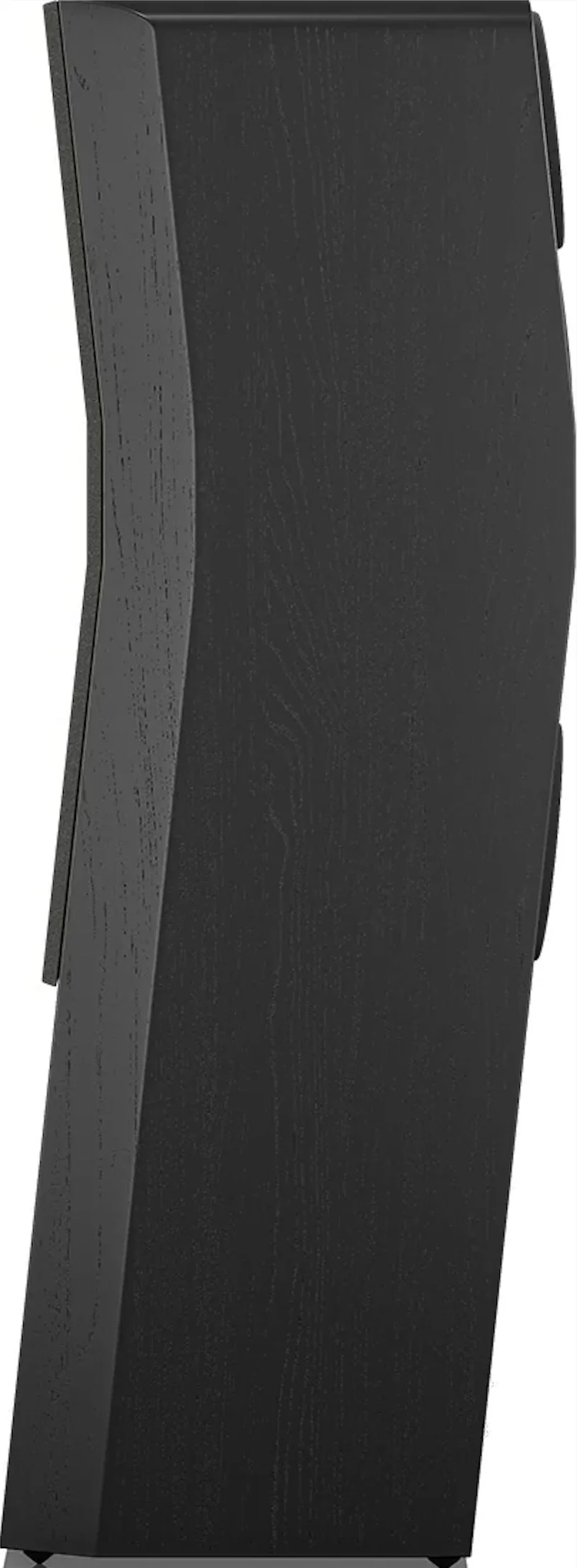

113/ 165This speaker ships with a side photo, so you can compare its true depth in the Profile view of the comparator.
Suggested TrueScale comparisons
Picked by type, power, MAP, dimensions and frequency response.
SVS · Ultra Evolution · Floorstander
Ultra Evolution Titan
TrueScale
Compare speakers at true scale.
TrueSpecs
Compare technical specifications (up to 4 speakers).
Product description
Three-way floorstander in SVS's Ultra Evolution line — a 25 mm diamond-coated aluminium-dome tweeter at the center, four 114 mm glass-fibre composite midranges arranged in concentric rotational symmetry around it, and four 165 mm glass-fibre composite woofers in a Force-Balanced Array. 1.6 kHz tweeter-to-mid and 200 Hz mid-to-woofer crossovers; reaches 27 Hz with 88 dB sensitivity on a 4 Ω load, 20-300 W amp window.
Units
| Type | Floorstander |
|---|---|
| HiFi ladder position | #113 of 165 floorstander |
| Power | Passive |
| Height | 1177 mm |
| Width | 242 mm |
| Depth | 437 mm |
| Weight | 29.8 kg |
| Enclosure | bass-reflex-rear |
| Drivers | 1× 25 mm tweeter (diamond-coated aluminium-dome), 4× 114 mm midrange (glass-fibre composite cone), 4× 165 mm woofer (glass-fibre composite cone) |
| Frequency response | 27–40000 Hz (±3 dB) |
| Sensitivity | 88 dB |
| Impedance | 4 Ω |
| Power handling | 300 W |
| Recommended amp | 20–300 W |
| MAP (USD) | $1,999.99 each |
| Manufacturer | svsound.com ↗ |
| Product page | Open product page ↗ |
