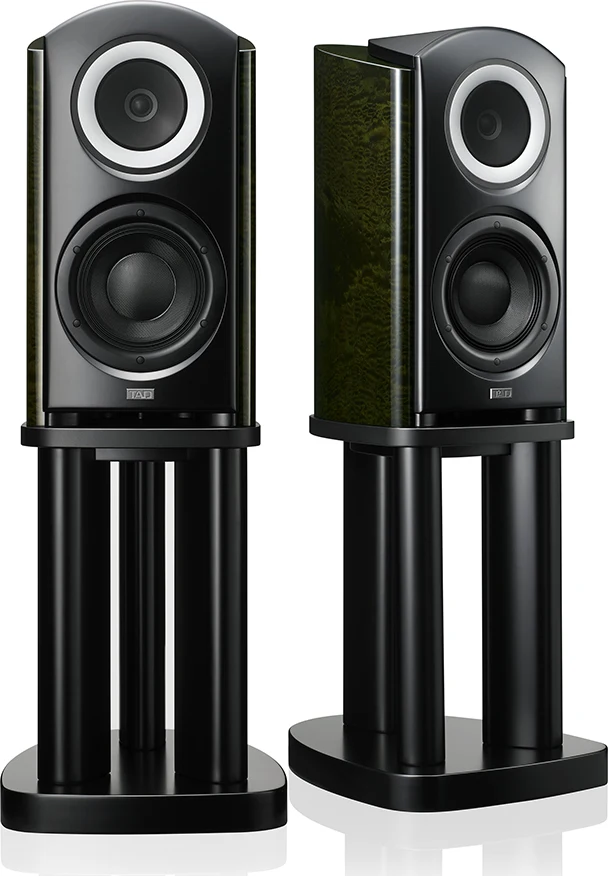

Compact Reference One TX

Product description
A three-way stand-mount from TAD's top Reference line — a 35 mm beryllium tweeter concentric within a 160 mm beryllium midrange (the CST driver) plus a 200 mm aramid woofer, reaching to 100 kHz. Beryllium in both the tweeter and midrange puts it in a rarefied tier, a reference monitor for a dedicated room, hand-assembled in Japan.

Performance — where it sits in the catalog

BassTrebleSensitivityEasy loadCone area
Bass reachTreble reachSensitivityEasy loadCone area
Compact Reference One TX32 Hz100 kHz86 dB4 Ω525 cm²
Median45 Hz25 kHz87 dB6 Ω219 cm²
How to read this chart

Each axis spans the range the 470 bookshelves in the catalog actually cover, so equal distance means equal difference — and for cone area and the two frequencies, which are read as ratios, equal distance means equal ratio. The dashed inner ring is where the scale starts, not zero. Ranked within a class because a bookshelf measured against floorstanders is feeble on every axis for the single reason that it is a bookshelf. Cone area is summed from the drive units — no maker publishes it. Bass and treble reach are quoted to different tolerances and only 56% of the catalog says which, so read those two axes as approximate. The grey outline is the median of this speaker's own class, the 385 passive bookshelves — same type, same side of the active/passive line, which matters because the two halves are not the same product: the median active bookshelf carries 155 cm² of cone against the passive median's 219. Median rather than mean, because a handful of very large cabinets would drag a mean above most of the class it claims to describe.

Units
TypeBookshelf
HiFi ladder position#441 of 470 bookshelf
PowerPassive
Height628 mm
Width341 mm
Depth446 mm
Footprint1521 cm²
Space taken95.5 L
Weight46 kg
EnclosureBass reflex, rear port
Drivers1× 200 mm woofer (aramid (TLCC)), 1× 160 mm midrange (beryllium), 1× 35 mm tweeter (beryllium)
Crossover frequency250 / 2000 Hz
Frequency response32–100000 Hz
Sensitivity86 dB
Impedance4 Ω
Power handling200 W
MAP (USD)$87,500 / pair
